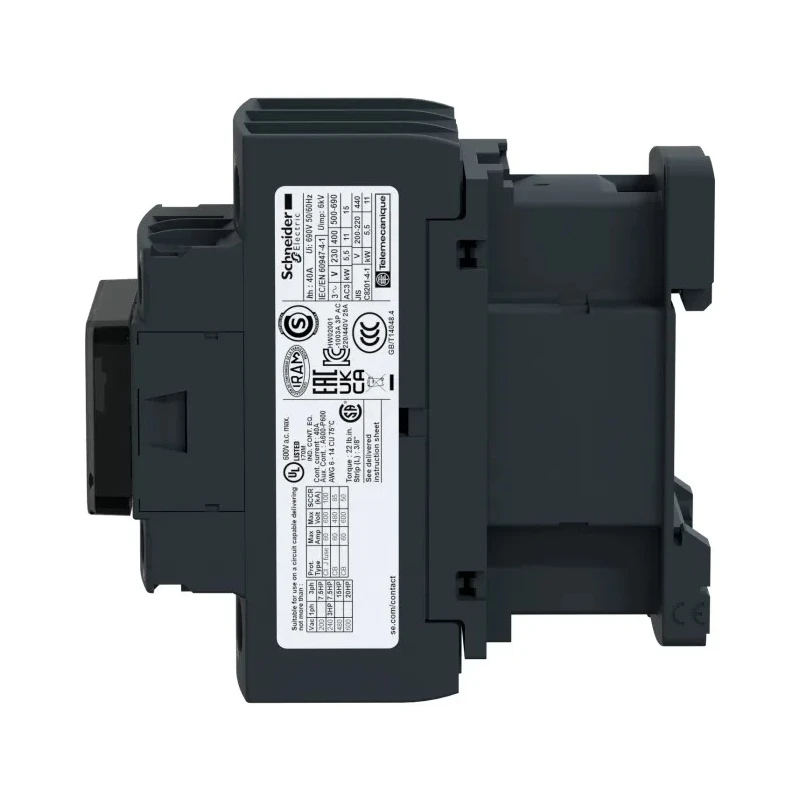

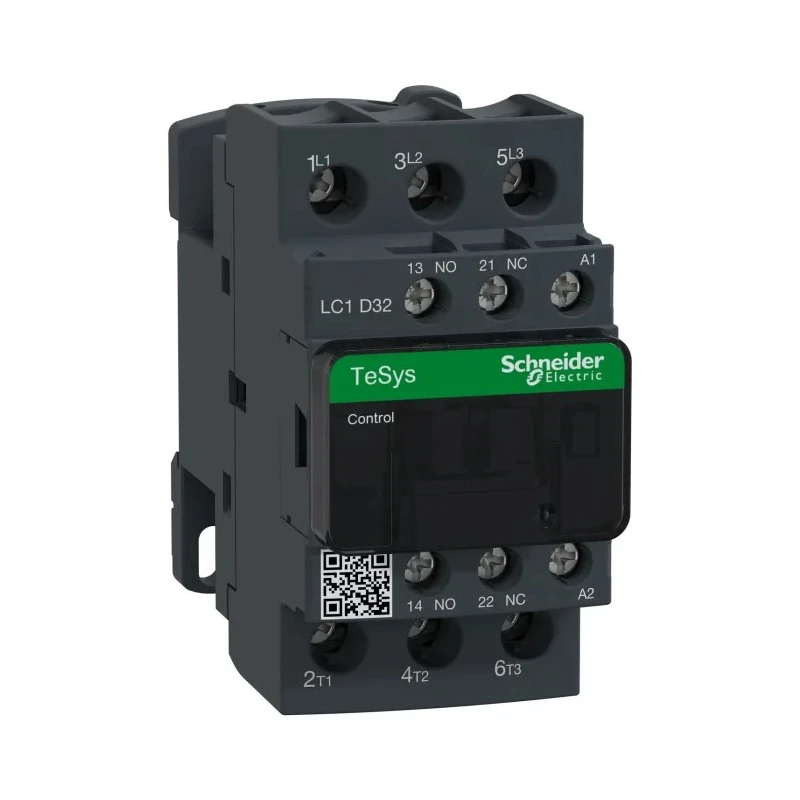

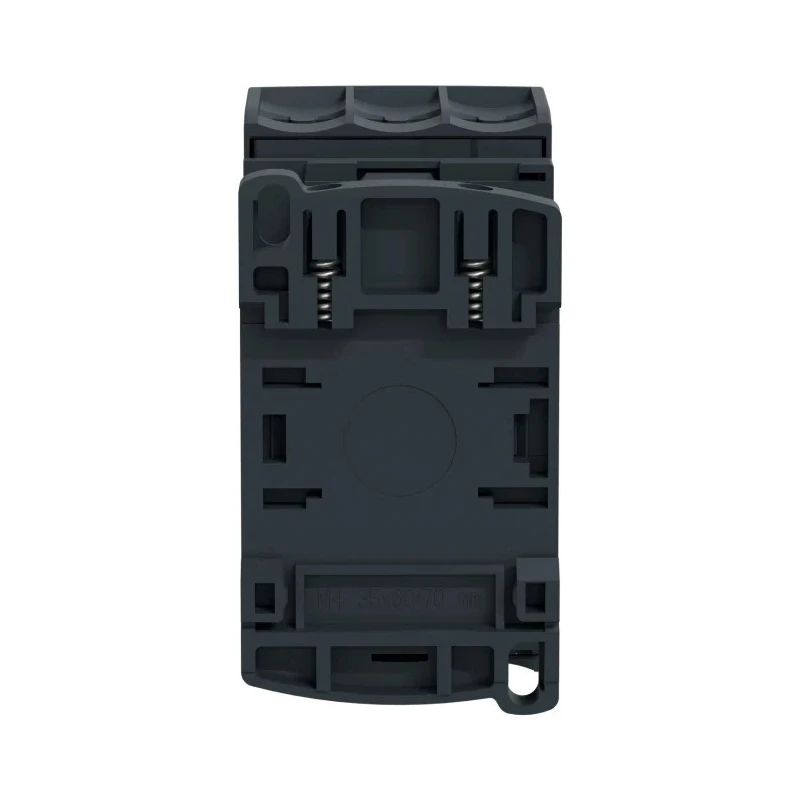

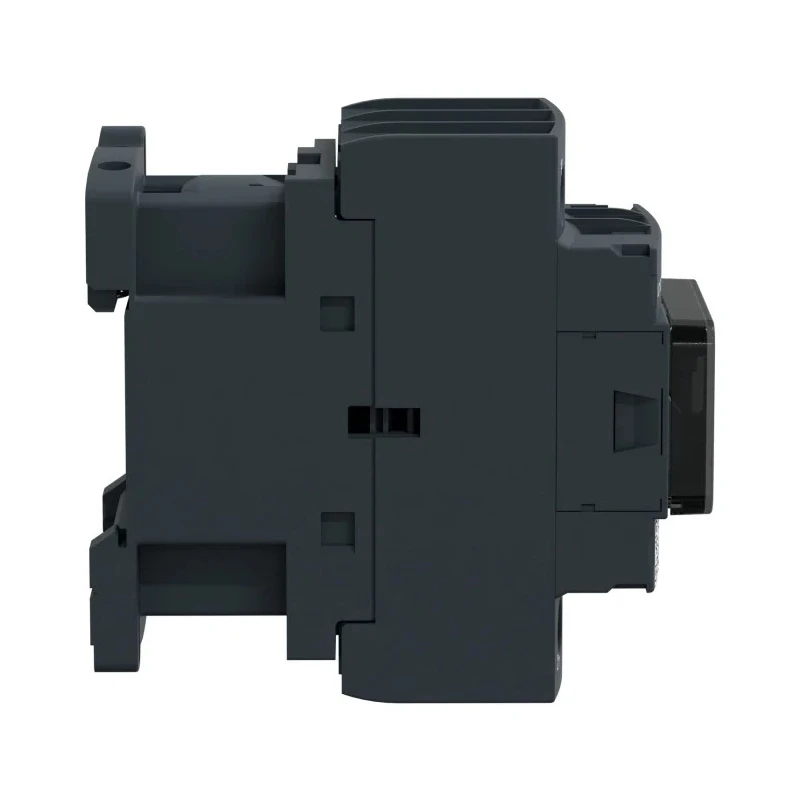

Schneider Electric 3-Pole Contactor 32A, 15 kW, 230V AC Coil, 690V AC Contact Voltage LC1D
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, RoHS, UL, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| CONTACTOR 15KW 240V COILBrand | Telemecanique |
| WEG CWB Contactor, 230V ac Coil, 3-Pole, 32 A, 15 kW 230V ac, 3 NO, 690V acBrand | WEG |
Key Features
- Operates at a coil voltage of 230V AC and contact voltage of 690V AC.
- Supports a power rating of up to 15 kW for 230V AC operations.
- Features 3 poles with 3 normally open main contacts.
- Includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed.
- Compact DIN rail mount design with dimensions 85mm (L) x 45mm (W) x 92mm (D).
- Suitable for motor control and resistive load applications in industrial environments.
- Capable of operating in extreme temperatures from -40°C to +60°C.
- Terminals are of screw type ensuring secure electrical connections.
Product Description
Schneider Electric LC1D32P7 is a 3-pole contactor engineered for efficient motor control and resistive load applications. It features a 230V AC coil voltage and is capable of handling a contact current of 32A, making it suitable for controlling motors and resistive loads up to 15 kW at 230V AC. The contactor is designed with 3 normally open main contacts and 2 auxiliary contacts (1 normally open and 1 normally closed), enhancing its control circuit flexibility.
The compact device mounts easily on DIN rails, with dimensions of 85mm length, 45mm width, and 92mm depth, enabling space-saving configurations in electrical panels. Its screw-type terminals provide reliable and secure wiring connections. This contactor is built to operate efficiently in harsh conditions, with a wide operating temperature range from -40°C to +60°C, supporting industrial and commercial applications.
With compliance to key international standards such as CCC, CSA, RoHS, UL, EAC, and IEC, this product ensures safety and reliability. Manufactured in France, it is part of Schneider Electric's LC1D series known for durability and advanced motor control solutions. Ideal for automation, industrial motor control, and resistive load handling, this contactor meets high-performance and sustainability standards.
Designed for motor control and resistive load applications. Capable of handling 32A contact current and 15 kW power rating at 230V AC. Features 3 normally open poles for main contacts. Includes 2 auxiliary contacts: 1 normally open, 1 normally closed.
Compact DIN rail mount design for space efficiency. Screw-type terminals ensure secure electrical connections. Wide operating temperature range from -40°C to +60°C for harsh environments. Complies with multiple international standards for safety and quality.
Manufactured in France with high-quality build standards.
Use cases include industrial automation motor control panels, resistive load switching, and integration in commercial electrical installations requiring reliable, durable contactors. This robust device facilitates safe and efficient operations across various electrical control applications.
Explore Schneider Electric’s Contactor range for scalable and efficient motor control components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a power rating of up to 15 kW for 230V AC operations.
It is capable of handling a contact current of 32A.
The dimensions are 85mm in length, 45mm in width, and 92mm in depth.
This unit features screw-type terminals, ensuring secure electrical connections.
The coil voltage is 230V AC.
The maximum contact voltage is 690V AC.
It features 3 poles with 3 normally open main contacts.
It includes 2 auxiliary contacts, configured as 1 normally open and 1 normally closed.
This model operates efficiently in temperatures ranging from -40°C to +60°C.
It complies with several international standards including CCC, CSA, RoHS, UL, EAC, and IEC.
It is designed for compact DIN rail mounting, facilitating space-efficient configurations.
This contactor is suitable for motor control and resistive load applications in industrial environments.
