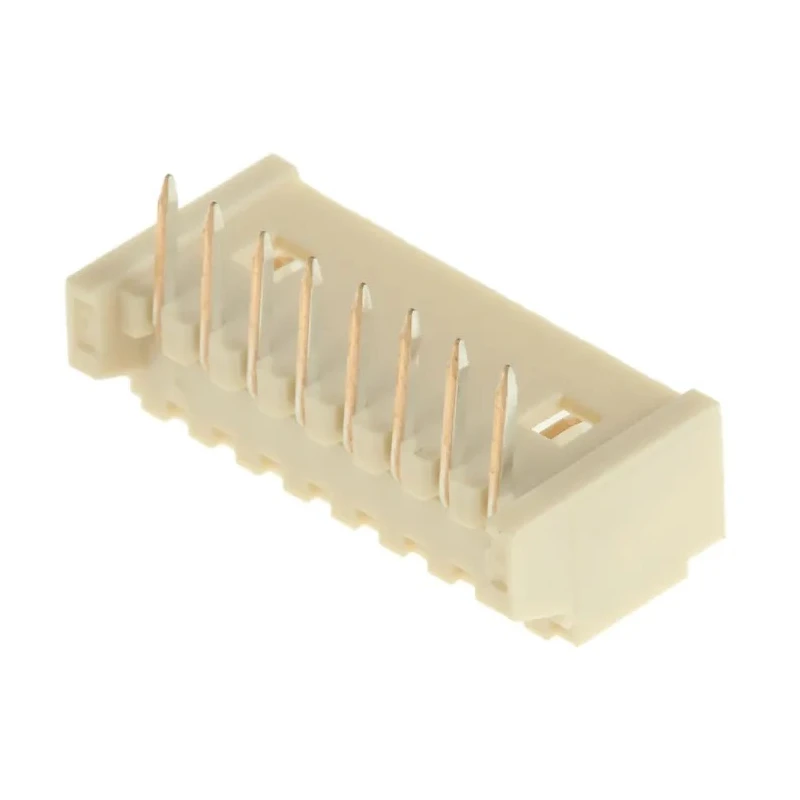

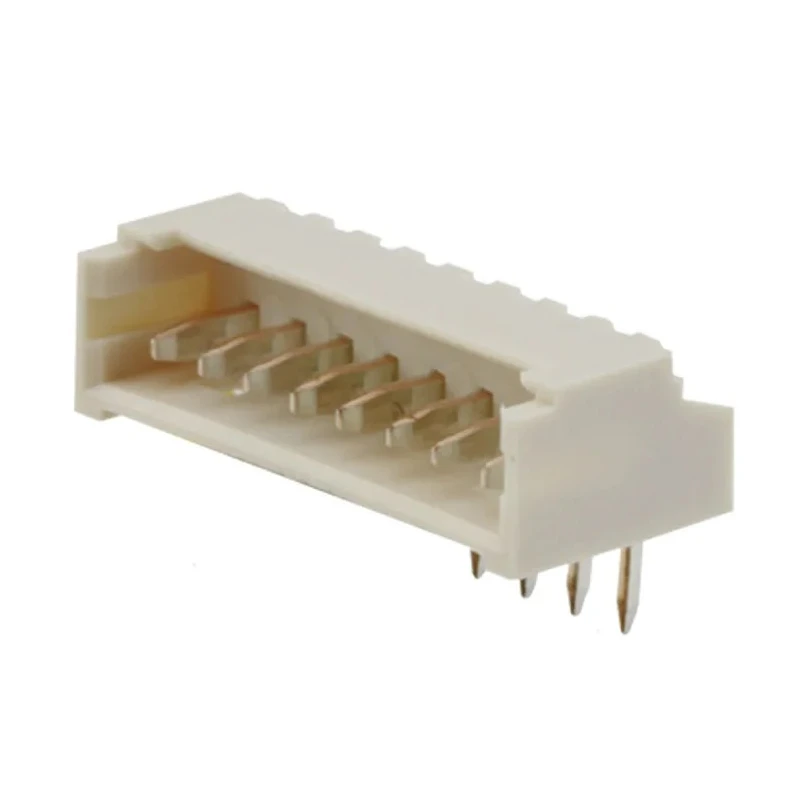

Hirose PicoBlade Series Right Angle Through Hole PCB Header, 8 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53048-0810

Molex 53048-0810 PicoBlade Series right angle through hole PCB header features 8 male contacts with a compact 1.25 mm pitch, housed in durable nylon. This single-row, shrouded connector is designed for wire-to-board interconnection systems offering significant PCB space savings.

The header supports up to 1 amp current per contact, making it ideal for various low-power electronic applications. Constructed with phosphor bronze contacts and tin plating, it ensures reliable electrical performance and corrosion resistance. The through-hole mounting type and right angle design facilitate effective and durable connections in tight PCB layouts.

Operating reliably between -40°C and +85°C, this connector suits demanding industrial, automotive, and consumer electronic environments. The friction locking mechanism secures mating connections to prevent accidental unmating caused by mishandling or vibration.

The header’s tail pins, measuring 2.3 mm, guarantee strong solder joints and mechanical durability. Its shrouded housing protects the contacts and improves connection reliability.

Applications for this product include automotive alarm systems, car audio devices, DVD players, industrial process controls, audiovisual equipment, and medical patient monitoring devices. The compact design and secure locking features make it well-suited for high-density harness applications where board space is at a premium.

Compact 1.25 mm pitch design enabling up to 45% PCB space savings compared to 2.00 mm pitch headers. Rated for 1 amp current per contact, suitable for low-power applications. Constructed with a nylon housing and phosphor bronze contacts plated with tin.

Through-hole mount type designed for easy installation on PCBs. Operating temperature range from -40°C to +85°C for demanding environments. Features friction locking mechanism with locking windows for secure mating connections.

Tail pin length of 2.3 mm for reliable soldering. Shrouded single-row, right angle orientation for compact wire-to-board connections. Ideal for automotive alarms, consumer electronics, control panels, and audiovisual devices.

For high-density and reliable PCB wiring, explore more Molex PicoBlade connectors and related components at EnvMart.
