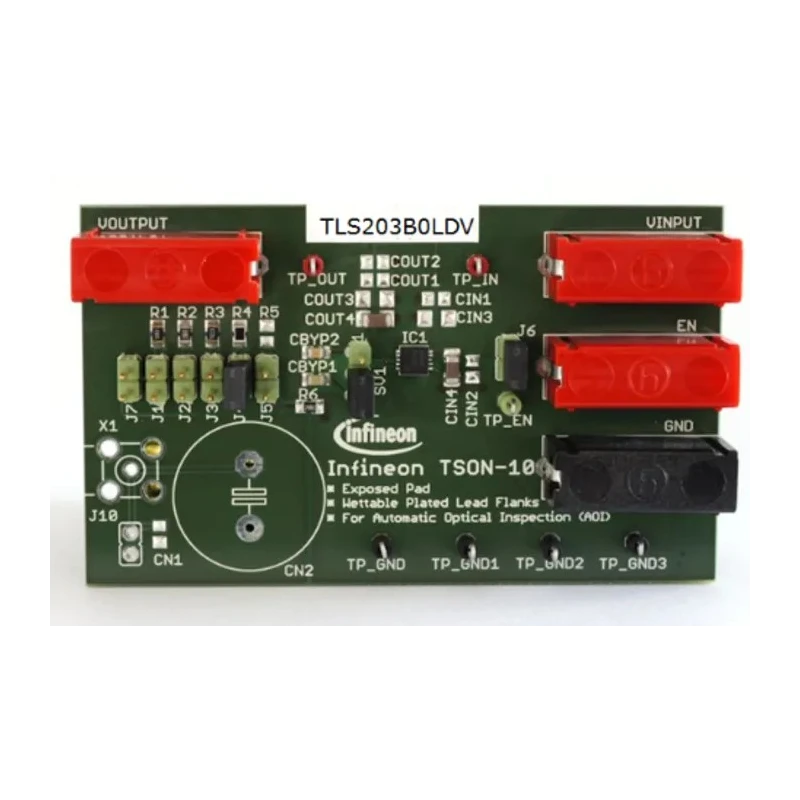

Infineon Evaluation Board LDO Voltage Regulator for TLS203B0 with 300mA Output, Low Noise, 270mV Dropout TLS203B0LDV

The Infineon TLS203B0LDV evaluation board provides a platform for developing and testing the TLS203B0 low dropout (LDO) voltage regulator device. This evaluation board supports the TLS203B0 LDO with an output current capability of 300 milliamperes and a low dropout voltage of only 270 millivolts, making it efficient for regulated power delivery in sensitive electronics.

Designed specifically for battery-powered and automotive applications, the TLS203B0 device on this board features a very low quiescent current of 30 microamperes, which significantly enhances battery life. The regulator delivers a low noise output, allowing the use of small ceramic output capacitors without the need for series resistance typically required by other regulators.

The board includes important internal protection functions such as reverse battery protection, current limiting, and reverse current protection to ensure robust operation in automotive and industrial environments. These features protect downstream circuitry from potential damage caused by common electrical faults.

This evaluation board complies with RoHS, ensuring that it meets contemporary environmental standards. Additionally, the TLS203B0 regulator is AEC qualified, which confirms its reliability and quality for automotive applications.

The TLS203B0LDV evaluation board supports a wide input voltage range and is well suited for various development tasks involving low noise, micro-power voltage regulation. It enables engineers and developers to characterize the device fully under realistic conditions with ceramic capacitor compatibility for stable output voltage and minimal noise interference.

The evaluation board supports a maximum output current of 300 mA. Low dropout voltage of 270 mV ensures efficient voltage regulation. Extremely low quiescent current of 30 µA makes it suitable for battery-powered systems.

Low noise output enables use with small ceramic capacitors without additional series resistance. Includes internal protection such as reverse battery protection and current limiting. Ideal for automotive electronics as a post regulator.

Complies with RoHS environmental standards. AEC qualified for automotive reliability. Wide input voltage range supported for flexible deployment. Supports output ceramic capacitors for noise reduction and stable regulation.

This evaluation board is highly applicable in industrial electronics, automotive power management systems, laboratory and development environments requiring efficient, low-noise voltage regulation solutions. It is a valuable tool for engineers focused on designing and testing low dropout voltage regulators within power, motor control, and robotics development projects.
