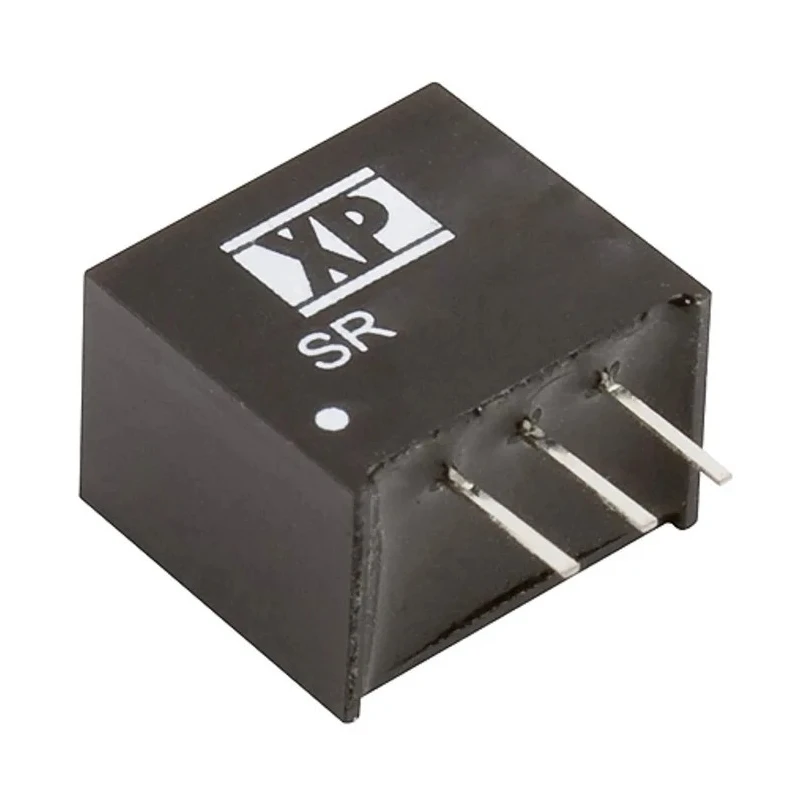

XP Power DC/DC Switching Regulator Through Hole 7.2V DC Output Voltage 34V DC Max Input Voltage 500mA Output SR05S7V2

XP Power SR05S7V2 DC/DC Switching Regulator is a high-quality through-hole switching regulator designed to provide stable DC output voltage of 7.2V at an output current of 500mA. This switching regulator operates with a maximum input voltage of 34V DC and delivers 3.6W of power with efficiency up to 95%, making it an energy-efficient choice for power supply designs.

The device is housed in a compact SIP package that measures 11.68mm in length, 7.5mm in width, and 10.15mm in depth with a lightweight design of 1.8 grams. It is designed with continuous short circuit protection that enhances system reliability by preventing damage during fault conditions. The low ripple and noise level of 60mV peak-to-peak ensures clean output voltage vital for sensitive electronics.

This regulator maintains excellent line regulation of ±0.5% and load regulation of ±0.6%, making it suitable for use in applications requiring stable voltage despite load or supply fluctuations. Its operating temperature range from -40°C to +85°C allows for reliable performance in harsh industrial and commercial environments. The product is RoHS compliant, adhering to environmental standards.

Typical applications include embedded systems, industrial control, instrumentation, and general power supply regulation tasks. The SR series is pin compatible with the LM78MXX family, allowing straightforward replacements in legacy designs. With an MTBF rating of 4.5 million hours, this product promises long-term reliability and minimal maintenance requirements.

The regulator features a maximum input voltage of 34V DC. It delivers a power rating of 3.6W with 95% efficiency. Includes continuous short circuit protection for safety and reliability. Designed to operate over a wide temperature range from -40°C to +85°C.

Compact 3-pin SIP package measuring 11.68mm length, 7.5mm width, and 10.15mm depth. Ripple and noise is low at 60mV peak-to-peak, ensuring clean output power. Line regulation and load regulation are ±0.5% and ±0.6%, respectively, for stable voltage supply.

Industrial grade product RoHS compliant and suitable for various embedded power applications. Pin compatible with LM78MXX series regulators for easy replacement and design flexibility. Mean time between failures (MTBF) is 4.5 million hours, confirming durability.
