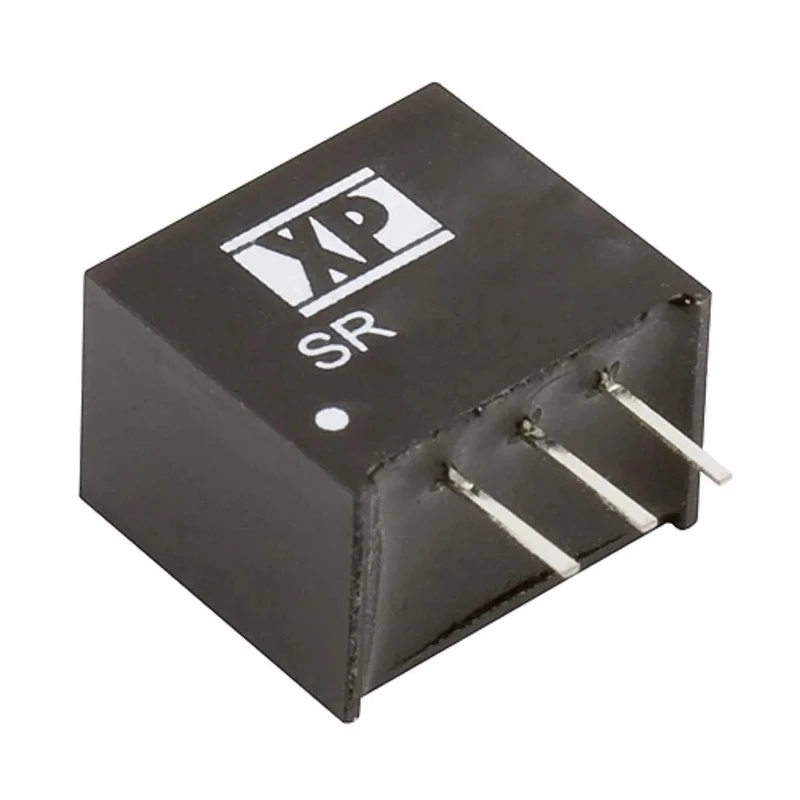

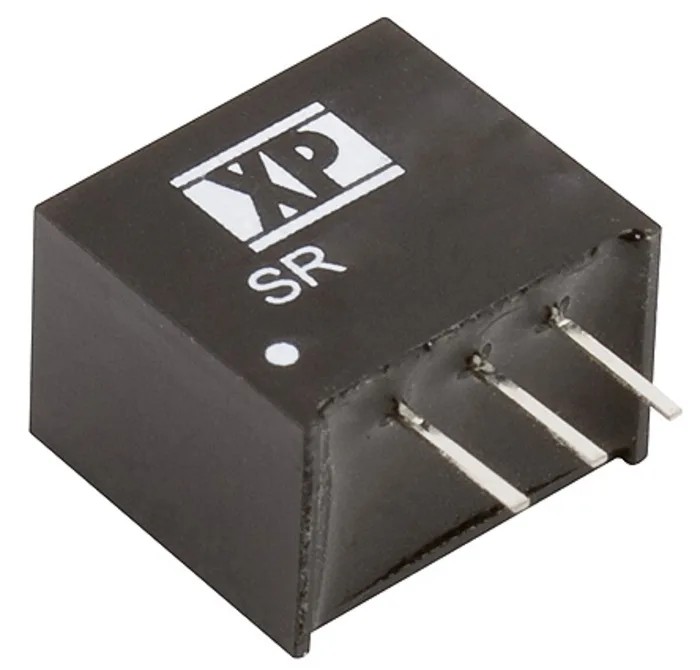

XP Power DC/DC Switching Regulator Through Hole 6.5V Output Voltage 34V Input Voltage 500mA Output Current SR05S6V5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Power | 3.25W |
| Efficiency | 95% |
| Length | 11.68mm |
| Model | SR05S6V5 |
| Depth | 10.15mm |
| Gross Weight | 1.8g |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | SR |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 4.5mH |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Input Voltage | 34V dc |
| Line Regulation | ±0.5 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 8V |
| Output Voltage 1 | 6.5V dc |
Key Features
- Compact SIP package measuring 11.68mm length, 7.5mm width, and 10.15mm depth.
- High efficiency up to 95% minimizing energy loss during operation.
- Wide operating temperature range from -40°C to 85°C for versatile environments.
- Continuous short circuit protection ensures device safety and reliability.
- Input voltage range from 8V minimum to 34V maximum suitable for various applications.
- Low ripple and noise of 60mV peak-to-peak for stable output performance.
- Industry standard package pin-compatible with LM78MXX series for easy replacement.
- Designed for industrial and electronic equipment requiring regulated DC voltage supplies.
Product Description
XP Power SR05S6V5 DC/DC Switching Regulator Through Hole model is a highly reliable power supply component designed for electronic, industrial, and commercial applications requiring efficient DC voltage regulation.
This regulator provides a stable 6.5V DC output voltage with a current capacity of 500mA, operating from a wide input voltage range of 8V to 34V.
Housed in a compact Single Inline Package (SIP) measuring 11.68mm length, 7.5mm width, and 10.15mm depth, this device offers a small PCB footprint optimized for space-constrained designs.
The unit achieves up to 95% efficiency effectively minimizing power losses, which reduces heat dissipation and enhances energy savings. Its continuous short circuit protection ensures operational safety by preventing damage under fault conditions.
With a ripple and noise specification of only 60mV peak-to-peak, it delivers clean and stable output power essential for sensitive electronics. The operating temperature range extends from -40°C to 85°C, allowing deployment in harsh environments and industrial settings.
The SR series is designed to be pin compatible with industry-standard LM78MXX voltage regulators, enabling easy upgrades or replacements in existing systems.
Commonly used in power management for electronic components, switching power supplies, and voltage conversion devices across industrial automation, measuring instruments, and control systems.
Compact SIP package ensures minimal PCB space usage. High efficiency reduces thermal management requirements. Continuous short circuit protection enhances reliability. Wide input voltage range provides design flexibility.
Low ripple and noise ensure signal integrity. Compatible with LM78MXX series for ease of integration. Suitable for harsh industrial temperature conditions. Lightweight device weighing 1.8 grams.
Choose XP Power SR05S6V5 for dependable DC/DC voltage regulation in demanding electronic and industrial applications. Explore more products in the Switching Regulators category at EnvMart for versatile power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 6.5V DC.
The maximum input voltage for the SR05S6V5 is 34V DC.
It has an efficiency rating of up to 95%.
The output current capacity is 500mA.
This model has dimensions of 11.68mm in length, 7.5mm in width, and 10.15mm in depth.
The operating temperature range extends from -40°C to 85°C.
This model uses a through hole mounting type.
The weight of this unit is 1.8 grams.
The ripple and noise specification is 60mV peak-to-peak.
It features continuous short circuit protection to ensure device safety and reliability.
Yes, it is pin-compatible with the LM78MXX series, allowing for easy upgrades or replacements.
This model complies with RoHS standards.
