TE Connectivity PCB Power Relay, 24V DC Coil, 6A Switching Current, SPDT V23092B1024A301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092B1024A301 |
| Width | 15.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, IEC, VDE |
| Coil Resistance | 3.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- High coil sensitivity of 170mW for efficient switching performance.
- Compact design with 5mm thickness enables high-density PCB layouts.
- Wide operating temperature range from -40°C to +85°C for diverse industrial environments.
- Silver alloy contact material ensures reliable conductivity and longevity.
- Isolation coil to contact voltage rating of 4000Vac enhances safety and insulation.
- Solder terminal type for secure and stable connections on PCB.
- Complies with UL, RoHS, IEC, and VDE standards for quality assurance.
- Switching power up to 1.5kVA supports robust electrical loads.
Product Description
TE Connectivity V23092B1024A301 is a high-quality PCB power relay designed for industrial and automation uses where reliable switching of electrical circuits is required. Featuring a 24V DC coil and a single-pole double-throw (SPDT) contact configuration, this relay offers versatile control options for various electronic and electrical applications.
The relay has a compact and slim build with a 5mm thickness, ideal for high-density PCB mounting. Its coil exhibits high sensitivity at 170mW, contributing to lower power consumption and efficient operation in control systems.
Operational across a wide temperature range of -40°C to +85°C, it suits harsh environments such as industrial automation, HVAC systems, manufacturing control panels, and electrical equipment protection.
The relay contacts are made of silver alloy, providing excellent electrical conductivity and durability while switching currents up to 6A and voltages up to 400V AC. The coil to contact isolation of 4000Vac ensures safe and isolated operation within electrical circuits.
High coil sensitivity allows for efficient energy use. Compact dimensions facilitate integration in PCB assemblies. Robust operating temperature range supports varied industrial conditions. Comprehensive compliance with international safety standards.
Designed for secure solder terminal connections. Supports switching power of 1.5kVA for demanding electrical loads. Quality silver alloy contacts ensure reliable performance.
This TE Connectivity power relay is especially suited for industrial automation, manufacturing systems, control relay boards, and power management in electrical devices. Its slim form factor and high isolation voltage make it beneficial for compact and safe PCB designs.
Explore a broad range of PCB mounting components and Power Relays in the Electronics & Electricals category on EnvMart for additional related products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 6A, allowing it to handle various electrical loads efficiently.
This model operates with a coil voltage of 24V DC, making it suitable for low-voltage applications.
The isolation coil to contact voltage rating is 4000Vac, enhancing safety and insulation in electrical circuits.

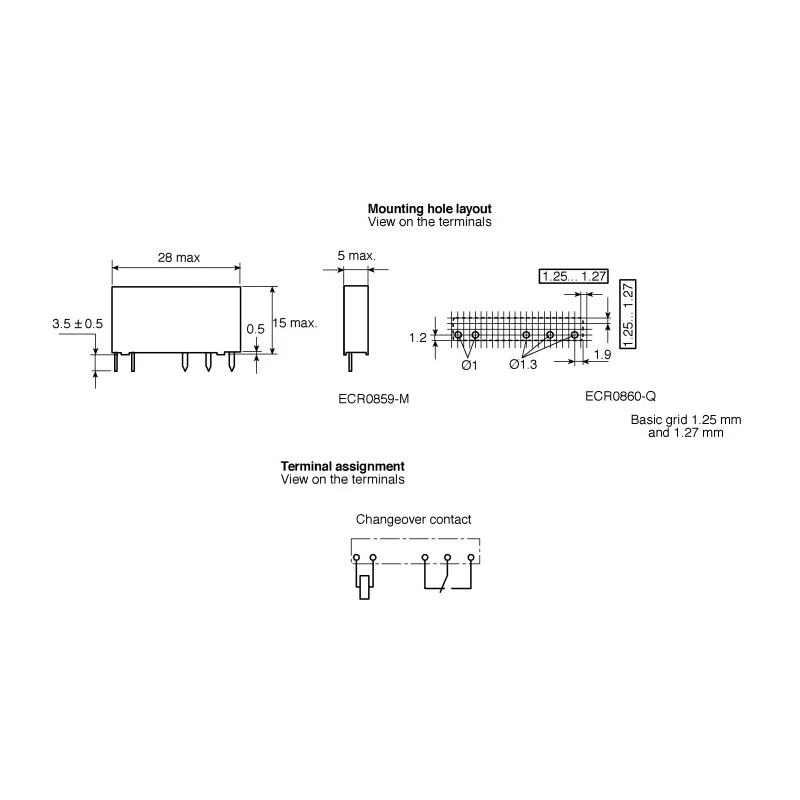

The relay has dimensions of 28mm in length, 15.5mm in width, and a height of 5mm, making it compact for PCB layouts.
It operates within a temperature range of -40°C to +85°C, suitable for diverse industrial environments.
This model features a single-pole double-throw (SPDT) contact configuration, providing versatile control options.
The contacts are made of silver alloy, ensuring reliable conductivity and longevity during operation.
The coil resistance is 3.4kΩ, contributing to its efficient power consumption.
It uses a solder terminal type for secure and stable connections on the PCB.
This relay complies with UL, RoHS, IEC, and VDE standards for quality assurance.
The maximum switching AC voltage is 400V, allowing it to manage various electrical applications effectively.
This relay is suitable for industrial automation, HVAC systems, manufacturing control panels, and electrical equipment protection.
