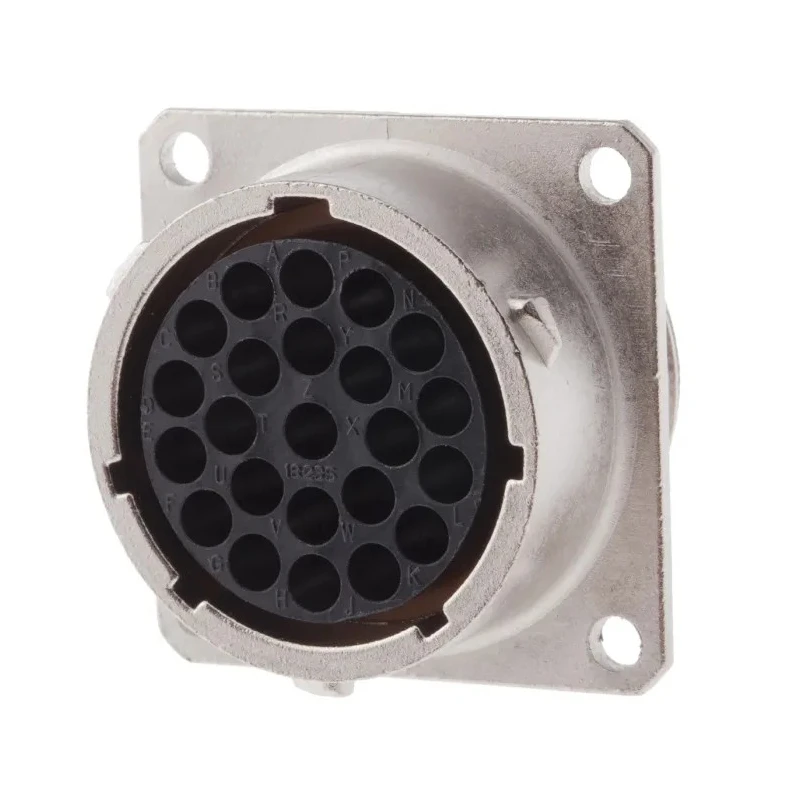

Souriau Sunbank by Eaton MIL Spec Circular Connector Female, Wall Mount, 23 Contacts, Shell Size 18, Crimp UT001823SH6

Souriau Sunbank by Eaton model UT001823SH6 is a high-quality MIL Spec Circular Connector featuring 23 female contacts. It is designed with a shell size 18 zinc alloy housing with a nickel plating layer for enhanced corrosion resistance and mechanical strength.

This connector type is intended for wall mount panel applications and utilizes crimp termination technology with a bayonet mating system for secure and reliable coupling. The straight orientation facilitates ease of installation and integration into varied electronic assemblies.

Operating temperature ranges from -40°C to 105°C, making it suitable for demanding industrial environments including aerospace, military, and rugged commercial uses. The connector is sealed for IP68 compatibility, providing excellent protection against ingress of dust and water.

The bayonet locking ring is designed to withstand 500 mating cycles, ensuring long service life. The connector incorporates a 5-pin guiding mechanism to ensure correct and safe insertion of the plug and receptacle, preventing damage to contacts during mating.

Compatible with the TRIM TRIO and UTP series, this Souriau Sunbank connector offers interchangeability and flexibility within existing MIL Spec connector ecosystems. Nickel plating of contacts provides durability and consistent electrical contact quality under harsh operating conditions.

This Mil Spec Circular Connector features 23 female contacts with crimp termination. Shell size 18 housing constructed of zinc alloy with nickel plating ensures durability. Wall mount mount type supports reliable panel mounting installations.

Bayonet mating type offers secure and quick locking between connector halves. Operating temperature suitability from -40°C up to 105°C. Sealed design supports IP68 environmental protection standards. 5-pin guiding for proper connector alignment during assembly.

Compatible with TRIM TRIO and UTP series connectors for flexible system use. Bayonet locking ring rated for 500 mating cycles for long-term reliability. Nickel plated contacts provide corrosion resistance and reliable electrical connection.

This product is ideal for industrial, aerospace, military, and other electronics demanding robust MIL Spec connectors. Discover extensive technical documentation and CAD models to support your design and installation needs. Explore the Electronics & Electricals category for related circular connector solutions on EnvMart.
