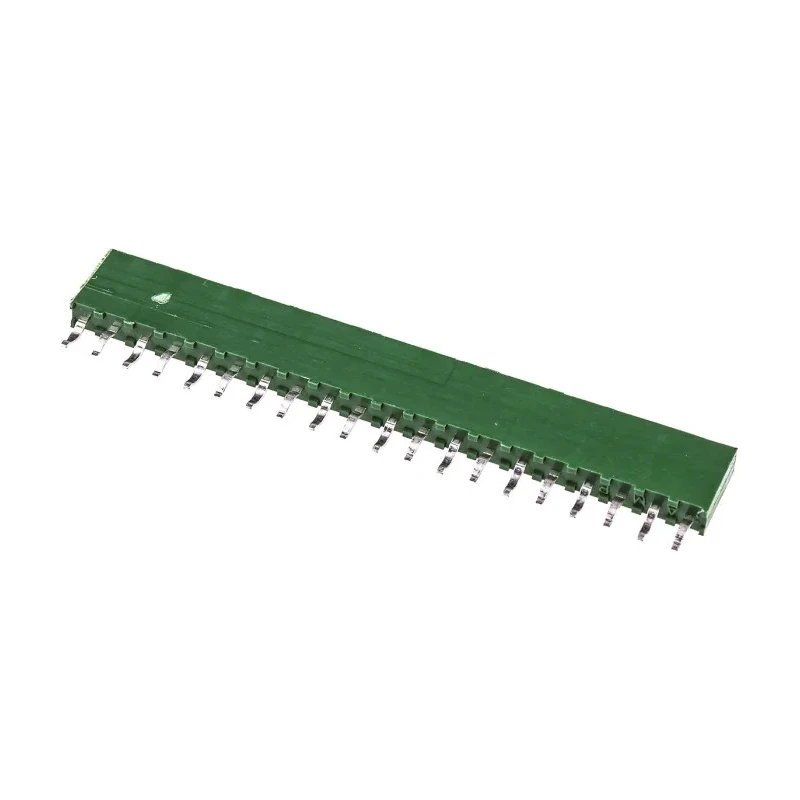

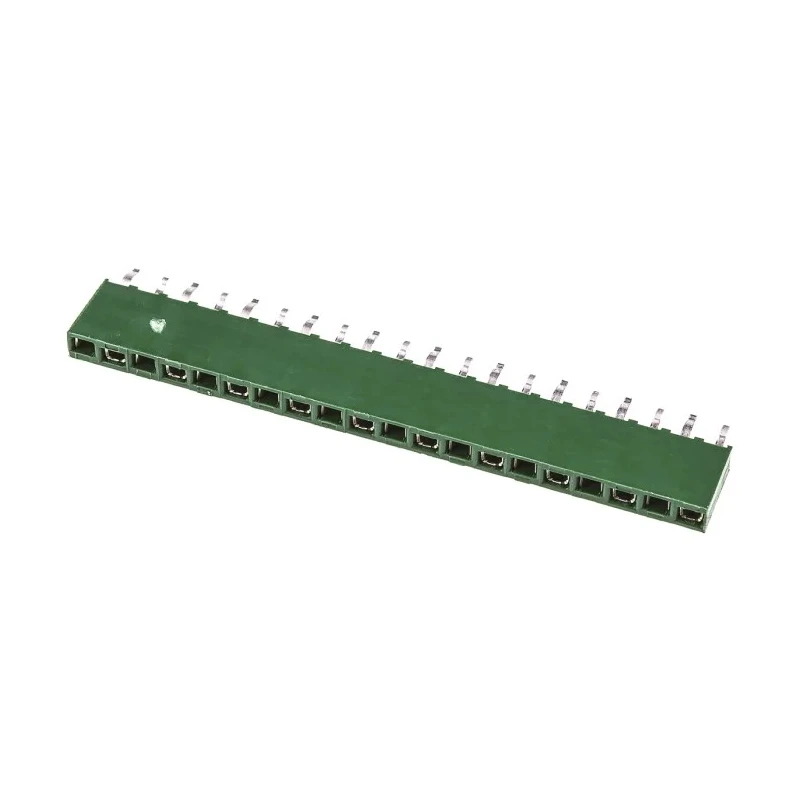

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch Solder HV100

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch Solder HV100

Name: TE Connectivity AMPMODU HV100 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2.54 mm Pitch Solder HV100
Brand: TE Connectivity
SKU: 192477
Price: 4.56 USD
Availability: InStock



Category PCB Sockets Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Current	12A
Model	HV100
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	AMPMODU HV100
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Manufactured with polybutylene terephthalate housing for flame retardance.
Kinked solder legs ensure secure PCB retention during assembly.
Gold-plated bronze female contacts for superior conductivity and corrosion resistance.
Operates reliably within -40°C to 105°C temperature range.
Through hole mount type with a straight orientation for versatile PCB configurations.
Compliant with AMPMODU HV100 series for stacking applications using 7 mm or 8.5 mm mounting heights.
Rated for 12A current carrying capacity ensuring robust electrical performance.
Ideal for industrial, electronic manufacturing, and board assembly applications.

Product Description

TE Connectivity HV100 Series Straight Through Hole PCB Socket, model HV100, features 20 female contacts arranged in a single row with a 2.54 mm pitch designed for board-to-board connections in electronic devices. This PCB socket utilizes solder termination with kinked solder legs to provide secure mechanical retention on the PCB, minimizing the risk of disconnection during operation. The socket housing is constructed from polybutylene terephthalate, a UL 94V-0 flame retardant thermoplastic that enhances device safety and durability.

The female contacts are made from bronze with gold plating, ensuring excellent electrical conductivity and corrosion resistance. This component is rated for a maximum current of 12A and is engineered to operate reliably in environments ranging from -40°C to 105°C, making it suitable for a wide variety of industrial and commercial electronic applications.

The through-hole mount type with a straight orientation allows for compatibility with various PCBs and is part of the AMPMODU HV100 series, supporting stacking applications via two available mounting heights: 7 mm and 8.5 mm. Board stand offs integrated into the design provide additional mechanical stability during assembly and usage.

This PCB socket is ideal for integration in electronic manufacturing, industrial machinery interfaces, and other board interconnection applications where reliable, high-current, and secure connections are required.

Polybutylene terephthalate housing offers UL 94V-0 flame retardant properties. Kinked solder legs provide firm retention on printed circuit boards. Gold-plated bronze female contacts deliver excellent electrical performance.

Supports 12A current capacity for robust operation. Operates over a wide temperature range between -40°C and 105°C. Designed for through-hole mounting with straight orientation. Includes board stand offs for enhanced mechanical stability.

Compatible with AMPMODU HV100 series stacking configurations. Suitable for electronic manufacturing and industrial applications. Reliable board-to-board connector complying with industry standards. Explore all TE Connectivity products and PCB Sockets in the Electronics Components category at EnvMart for your industrial and manufacturing needs.
