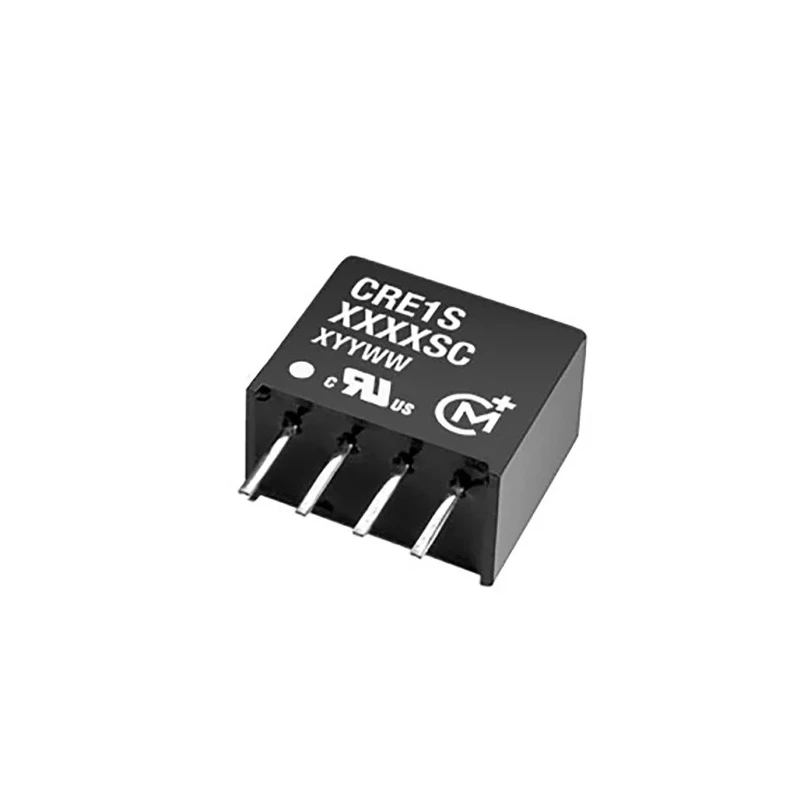

Murata Power Solutions CRE1 Isolated DC-DC Converter 5V Output, 4.5 - 5.5V Input, 1W Power, Through Hole Package
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions CRE1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 70% |
| Length | 11.53mm |
| Model | CRE1 |
| Depth | 10mm |
| Gross Weight | 1.38g |
| Width | 6.1mm |
| Mount Type | Through Hole |
| Series | CRE1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 25mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | CRE, UL, RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 200mA |
Key Features
- The converter supports an input voltage range from 4.5V to 5.5V.
- It features galvanic isolation with an isolation voltage up to 1kV dc.
- Through hole mounting type with an 8-pin SC package ensures easy integration.
- Ripple and noise specification is 25mV peak-to-peak ensuring stable power output.
- Operating efficiency is approximately 70%, balancing performance and thermal management.
- Compact dimensions with length 11.53mm, width 6.1mm, and depth 10mm.
- Wide temperature tolerance from -40°C minimum to 85°C maximum for industrial applications.
- Weighs only 1.38 grams, suitable for space-constrained applications.
Product Description
Murata Power Solutions CRE1 CRE1S0505SC is an isolated DC-DC converter designed for reliable power supply conversion in industrial, electronic, and embedded applications. It provides a regulated 5V dc output from input voltages ranging between 4.5V and 5.5V, delivering up to 1 watt of power. This component uses galvanic isolation technology to ensure separation between input and output, enhancing safety and signal integrity.
The unit is constructed within an industry-standard SC package featuring 8 pins and supports through-hole mounting for straightforward PCB integration. Its compact form factor with dimensions of 11.53mm length, 6.1mm width, and 10mm depth allows use in densely packed designs.
Operating across a wide temperature range from -40°C to +85°C, this DC-DC converter is suited for harsh environments, including industrial controls, instrumentation, and telecommunications equipment. The ripple and noise of 25mV peak-to-peak ensures stable DC output power critical for sensitive electronics.
With approximately 70% efficiency, it balances performance and thermal characteristics, contributing to overall system reliability. The device meets CRE, UL, and RoHS standards, providing assurance of quality and environmental compliance.
The converter supports an input voltage range from 4.5V to 5.5V. Galvanic isolation voltage rating of 1kV dc ensures electrical separation. Compact and lightweight with 1.38g weight for easy PCB assembly. Industry standard SC package with 8-pin configuration.
Wide operating temperature from -40°C to 85°C for diverse applications. Ripple and noise limit set at 25mV Pk-Pk for stable output voltage. 1 watt maximum output power for low power supply needs. Compliance with CRE, UL, and RoHS certifications.
This Murata Power Solutions CRE series isolated DC/DC converter is widely applicable in industrial automation, power management circuits, telecommunications, laboratory instruments, and embedded system power supplies. It provides a robust, isolated power solution where space constraints and thermal endurance are critical considerations.
Explore more DC/DC Converters and related power management components on EnvMart to fulfill your project requirements with trusted brands and technical quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter supports an input voltage range from 4.5V to 5.5V.
It provides a regulated output voltage of 5V DC.
The maximum output power is 1 watt.
The dimensions are 11.53mm in length, 6.1mm in width, and 10mm in depth.
It has an isolation voltage rating of 1kV DC, ensuring electrical separation between input and output.
The operating efficiency is approximately 70%.
It weighs only 1.38 grams, making it suitable for space-constrained applications.
The ripple and noise specification is 25mV peak-to-peak, ensuring stable power output.
It operates within a wide temperature range from -40°C to +85°C.
The converter features a through-hole mounting type with an 8-pin SC package for easy integration.
It meets CRE, UL, and RoHS standards, ensuring quality and environmental compliance.
It is widely applicable in industrial automation, power management circuits, telecommunications, and embedded systems.
