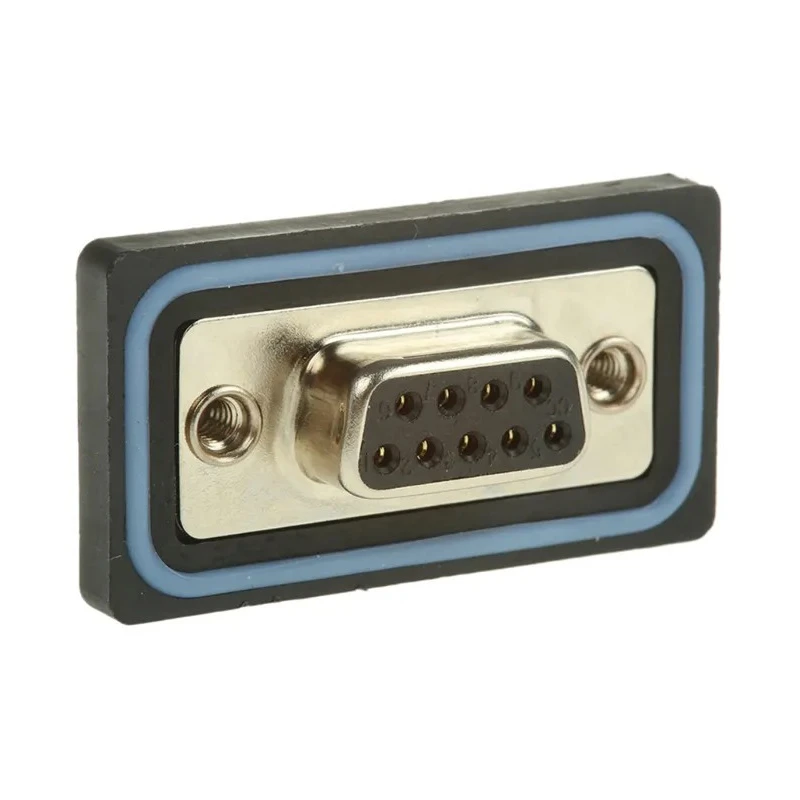

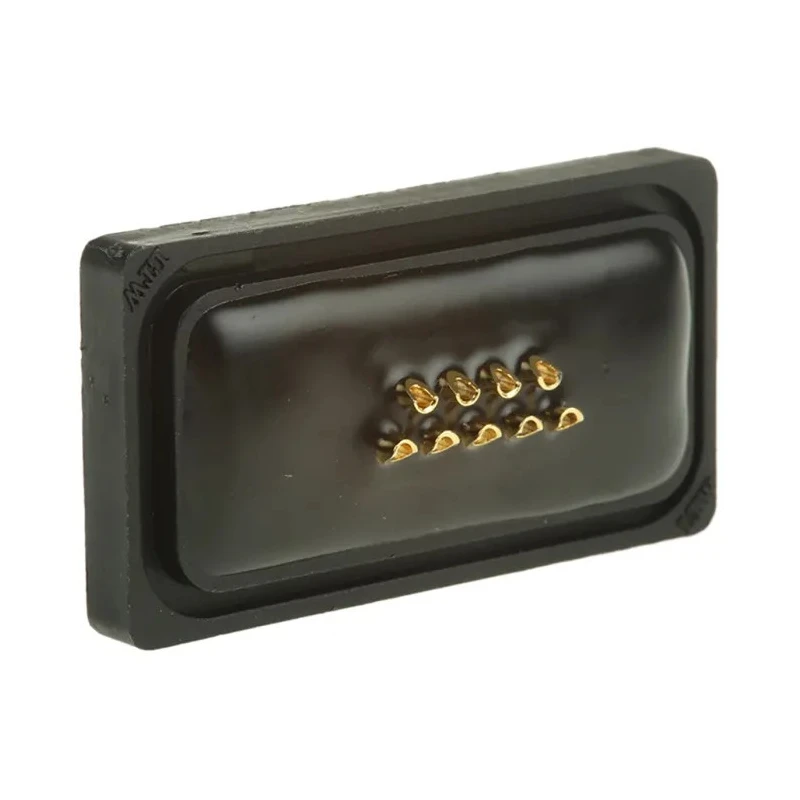

ASSMANN WSW 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector A-DF 09 LL-WP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 5A |
| Model | A-DF 09 LL-WP |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Brass |
| Series | A-DF |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.77mm |
| Contact Plating | Nickel, Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Features a female contact gender with 9 individual contacts.
- Rated for 5A current and 250V voltage operation.
- Panel mount type with a straight orientation for easy installation.
- Constructed with brass contact material plated with nickel and gold for corrosion resistance.
- Operates in temperature ranges from -40°C to 105°C.
- Termination by solder cup ensures secure connections.
- D-Sub shell size E suitable for compact applications.
- Designed without specific standards/approvals but engineered for durability.
Product Description
ASSMANN WSW presents the A-DF 09 LL-WP, a high-quality 9 Way Straight Panel Mount D-Sub Connector featuring a 2.77 mm pitch. This connector is engineered to provide robust and reliable connections in demanding electronic component applications. Its metal housing offers excellent mechanical strength and shielding.
The female contacts are made of brass with a nickel and gold plating, providing superior conductivity and resistance to corrosion. The connector supports a current rating of 5A at 250V, making it suitable for various industrial and electronic environments. The straight panel mount orientation simplifies installation in control panels and other equipment.
The D-Sub connector shell size E allows a compact footprint without compromising performance. It is designed for solder termination using a solder cup style, offering secure and stable electrical connections. The product is engineered to operate reliably within a temperature range from -40°C to a maximum of 105°C.
Although it does not carry specific standards or approvals, the A-DF 09 LL-WP series is manufactured to meet rigorous performance and durability criteria required in industrial electronics, computing, and automation systems.
Female contact gender with nine contacts ensures precise signal transmission. Metal housing for enhanced durability and electromagnetic shielding. Nickel and gold plated contacts for improved corrosion resistance and conductivity.
Solder termination type optimizes electrical and mechanical connection integrity. Suitable for panel mounting installations with a straight orientation. Operates effectively across a wide temperature range (-40°C to 105°C).
Compact size with 2.77 mm pitch, ideal for tight spaces.
This ASSMANN WSW D-Sub Connector is ideal for use in electronic manufacturing, industrial automation, telecommunications, laboratory instruments, and computing hardware where reliable and compact connectors are essential.
Enhance your project or production line with the durable and efficient A-DF 09 LL-WP connector available at EnvMart. Explore our extensive catalog for related connectors and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5A and a voltage of 250V.
The connector features a pitch size of 2.77 mm.
It uses a solder termination type, ensuring secure connections through solder cup style.
It operates effectively within a temperature range from -40°C to 105°C.
This connector has a female contact gender and features 9 individual contacts.
The connector has a metal housing and brass contacts plated with nickel and gold for corrosion resistance.
The connector is designed with a straight orientation for panel mounting.
This model has a D-Sub shell size E, suitable for compact applications.
It is suitable for electronic manufacturing, industrial automation, telecommunications, laboratory instruments, and computing hardware.
The nickel and gold plating provides improved conductivity and resistance to corrosion, enhancing the connector's performance.
The connector is manufactured in India.
It features a metal housing that offers excellent mechanical strength and shielding.
