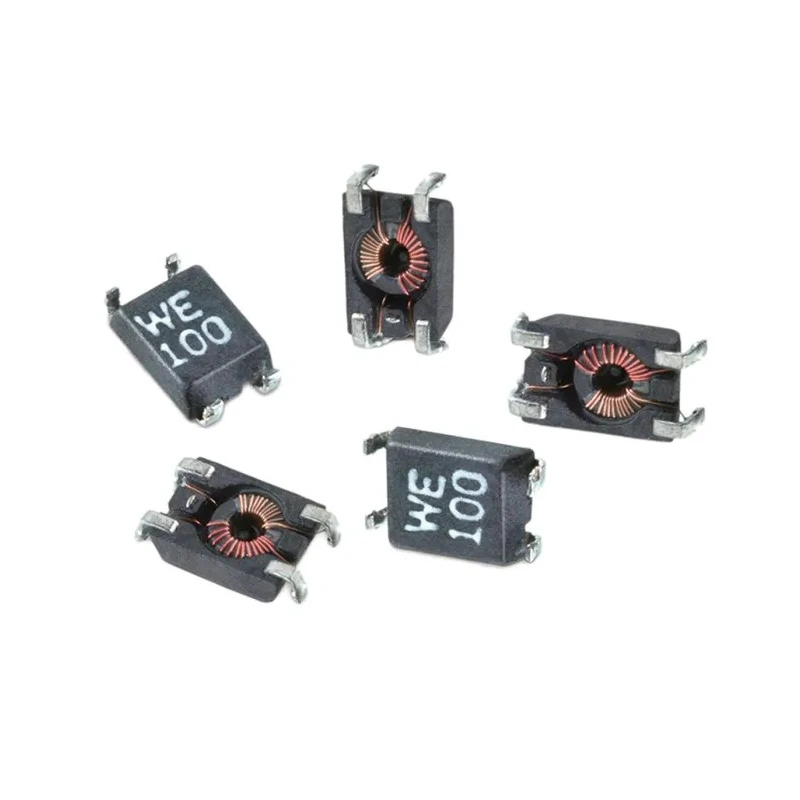

Wurth Elektronik WE-SL1 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH 300mA 4-Pin 6.5mm x 744212470

Wurth Elektronik model 744212470 is a shielded wirewound surface mount inductor incorporating a ferrite core, providing 47μH inductance with sectional winding construction. This component is engineered for use in electronic circuits requiring noise suppression and signal integrity, specifically on CAN, USB, firewire, data, and power lines.

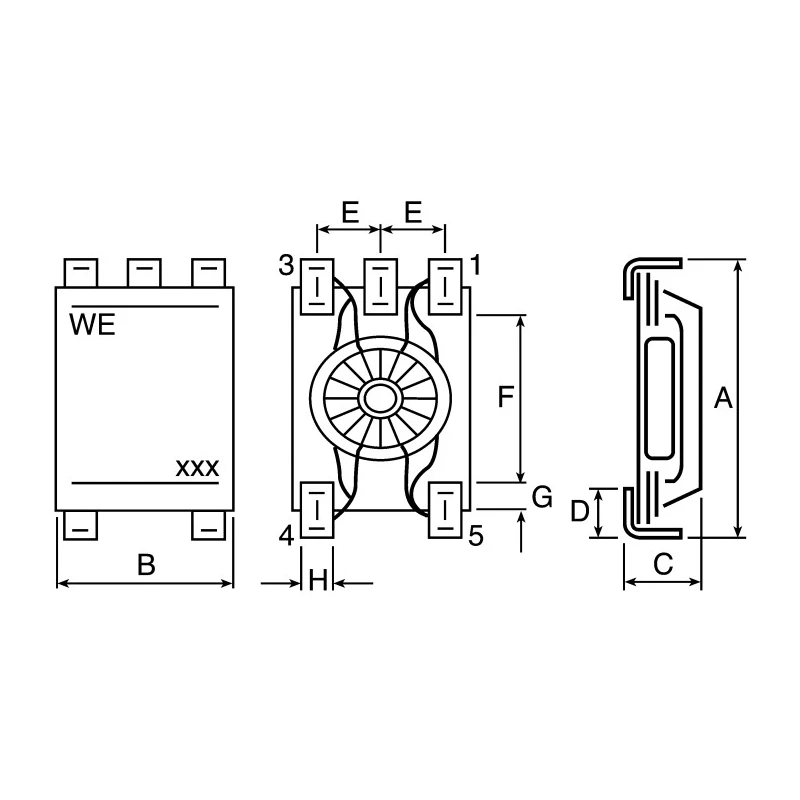

The inductor features a compact 4-pin surface mount termination within a footprint of 6.5mm length, 1.65mm height, and 3.6mm depth, allowing easy PCB integration in space-constrained designs. The ferrite core material enhances magnetic shielding and reduces stray inductance, while the ±50% inductance tolerance offers flexibility in circuit design.

Rated for a maximum DC current of 300mA and maximum DC resistance of 160mΩ, the inductor ensures efficient current handling with minimal power loss. It withstands operating temperatures from -40°C to 105°C, suitable for a wide range of industrial and commercial electronics applications.

Manufactured to comply with REACH, JEDEC JS709B, IEC 61249-2-21, and RoHS standards, this component adheres to stringent environmental and quality requirements. The packaging on tape & reel format supports automated insertion processes, enhancing manufacturing productivity.

Compact 4-pin surface mount design enabling PCB space efficiency. Ferrite core for enhanced magnetic shielding and low leakage inductance. High maximum current rating up to 300mA for robust performance. Wide operating temperature range from -40°C to 105°C.

Conforms to international standards including RoHS and REACH. Suitable for filtering and noise suppression in data and power lines. Sectional winding construction ensuring reliable inductance characteristics. Available in tape & reel packaging for assembly line automation.

This Wurth Elektronik WE-SL1 series component is ideal for applications in industrial electronics, automotive electronics (non-automotive standard), and communication equipment, supporting signal integrity and EMI reduction. Its adherence to quality standards and compact form factor makes it suited for various electronics design requirements.
