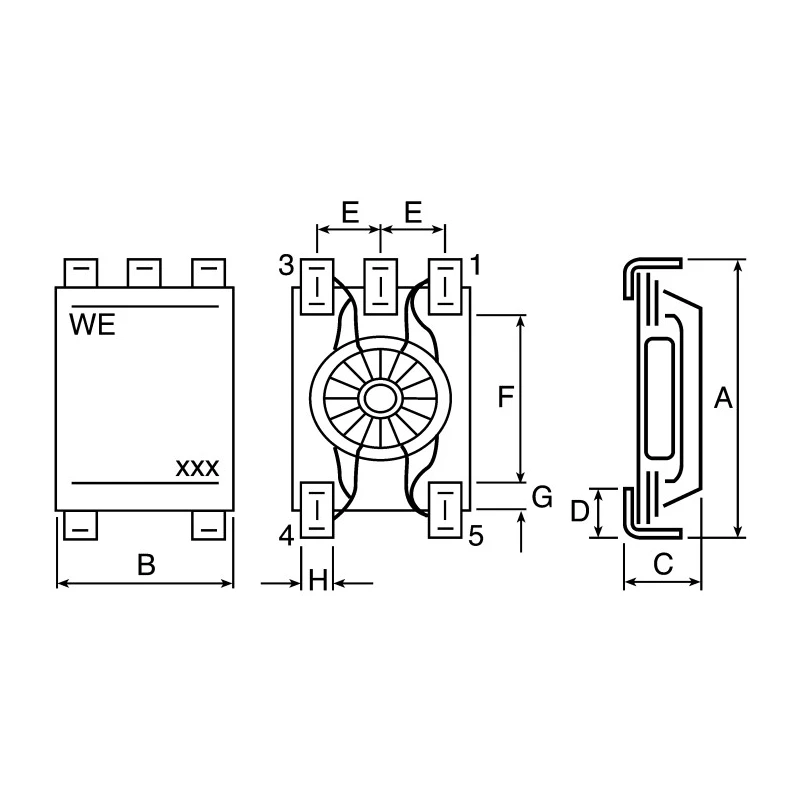

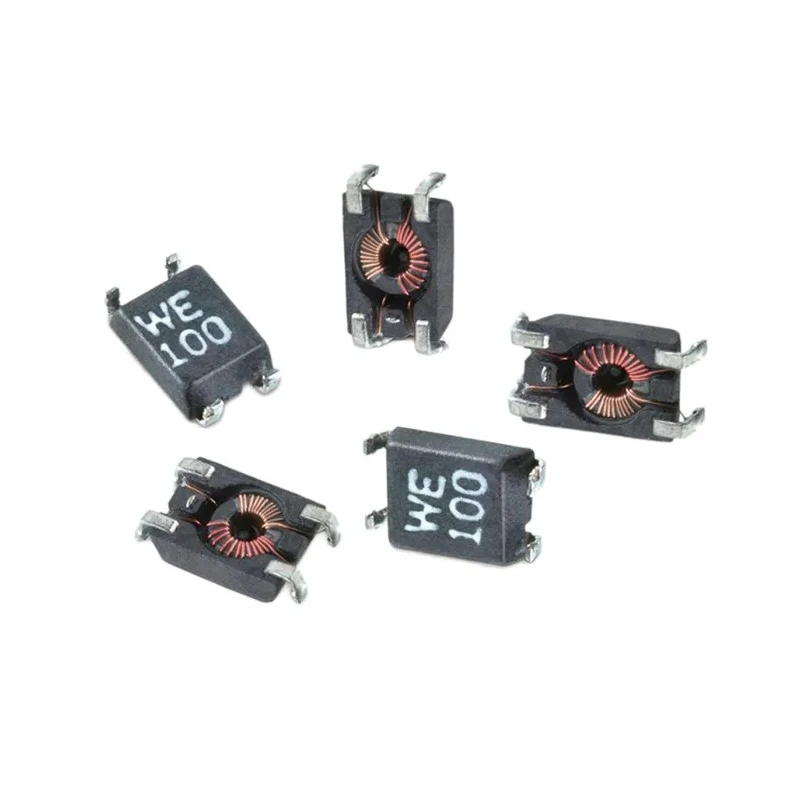

Wurth Elektronik WE-SL1 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±50 % 300mA 6.5mm x 3.6mm 744212470
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.65mm |
| Length | 6.5mm |
| Depth | 3.6mm |
| Packaging | Tape & Reel |
| Series | WE-SL1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | REACH, JEDEC JS709B, IEC 61249-2-21, RoHS |
| Maximum DC Current | 300mA |
| Pin Count | 4 |
| Maximum DC Resistance | 160mΩ |
| Inductance Tolerance | ±50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Sectional Winding |
Key Features
- Inductor has a 47 μH inductance with ±50% tolerance.
- Maximum DC current rating of 300 mA supports low current applications.
- Compact dimensions of 6.5mm length, 3.6mm depth, and 1.65mm height enable space-saving PCB design.
- Shielded construction with ferrite core minimizes electromagnetic interference.
- Surface mount termination style simplifies automated PCB assembly.
- Maximum operating temperature of 105°C ensures reliability in moderate thermal environments.
- Compliant with REACH, JEDEC JS709B, IEC 61249-2-21, and RoHS standards for safety and environmental care.
- Maximum DC resistance of 160 mΩ reduces power losses in the circuit.
Product Description
Wurth Elektronik 744212470 is a WE-SL1 series shielded wirewound surface mount inductor featuring a ferrite core designed for effective electromagnetic interference suppression in electronic circuits. With a nominal inductance of 47 μH and a tolerance of ±50%, this inductor is well suited for filtering applications on data and power lines including CAN, USB, and firewire interfaces.
The inductor supports a maximum DC current of 300 mA and features a maximum DC resistance of 160 mΩ, ensuring low power loss and efficient operation. Its surface mount termination style and small package dimensions (6.5mm length, 3.6mm depth and 1.65mm height) allow for compact PCB layouts and automated assembly with tape and reel packaging.
Constructed with sectional winding technology and a ferrite core, the component is shielded against electromagnetic emissions and certified for compliance with industry standards such as REACH, JEDEC JS709B, IEC 61249-2-21, and RoHS. Operating temperature ranges from -40°C to 105°C making it suitable for typical industrial and commercial electronic environments.
This Wurth Elektronik WE-SL1 inductor is ideal for industrial electronics, laboratory equipment, power supply noise suppression, automotive signal line filtering, and various capacitive and data line applications.
Nominal inductance: 47 μH with ±50% tolerance. Maximum DC current rating: 300 mA. Shielded with ferrite core for EMI suppression. Compact surface mount design for PCB space saving. Compliance with REACH, JEDEC JS709B, IEC 61249-2-21, RoHS standards.
Operating temperature range: -40°C to 105°C. Maximum DC resistance: 160 mΩ. Packaging: Tape and reel for manufacturing efficiency. Applications include CAN bus, USB, firewire, data and power lines filtering.
Browse the Electronics Components Surface Mount Inductor category at EnvMart for more industrial-quality inductors and passive components from leading global manufacturers like Wurth Elektronik.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 47 μH with a tolerance of ±50%.
It supports a maximum DC current rating of 300 mA, making it suitable for low current applications.
The dimensions are 6.5 mm in length, 3.6 mm in depth, and 1.65 mm in height.
The maximum operating temperature is 105°C, allowing it to function in moderate thermal environments.
It features a ferrite core, which aids in minimizing electromagnetic interference.
The maximum DC resistance is 160 mΩ, which helps reduce power losses in the circuit.
It has a surface mount termination style, facilitating automated PCB assembly.
This model is compatible with USB, firewire, and data and power lines.
It is compliant with REACH, JEDEC JS709B, IEC 61249-2-21, and RoHS standards.
The maximum self-resonant frequency is 100 kHz, suitable for various filtering applications.
It is constructed using sectional winding technology, enhancing its performance in filtering applications.
It is packaged in tape and reel format, which is efficient for manufacturing processes.
