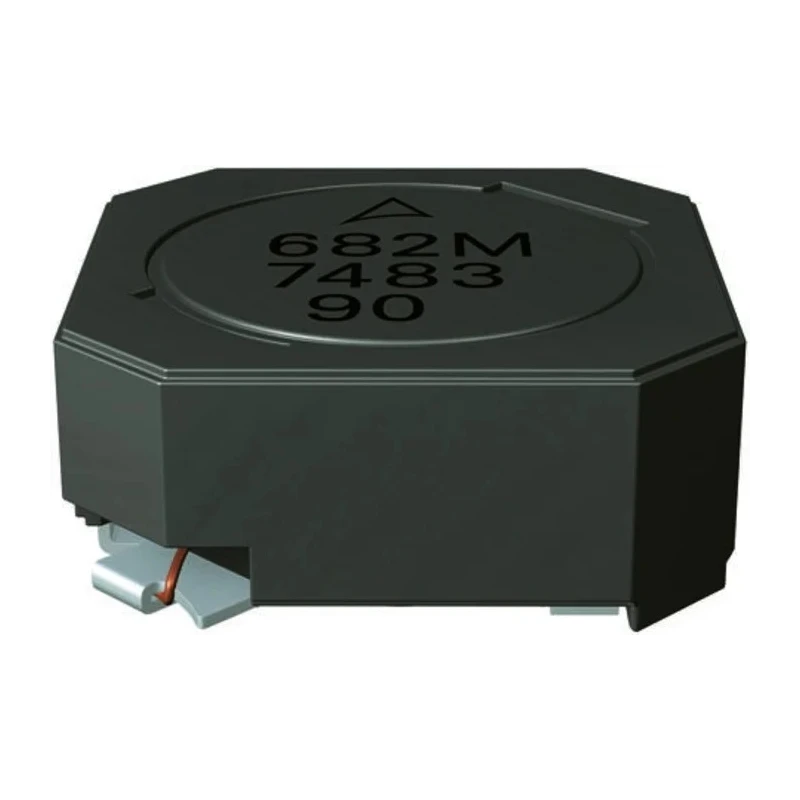

TDK B82464G4472M000 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20% 4.9 A Idc
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Length | 10.4mm |
| Model | B82464G4472M000 |
| Depth | 10.4mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 4.9A |
| Pin Count | 2 |
| Maximum DC Resistance | 15mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor offers a maximum DC current rating of 4.9 A and low DC resistance of 15 mΩ.

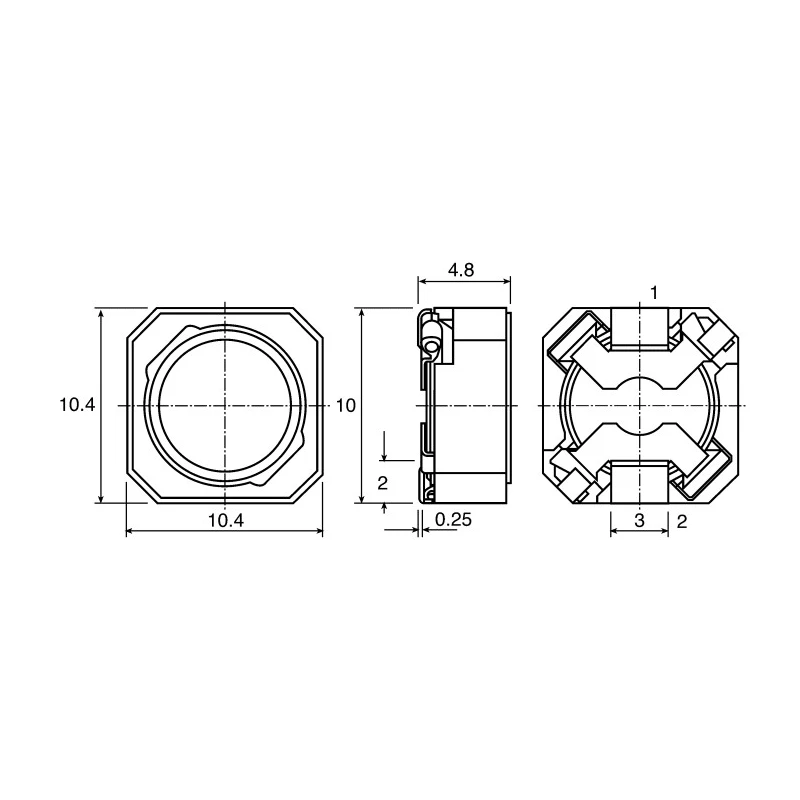

- It measures 10.4 mm in length, 10.4 mm in depth, and 4.8 mm in height, suitable for compact SMT applications.
- Features magnetic shielding and solder termination style for reliable performance.
- Complies with RoHS standards and automotive standard AEC-Q200 for durability.
- Operates in a wide temperature range from -55°C to 150°C for industrial applications.
- Constructed with a ferrite core and wirewound inductor technology for stable inductance.
- Delivered in tape and reel packaging enabling efficient assembly automation.
Product Description
TDK B82464G4472M000 shielded wirewound surface mount inductor incorporates a ferrite core and offers an inductance value of 4.7 μH with a tolerance of ±20%. This SMT component is magnetically shielded to reduce electromagnetic interference, making it ideal for power supply filtering and noise suppression in electronic circuits.
The inductor supports a maximum DC current of 4.9 A and features a low DC resistance of 15 mΩ, ensuring efficient current handling and minimal power loss. Measuring 10.4 mm in length and depth, and 4.8 mm high, this device fits compact surface mount designs and uses solder termination for secure PCB mounting.
Certified to meet AEC-Q200 automotive standards and RoHS compliance, it is suitable for automotive and industrial electronics applications requiring high reliability across a wide temperature range from -55°C to 150°C.
Manufactured with a ferrite core through wirewound construction, it provides stable inductance characteristics under varying operating conditions. The inductor features magnetic shielding to minimize external magnetic field interference.
It comes packaged in tape and reel format to support automated pick-and-place assembly lines. Typical applications include power supplies, noise filtering, and electronic control systems in automotive and industrial sectors.
Explore the Surface Mount Inductor category for additional TDK components and similar products to match your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 4.7 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 4.9 A.
It measures 10.4 mm in length, 10.4 mm in depth, and 4.8 mm in height.
The DC resistance is 15 mΩ, ensuring efficient current handling.
It operates within a temperature range from -55°C to 150°C.
The inductor is constructed with a ferrite core.
Yes, it complies with RoHS standards and the automotive standard AEC-Q200.
It uses a solder termination style for secure PCB mounting.
It comes packaged in tape and reel format to support automated pick-and-place assembly.
Typical applications include power supplies, noise filtering, and electronic control systems in automotive and industrial sectors.
It is constructed using wirewound inductor technology, providing stable inductance characteristics.
This inductor has a pin count of 2.
