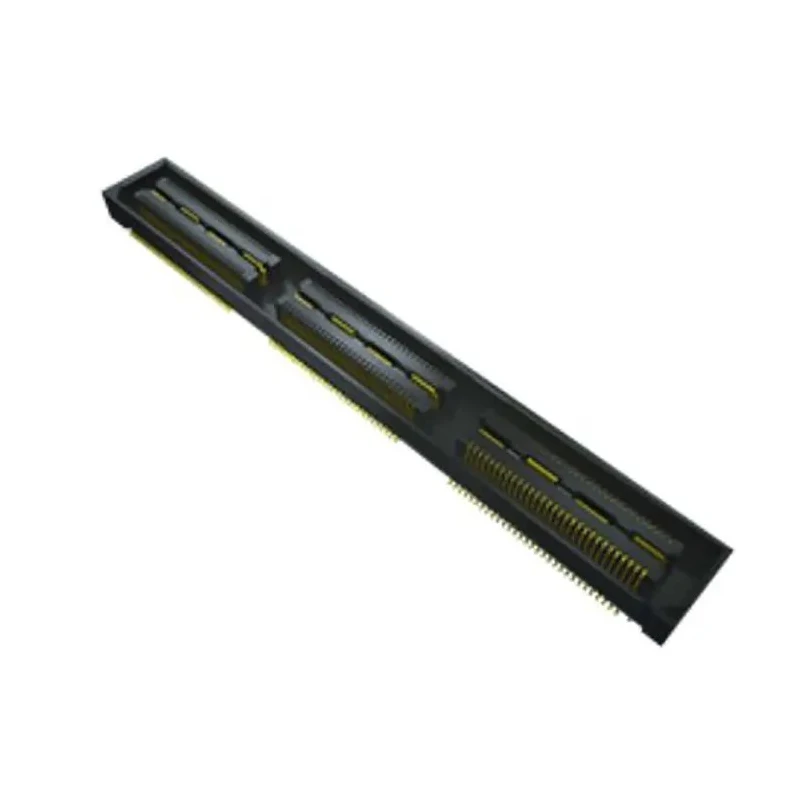

Samtec QSH Series Right Angle Surface PCB Socket 60-Contact 2 Row 0.5 mm Pitch 220V QSH-030-01-L-D-A-RT1

Samtec QSH Series model QSH-030-01-L-D-A-RT1 is a right angle surface PCB socket specifically engineered for board-to-board connector systems. It operates at 220V and is designed to handle currents up to 21.8A with a pitch of 0.5 mm, featuring 60 contacts arranged in 2 rows. This socket utilizes high-quality phosphor bronze contacts plated with gold to ensure excellent electrical conductivity and corrosion resistance.

The housing of the socket is constructed from liquid crystal polymer, known for its mechanical strength and chemical resistance, making it suitable for demanding industrial and electronic assembly environments. The product is surface mount type with a right angle orientation to aid in space-efficient PCB design and assembly. Its termination type is solder, which provides secure and reliable electrical connections.

The operational temperature range from -55°C to 125°C allows this socket to be used in harsh conditions without compromising performance. This product is RoHS compliant, assuring environmental safety by limiting hazardous substances. Primarily used in PCB socket applications, it supports high-speed ground plane connections and differential pair signal integrity crucial for high-frequency electronic devices.

This PCB socket features a high-speed ground plane socket strip supporting differential pair signals. The contact material is phosphor bronze plated with gold for reliable conductivity. The housing is made from liquid crystal polymer providing durability and heat resistance.

It supports current up to 21.8A with solder termination for secure mounting. The socket is surface mounted and oriented at a right angle to the PCB for compact design. Operational temperature range spans from -55°C to 125°C ensuring performance in varied environments.

This product complies with RoHS standards for hazardous substance restriction. Ideal for industrial, electronic manufacturing, and high-performance PCB assembly applications.

Samtec’s QSH Series PCB Socket is widely regarded in the electronics industry for its reliability and precision. It is suitable for applications including telecommunications, computing hardware, industrial control systems, and other electronic manufacturing contexts.
