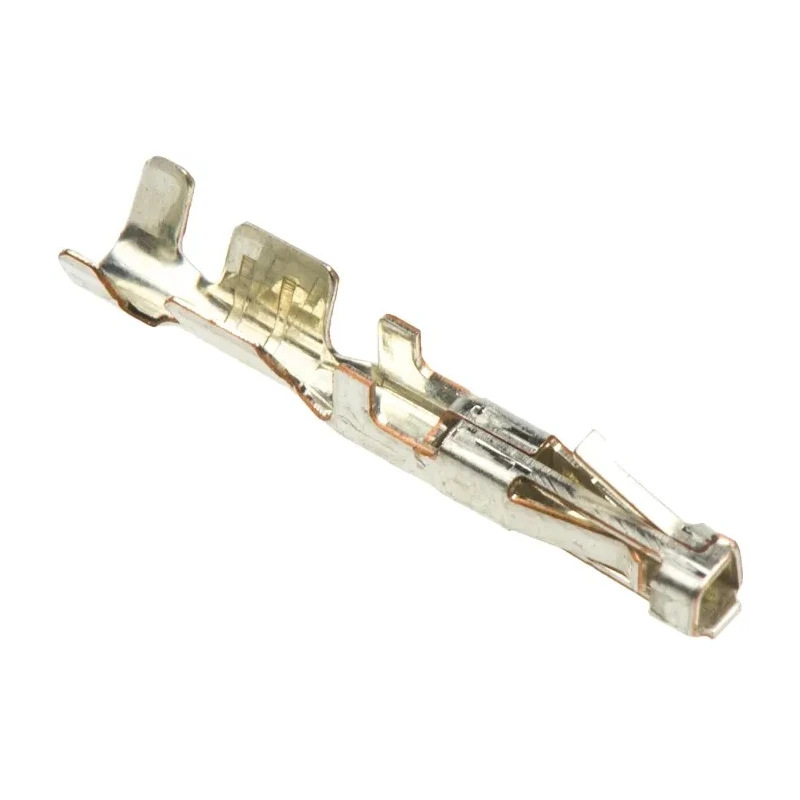

Molex Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min Crimp 20 AWG Max 3A Current 794610-1

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min Crimp 20 AWG Max 3A Current 794610-1

Name: Molex Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min Crimp 20 AWG Max 3A Current 794610-1
Brand: Molex
SKU: 191235
Price: 0.25 USD
Availability: InStock



Category Connectors Brand Molex Condition New

Specifications

Country of Origin	Mexico
Brand	Molex
Current	3A
Model	794610-1
Gender	Female
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance mechanism for secure retention in housing
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ
Molex 43030 Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG MaxBrand	Molex

Key Features

Designed for use with Micro MATE-N-LOK connector housings.
Constructed from phosphor bronze with tin plating for reliable conductivity.
Features a dual beam contact design ensuring a secure and reliable electrical connection.
Includes a locking lance mechanism for secure retention within connector housing.
Suitable for crimp termination type with operating temperature range from -40°C to 105°C.
Offers maximum contact resistance of 20 milliohms for efficient signal transfer.
Ideal for industrial and consumer electronic applications requiring reliable connectors.
Manufactured in Mexico meeting quality and durability standards.

Product Description

TE Connectivity 794610-1 Micro MATE-N-LOK Series female crimp terminal is designed for reliable wire-to-wire and wire-to-board electrical connections. Rated for 3 amperes, it supports a wire size range of 24 AWG minimum to 20 AWG maximum, making it versatile for various wiring needs in industrial, commercial, and consumer electronic applications.

The crimp terminal is made from phosphor bronze, known for excellent electrical conductivity and durability, and plated with tin to resist oxidation and ensure long-lasting performance. Its dual beam contact design provides a robust and secure electrical connection.

A locking lance mechanism secures the terminal firmly within the Micro MATE-N-LOK connector housing, preventing unintended disconnections. It supports crimp termination for quick and efficient assembly and operates reliably in temperatures ranging from -40°C to 105°C.

This component features a maximum contact resistance of 20 milliohms, ensuring efficient current flow with minimal loss. The terminals are compatible with the Micro MATE-N-LOK 3mm connector system, which is utilized widely across wire-to-wire and wire-to-board configurations.

Key attributes include a wide wire size range, durable materials, and efficient electrical performance, making it suitable for a broad range of industrial and electronic applications including manufacturing, automation, and consumer electronics.

Designed for Micro MATE-N-LOK connector housings. Dual beam contact design for electrical reliability. Locking lance mechanism ensures secure retention. Tinned phosphor bronze contact material for durability. Crimp termination type for ease of assembly.

Operates between -40°C and 105°C. Maximum current rating of 3A with low contact resistance. Manufactured in Mexico with stringent quality standards.

For detailed engineering applications, this terminal offers a reliable and robust solution within the 3mm Micro MATE-N-LOK connector family. Explore related products and technical documents in the Connectors category on EnvMart for comprehensive solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This crimp terminal has a maximum current rating of 3 amperes, making it suitable for various applications requiring reliable electrical connections.

It supports a wire size range of 24 AWG minimum to 20 AWG maximum, allowing versatility in wiring applications.

The terminal is constructed from phosphor bronze, which is plated with tin for enhanced electrical conductivity and durability.

It operates reliably within a temperature range of -40°C to 105°C, suitable for various environmental conditions.

It features a locking lance mechanism that secures the terminal firmly within the Micro MATE-N-LOK connector housing, preventing unintended disconnections.

The maximum contact resistance is 20 milliohms, ensuring efficient signal transfer with minimal loss.

Yes, it is designed for use in industrial, commercial, and consumer electronic applications, providing reliable connections.

This model uses crimp termination, which allows for quick and efficient assembly.

It is manufactured in Mexico, adhering to quality and durability standards.

This terminal is specifically designed for use with Micro MATE-N-LOK connector housings.

The dual beam contact design provides a robust and secure electrical connection, enhancing reliability.

Specific dimensions are not provided, but it is designed to fit within the Micro MATE-N-LOK connector system.
