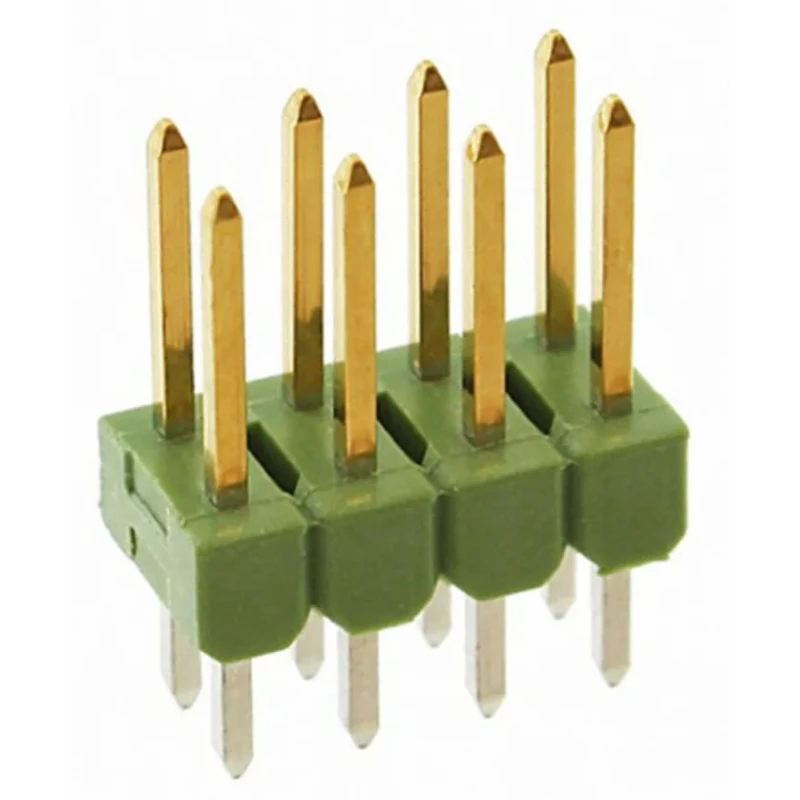

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 8 Contact 2.54 mm Pitch 2 Row Unshrouded 826632-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826632-4 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features a 2.54 mm pitch spacing with two rows of straight, unshrouded male pins.
- Constructed from polybutylene terephthalate housing for durability and heat resistance.
- Brass contacts with gold plating enhance conductivity and corrosion resistance.
- Designed for through-hole mounting, suitable for board-to-board and wire-to-board connections.
- Operates reliably in temperatures ranging from -65°C to 105°C.
- Supports up to 3A current and voltage rating of 750V for robust electrical performance.
- Tail pin length of 3.2 mm and mating pin length of 6.7 mm ensure secure connections.
- Breakaway design allows custom sizing for efficient installation and cost-saving.
Product Description
TE Connectivity 826632-4 AMPMODU MOD II Series Straight Through Hole Pin Header features 8 male pin contacts arranged in two rows at a 2.54 mm pitch, providing reliable circuit board connections.
The housing is made of polybutylene terephthalate, which offers excellent mechanical strength and thermal stability, supporting operation from -65°C up to 105°C.
This unshrouded pin header enables versatile board-to-board and wire-to-board interconnections. The brass contacts are gold plated to ensure low contact resistance and high corrosion resistance over the product life.
The breakaway design allows users to customize the number of pins by breaking the header to the required length, resulting in time and labor savings during PCB assembly. Mounting is through-hole type, suitable for soldering on printed circuit boards in industrial, automotive, telecommunications, computing, and medical applications.
2.54 mm pitch and 2 rows of contacts provide compact and reliable connectivity. Polybutylene terephthalate housing offers durability under industrial temperature ranges. Gold-plated brass contacts maintain high electrical performance and corrosion resistance.
Unshrouded design eases plug-in of mating connectors. Breakaway feature allows easy customization of header length. Supports up to 3A current and 750V voltage rating. Ideal for automotive controls, industrial test equipment, telecommunications, medical instruments, storage equipment, and computing devices.
This AMPMODU Interconnect system is recognized for its reliability and economical design across varied industrial and automation applications. Compatible with a broad range of connectors, it suits diverse electronic assembly needs.
Explore EnvMart for the complete portfolio of TE Connectivity PCB headers and connectors to enhance your electronic design projects.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm.
This model has 8 male pin contacts arranged in two rows.
It supports a maximum voltage rating of 750V.
The pin header is rated for a maximum current of 3A.
The housing is made from polybutylene terephthalate, and the contacts are brass with gold plating.
It operates reliably within a temperature range of -65°C to 105°C.
This model is designed for through-hole mounting, suitable for soldering on printed circuit boards.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
It supports board-to-board and wire-to-board connections.
Yes, it features a breakaway design that allows for easy customization of the number of pins.
It is suitable for applications in industrial, automotive, telecommunications, computing, and medical fields.
