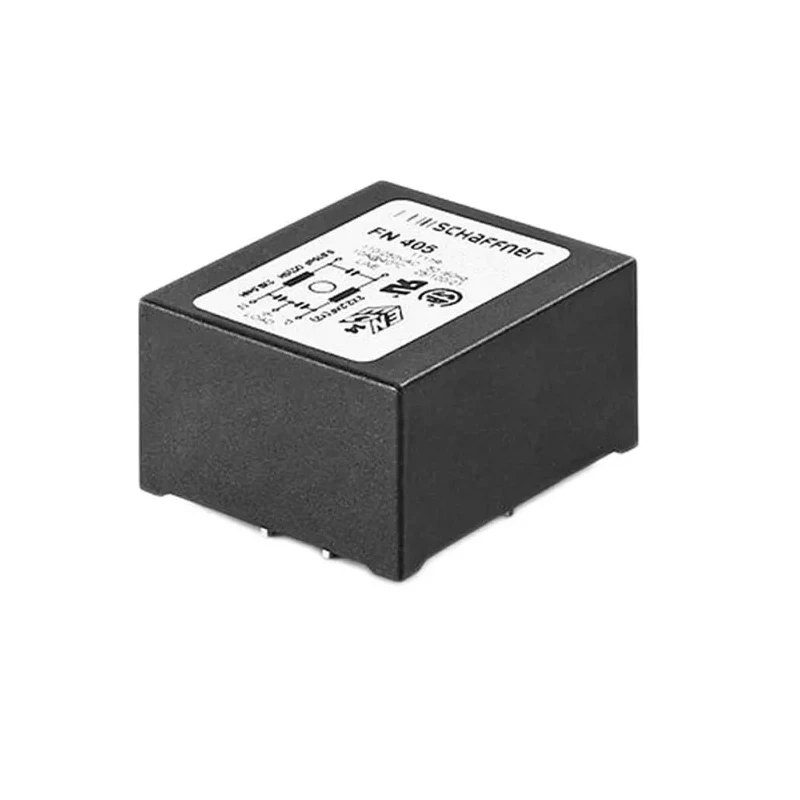

Schaffner Single-Phase PCB EMI Filter 1 A 250V AC 400Hz, Pin Termination FN405
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 19.5mm |
| Length | 36mm |
| Model | FN405 |
| Depth | 31mm |
| Mount Type | PCB |
| Operating Frequency | 400Hz |
| Series | FN405 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 15nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 1A |
| Number of Phases | 1 |
| Leakage Current | 373μA |
| Maximum Voltage | 250V ac |
| Inductance | 10mH |
| Termination Style | Pin |
Key Features
- The PCB mount type allows easy and fast mounting onto printed circuit boards.
- Pin termination style ensures reliable electrical connections.

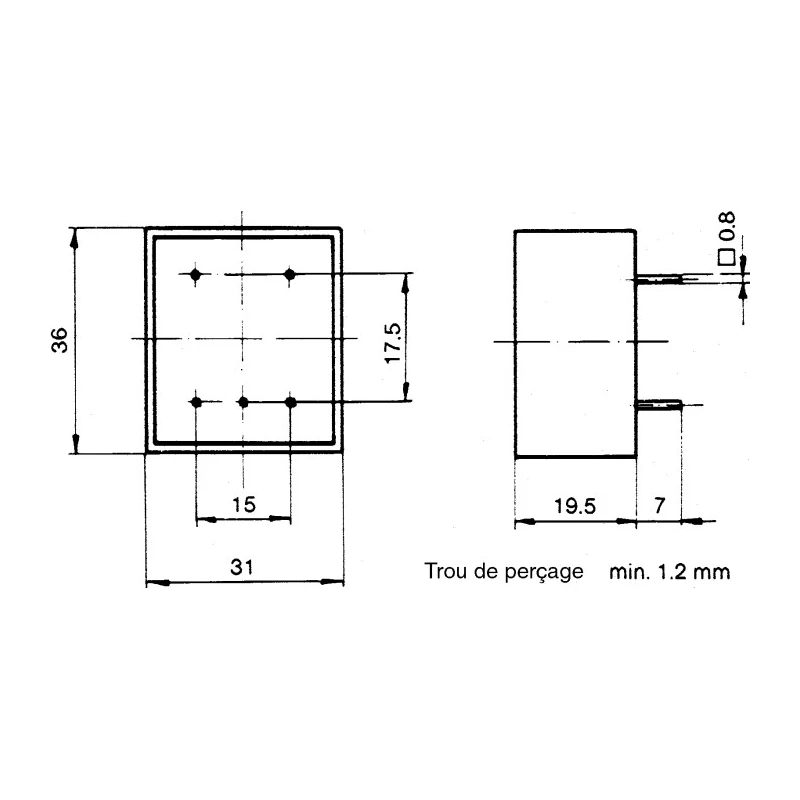

- Compact dimensions of 36mm length, 31mm depth, and 19.5mm height suit space-sensitive applications.
- Operates in temperatures ranging from -25°C to 100°C, suitable for various environments.
- Features a capacitance of 15nF and inductance of 10mH to meet filtering requirements.
- Leakage current is low at 373μA, enhancing electrical safety.
- Designed for single-phase electrical supply with one stage filtering.
- Plastic housing provides durability with low profile design.
Product Description
Schaffner FN405 single-phase PCB EMI filter is engineered for effective suppression of electromagnetic interference on power lines, rated at 1 A current and 250V AC voltage at 400Hz operating frequency. Its design with pin termination enables secure PCB mounting, ensuring seamless integration into electronic circuits.
The filter features a plastic housing with a compact size of 36mm length, 31mm depth, and 19.5mm height, offering a low profile suitable for space-constrained applications. Capacitance of 15nF combined with inductance of 10mH provides robust attenuation of conducted noise.
Designed for operation within a temperature range of -25°C to 100°C, this filter maintains performance under diverse environmental conditions. The leakage current is limited to 373 microamperes, supporting safety compliance in electronic assemblies.
As a single-phase, single-stage EMI filter, it is ideal for use in electrical and electronic equipment including small to medium machines, household appliances, single-phase power supplies, switch-mode power supplies, and test & measurement devices.
The PCB mount type allows easy and fast mounting onto printed circuit boards. Pin termination style ensures reliable electrical connections. Compact dimensions of 36mm length, 31mm depth, and 19.5mm height suit space-sensitive applications.
Operates in temperatures ranging from -25°C to 100°C, suitable for various environments. Features a capacitance of 15nF and inductance of 10mH to meet filtering requirements. Leakage current is low at 373μA, enhancing electrical safety.
Designed for single-phase electrical supply with one stage filtering. Plastic housing provides durability with low profile design. Applicable for electrical and electronic equipment, small to medium machines, and household devices.
It meets the needs of industries ranging from industrial electronics to consumer household equipment, contributing to improved electromagnetic compatibility (EMC) and operational reliability.
Explore more Schaffner components and EMI Filter solutions on EnvMart for specialized industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN405 EMI filter has a maximum current rating of 1 A.
It operates at a maximum voltage of 250V AC.
This model has compact dimensions of 36mm in length, 31mm in depth, and 19.5mm in height.
The FN405 operates within a temperature range of -25°C to 100°C.
It features a capacitance of 15nF.
The inductance of the FN405 is 10mH.
This model utilizes a PCB mount type for easy and fast installation onto printed circuit boards.
The leakage current is limited to 373μA, enhancing electrical safety.
The FN405 is designed as a single-stage EMI filter.
It operates at an operating frequency of 400Hz.
The FN405 EMI filter is manufactured in India.
This EMI filter is suitable for use in electrical and electronic equipment, small to medium machines, and household appliances.
