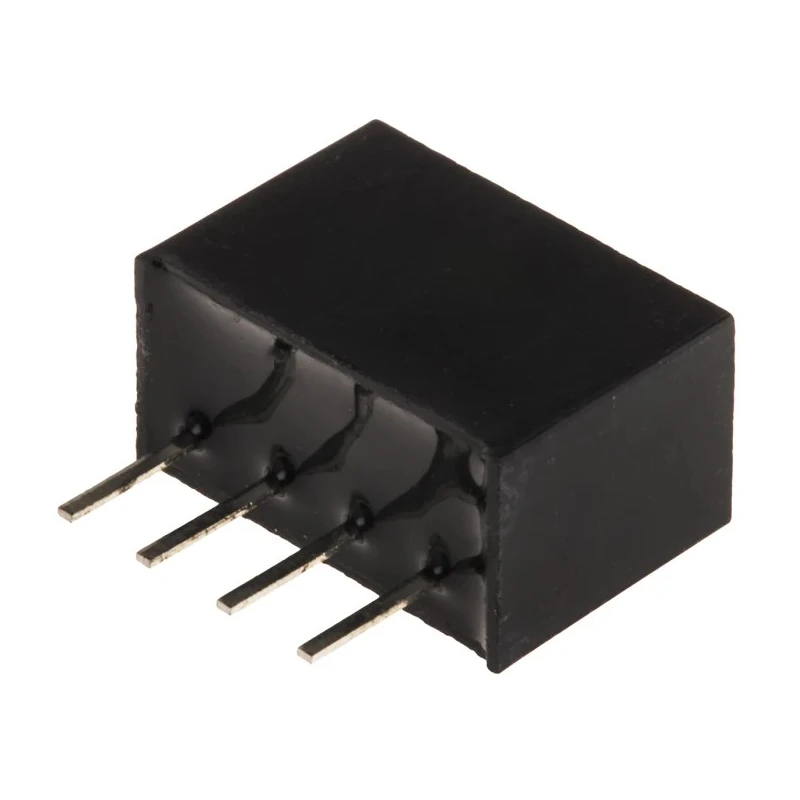

Recom DC/DC Converter, 5V DC Output 200mA, 13.2V DC Max Input, 10.8V Min Input, 1W Power, Through Hole SIP Package ROM-1205S

Recom ROM-1205S is a highly reliable DC/DC Converter designed for electronic assemblies requiring isolated and regulated 5V output at a continuous current of 200mA and maximum power output of 1W. It operates from a DC input voltage range of 10.8V to 13.2V and features a through-hole SIP (Single Inline Package) form factor suitable for easy mounting on printed circuit boards.

This converter provides an isolation voltage of 3kV DC between input and output circuits, ensuring safety and noise reduction in industrial and commercial applications including telecommunications, instrumentation, industrial automation, and power management systems. The unit maintains efficient operation with an efficiency rating of up to 78% under full load conditions, contributing to reduced heat generation and energy savings.

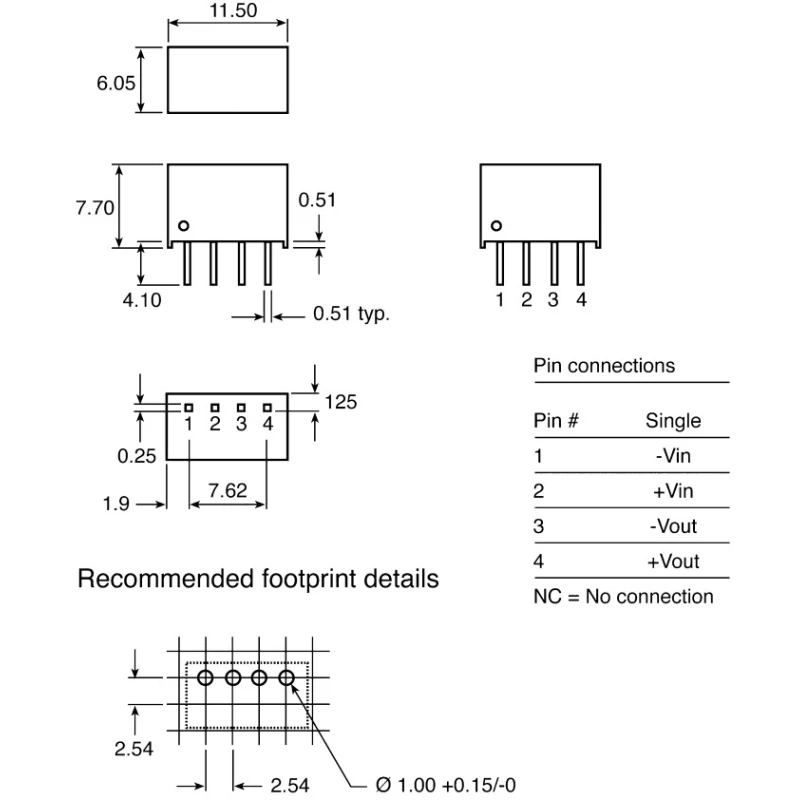

Its compact size, with dimensions of 11.5mm length, 6.05mm width, and 7.7mm depth, allows integration into space-constrained designs. The ROM-1205S is built with UL 94V-0 flame-retardant material, supporting safety compliance without requiring additional cooling solutions under normal operating temperatures. The device is rated for operation across a wide ambient temperature range from -40°C to 85°C without derating, making it suitable for harsh environments.

The converter features a standard pin configuration aligned with the ROM series, facilitating drop-in replacement and development efficiency. Its robust build and a mean time between failure (MTBF) of 977,000 hours underline the product’s suitability for long-term dependable use in critical electronic equipment.

Manufactured in Taiwan, Province Of China, the Recom ROM-1205S meets industry standards such as EN60950-1 and EN60601-1, supporting broad regulatory requirements. This DC-DC converter is ideal for industrial, laboratory, and telecommunication power supply modules where clean, isolated voltage conversion is needed.

Supports input voltage range from 10.8V to 13.2V DC. Provides single isolated output with 3kV DC isolation voltage for safety. Operates efficiently with up to 78% efficiency at full load. Compact dimensions: 11.5mm length, 6.05mm width, and 7.7mm depth.

Maintains stable operation from -40°C to 85°C ambient temperature. Long mean time between failures (MTBF) of 977,000 hours ensures high reliability. Industry-standard pinout simplifies PCB design and integration. UL 94V-0 package material supports flame retardancy compliance.
