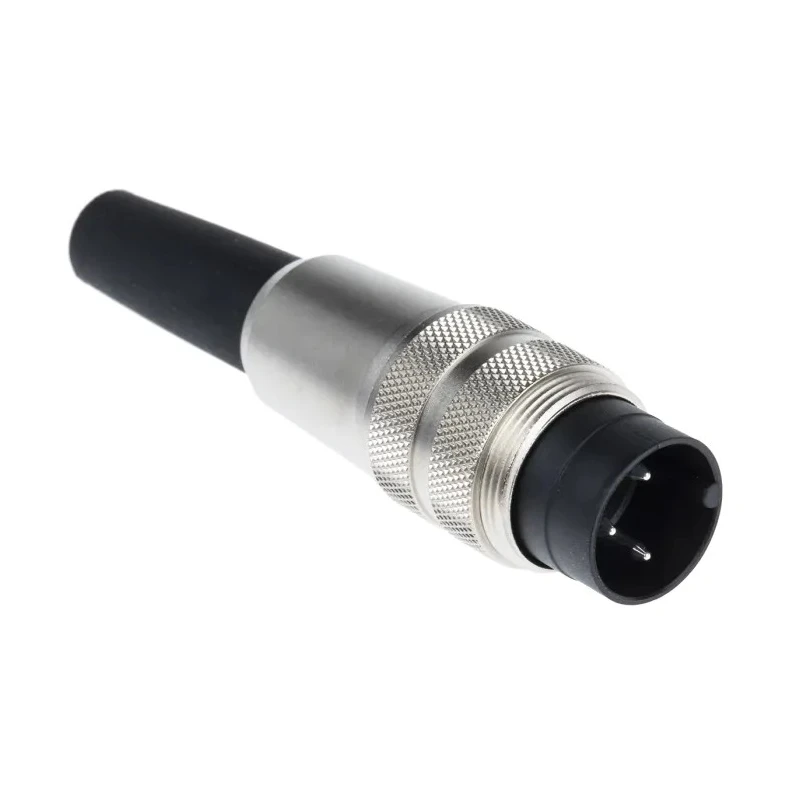

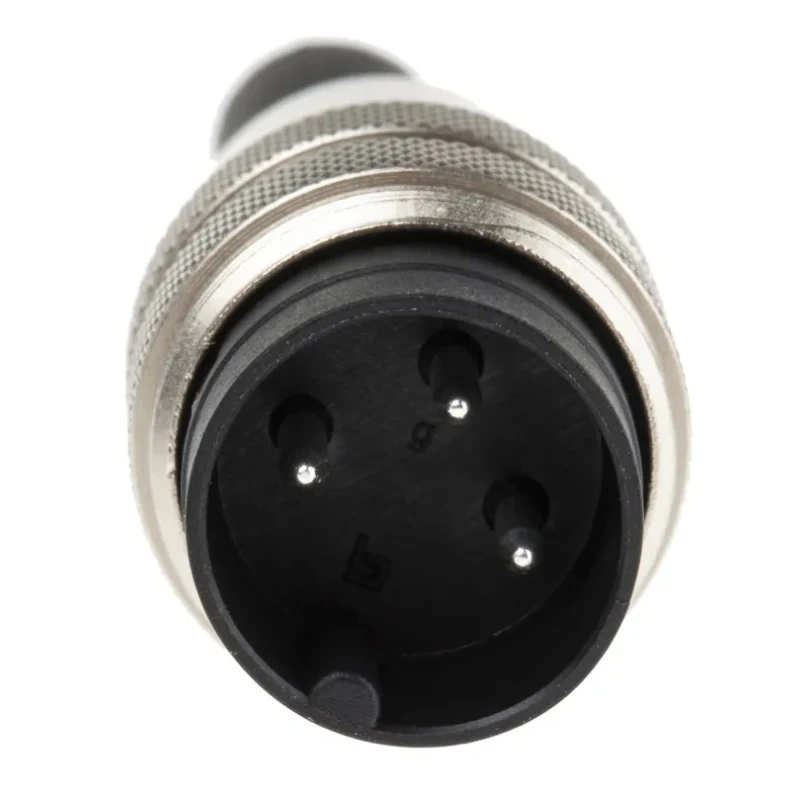

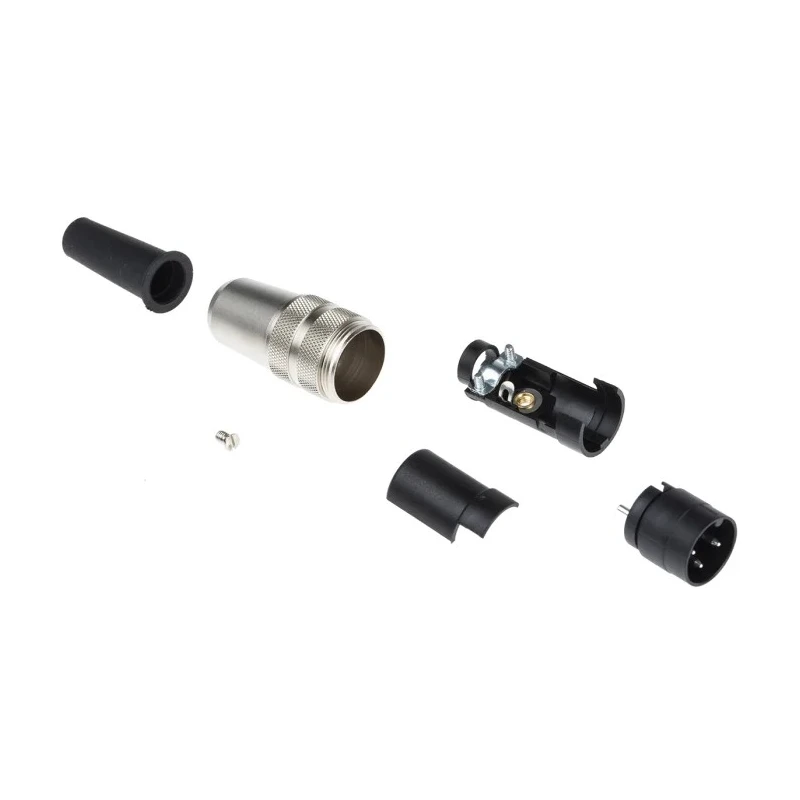

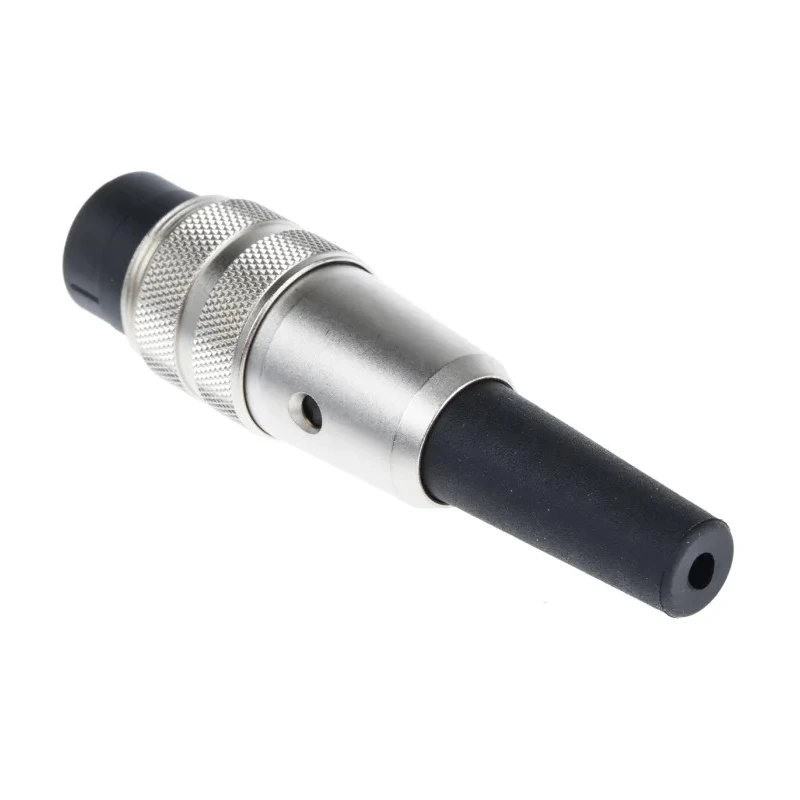

binder Circular Connector, 3 Contacts, Cable Mount, Plug, Male, M16 Size, Screw Mating, IP40, Polyamide 09-0305-00-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Mating Type | Screw |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- Features a cable mount plug with three brass silver-plated contacts.
- Screw mating mechanism ensures secure threaded engagement.
- Polyamide housing provides lightweight electrical insulation.
- Rated to 7A and 250V for moderate power signals.
- Operating temperature range from -40°C to 85°C for wide environmental tolerance.
- Solder termination for reliable and permanent cable connections.
- IP40 ingress protection suitable for indoor use.
- Designed as a straight orientation, male plug connector.
Product Description
binder 09-0305-00-03 Circular Connector is an industrial-grade cable mount plug designed for reliable three-contact connections in control, instrumentation, and automation panels. With its M16 connector size and screw mating interface, the male plug ensures secure, threaded engagement between plug and socket for robust signal and low-power distribution tasks.
Housed in durable polyamide, this plug provides lightweight electrical insulation and environmental tolerance. The connector is rated for 7A current and up to 250V, supporting a range of sensor, actuator, and control room wiring applications. Its operating temperature range of -40°C to 85°C makes it suitable for demanding industrial environments.
Contains 3 contacts constructed from brass and finished with silver plating to enhance surface conductivity and reduce resistance. The orientation is straight, aiding streamlined installation in tight spaces. Solder termination allows for permanent, low-resistance cable joints, making this connector ideal for precision signal transmission.
The IP40 rating protects against ingress for indoor, non-condensing environments. The M16 size with 18.5 mm shell delivers compatibility with standard panels and enclosures. Screw type mechanical securing guarantees positive engagement and longevity.
Commonly used for sensor and actuator cabling in automation panels, connection of control-room wiring looms, interlinking modules in test and measurement rigs, and distributing small motor control signals.
This product is part of binder's 680 Series, known for reliability in Industrial Circular Connectors. Applications span manufacturing, process control, test & measurement, and commercial electronics installations.
Choose EnvMart for certified industrial connectors from leading brands like binder. Explore more circular connectors in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 7A.
It has a voltage rating of 250V.
This model features solder termination for reliable and permanent cable connections.
The operating temperature range is from -40°C to 85°C.
It has an IP40 ingress protection rating, suitable for indoor use.
This circular connector features three contacts.
The housing is made of polyamide, and the contacts are constructed from brass with silver plating.
The shell size of this connector is 18.5 mm.
It uses a screw mating mechanism to ensure secure threaded engagement.
This model is designed with a straight orientation.
It is commonly used for sensor and actuator cabling in automation panels and for control-room wiring looms.
The country of origin for this connector is Germany.
