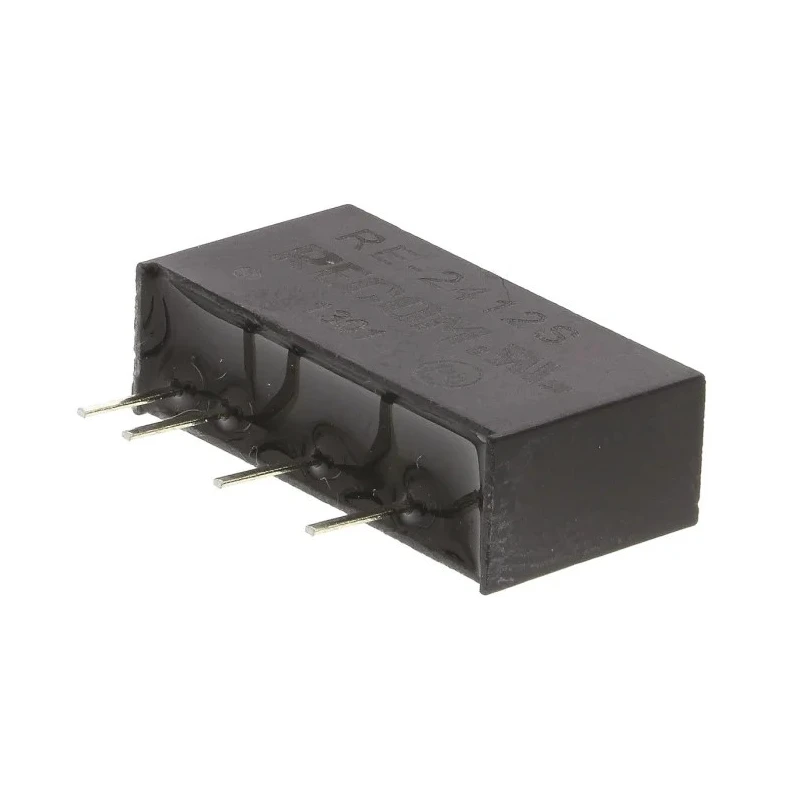

Recom DC/DC Converter, 12V dc Output, 84 mA, 24V dc Input, 1W Power, Through Hole SIP Package RE-2412S

The Recom RE-2412S is a high-quality DC/DC Converter providing a regulated 12V dc output at 84 mA with a maximum output power of 1 W. This converter is designed with a through hole SIP package, making it suitable for easy through-hole PCB mounting in a wide range of industrial and electronic applications.

It accepts input voltages ranging from 21.6V dc minimum up to 24V dc maximum, offering reliable power conversion for various equipment. Featuring an advanced isolation voltage of 1 kV dc, it enhances system safety by preventing unwanted current flow and interference between input and output circuits.

The converter has an output voltage adjustment range between 3.3 V and 24 V, allowing customization to specific circuit requirements. Its operational temperature range of -40°C to 85°C ensures robustness in demanding environments, including industrial, laboratory, and instrumentation settings.

With an efficiency of 84% and a low ripple and noise specification of 100 mV peak-to-peak, it offers stable and efficient performance suitable for sensitive electronic circuitry. The compact SIP package dimensions of 19.6 mm length, 10.2 mm width, and 10.2 mm depth provide space-saving solutions in constrained assemblies.

The unit weighs 2.2 grams, making it lightweight and well-suited for embedded systems and portable devices. Compliant with RoHS and UL standards, it meets environmental and quality assurance requirements. Ideal for use in power supplies, voltage regulation in electronic devices, and embedded control systems in industrial and commercial applications.

Explore additional Recom products and DC/DC Converters on EnvMart for versatile power supply solutions. This converter features a through hole SIP package for easy PCB mounting. It supports a maximum input voltage of 24V dc and a minimum of 21.6V dc.

The output current is 84 mA with an output voltage adjustment range of 3.3 to 24 V. It offers 1 kV dc isolation for enhanced safety and reliability. The device operates efficiently with 84% efficiency and low ripple noise of 100 mV peak-to-peak.

Operating temperature ranges from -40°C to 85°C without derating. Measures 19.6 mm in length, 10.2 mm in width and depth, weighing approximately 2.2 g. Complies with RoHS and UR standards ensuring quality and environmental safety.
