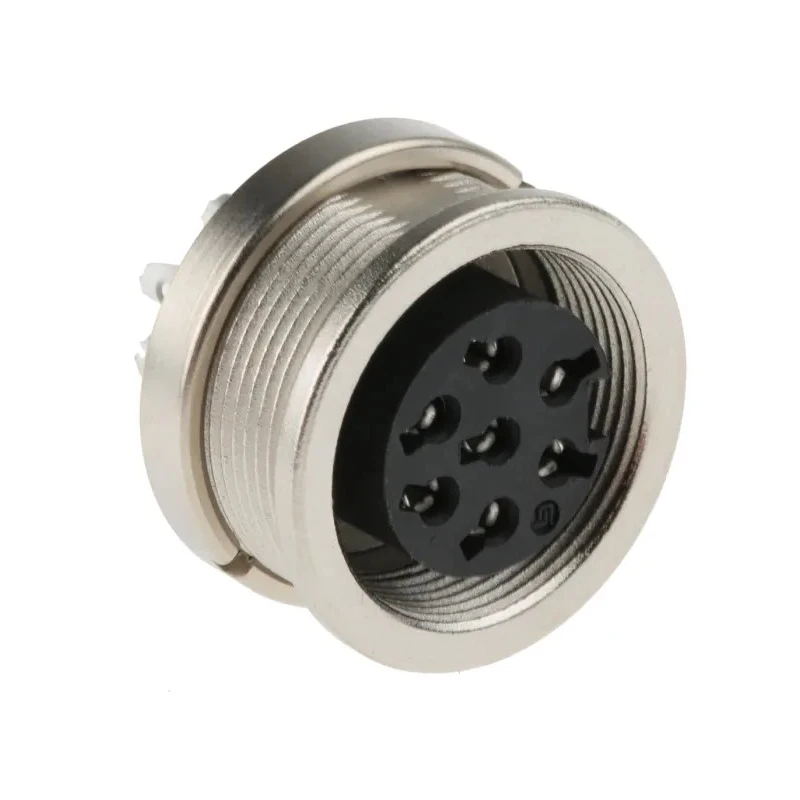

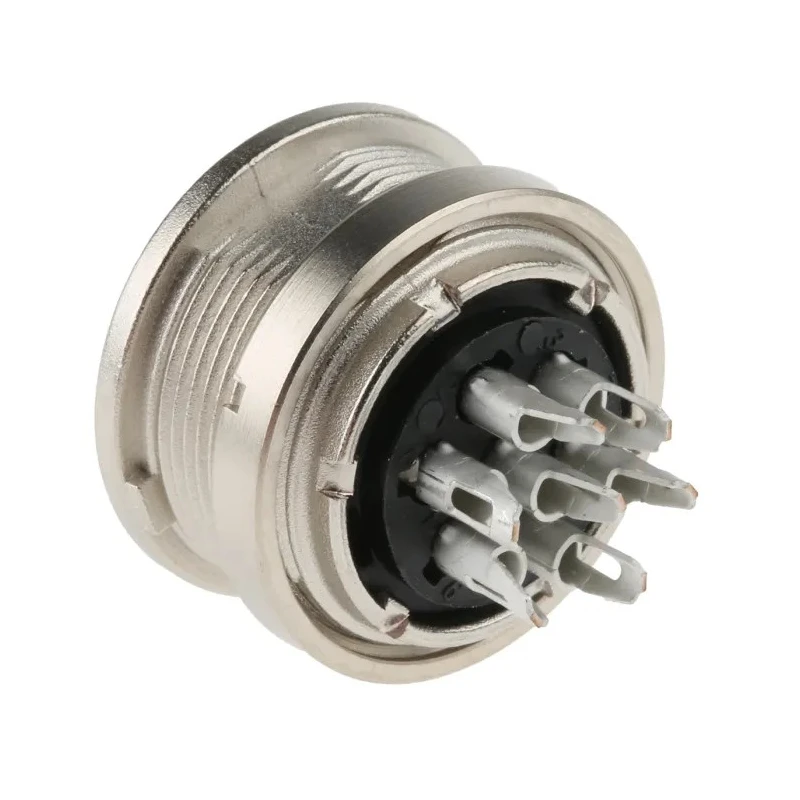

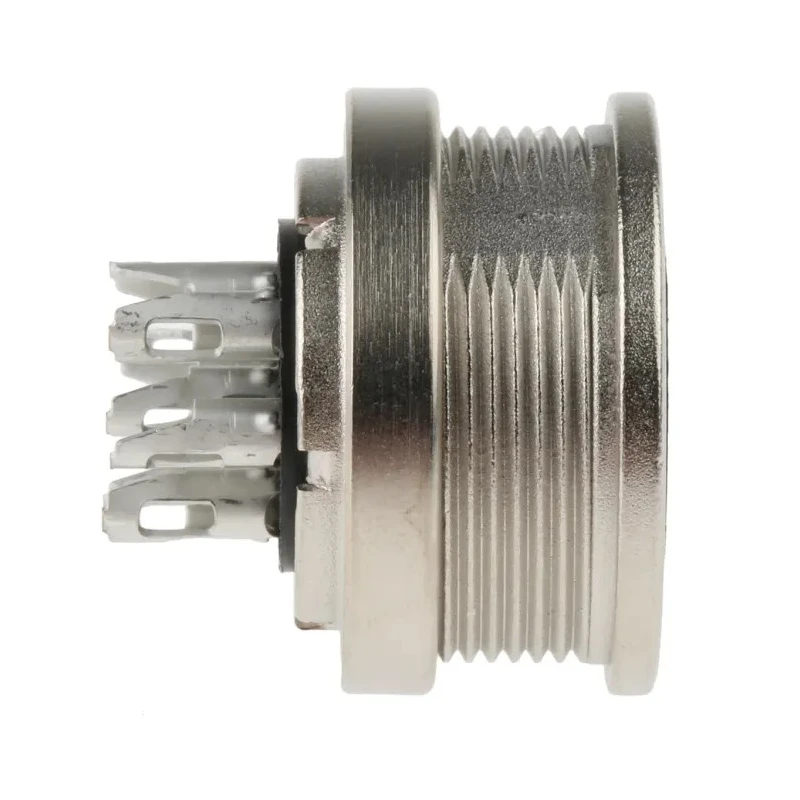

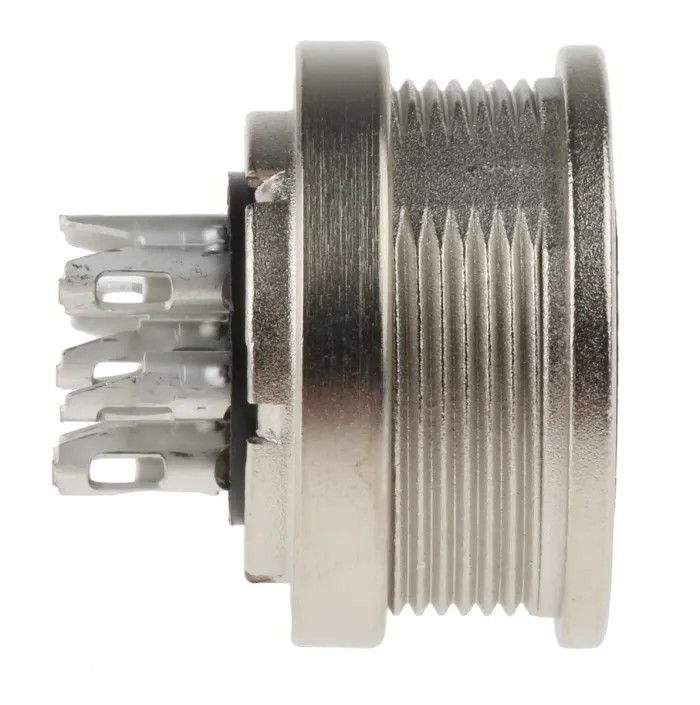

binder Circular Connector Panel Mount M16 Socket Female 7 Contacts IP40 Silver Brass 680 Series 09-0328-00-07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Designed for panel mounting and secure electrical connections.
- Features 7 contacts with solder termination for versatile use.
- Rated for up to 5A current and 125V voltage.
- Socket type connector with female contact gender.
- IP40 protection for dust resistance in industrial environments.
- Housing is robust die-cast zinc for durability.
- Silver-plated brass contacts for reliable conductivity and longevity.
- Straight orientation and compact M16 connector size.
Product Description
binder 09-0328-00-07 Circular Connector offers a reliable solution for panel-mounted electrical connectivity in industrial environments. With a compact M16 design, this socket connector features 7 contacts and a female contact gender, providing versatile connection options for control and signal applications.
The connector is designed for panel mount installations and utilizes solder termination for easy and secure assembly. Its robust die-cast zinc housing delivers durability, while silver-plated brass contacts ensure high conductivity and extended lifecycle by preventing oxidation.
With a current rating of 5A and a voltage rating up to 125V, this connector is suitable for demanding applications such as machine tool controls, industrial automation systems, instrumentation, and medical devices. Its IP40 rating provides basic dust resistance, making it suitable for a range of indoor and protected environments.
Operating temperature spans from -40°C to +85°C, maintaining performance stability even in challenging conditions. The straight connector orientation and standard M16 size enable compatibility with many panel configurations.
The Binder 680 Series connectors feature multiple options for termination due to their miniature panel mounting size, helping engineers adapt to varied requirements. Designed for panel mounting and secure electrical connections.
Features 7 contacts with solder termination for versatile use. Rated for up to 5A current and 125V voltage. Socket type connector with female contact gender. IP40 protection for dust resistance in industrial environments.
Housing is robust die-cast zinc for durability. Silver-plated brass contacts for reliable conductivity and longevity. Straight orientation and compact M16 connector size. Operates in temperatures from -40°C to +85°C. Ideal for medical equipment, machine tool control, automation, and instrumentation applications.
Common industrial use cases include electrical interfacing in automation, medical equipment, machine tools, and laboratory instrumentation. Browse more binder Industrial Circular Connectors on EnvMart for precision connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 5A and a voltage of up to 125V.
This connector has an IP40 rating, providing basic dust resistance suitable for indoor and protected environments.
The operating temperature spans from -40°C to +85°C, ensuring performance stability in various conditions.
It utilizes solder termination for secure and reliable connections.
The housing is made of robust die-cast zinc, and the contacts are silver-plated brass for reliable conductivity.
This model features 7 contacts with a female contact gender.
It has a compact M16 size with a straight orientation, making it suitable for various panel configurations.
Common applications include machine tool controls, industrial automation systems, instrumentation, and medical devices.
The connector is manufactured in Germany.
The shell size of this model is 18.5 mm.
This connector is part of the Binder 680 Series.
Yes, it is specifically designed for panel mount installations, providing secure electrical connections.
