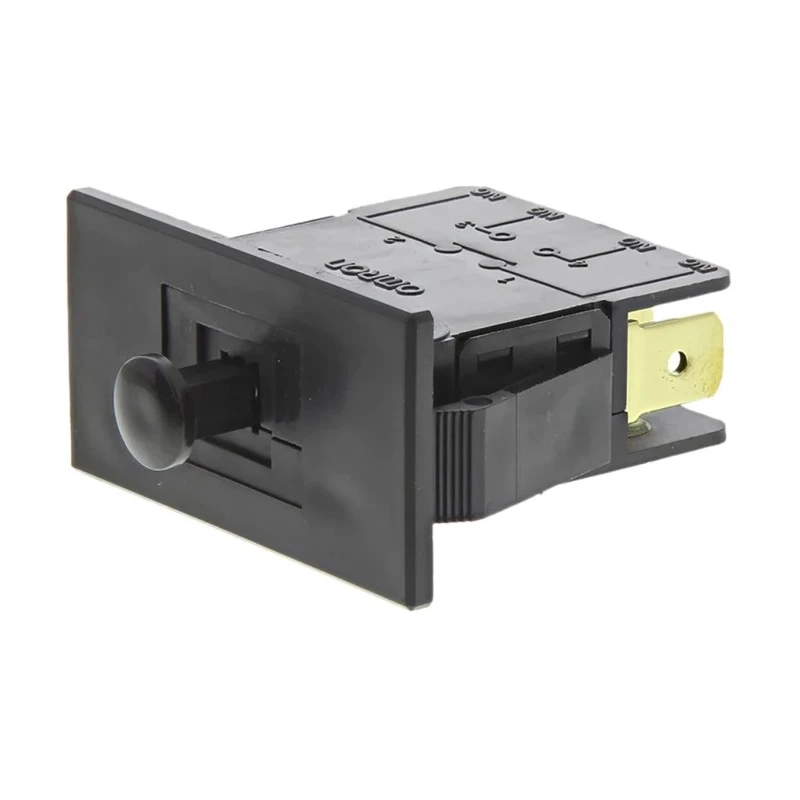

Omron Door Micro Switch Plunger SPDT 16 A IP40, 85°C Max, -25°C Min
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Length | 30mm |
| Model | IP40 |
| Depth | 13mm |
| IP Rating | IP40 |
| Width | 21.2mm |
| Housing Material | Silver |
| Series | D2D |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Tab |
| Standards/Approvals | VDE, CSA, RoHS, UL, TUV |
| Contact DC Voltage | 5V dc |
| Operating Force | 2.94N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Contact Current | 16A |
| Aratas Door Micro Switch Plunger, SPDT 10 A IP40, 85 °C, -25 °CBrand | Omron |
Key Features
- Features a plunger actuator type for precise control.
- Single Pole Double Throw (SPDT) contact configuration rated at 16 amps.
- IP40 protection for dust ingress resistance.
- Suitable for operating voltages up to 250V AC and 5V DC contact voltage.
- Durable silver housing with tab terminals for easy connectivity.
- Robust mechanical life of 1,000,000 operations ensures long service.
- Low operating force required at 2.94 Newtons for reliable actuation.
- Compact dimensions of 30 mm length, 21.2 mm width, and 13 mm depth.
Product Description
Omron D2D-2100 Door Micro Switch with a plunger actuator provides single pole double throw (SPDT) switching capability rated for 16 amps. It features an IP40 rating protecting against solid objects greater than 1 mm, making it suitable for indoor electrical and automation applications.
This micro switch operates reliably within the temperature range of -25°C to 85°C and supports contact voltages of 250 volts AC and 5 volts DC. The actuator requires an operating force of 2.94 newtons, ensuring responsive and stable switching performance.
The robust design includes a silver housing and tab terminal connections, offering durability and ease of installation. Compact size dimensions of 30 mm length, 21.2 mm width, and 13 mm depth make it adaptable for confined spaces.
With a mechanical life expectancy of 1,000,000 operations, this switch is engineered for longevity in industrial, commercial, and safety control scenarios, particularly as a door interlock switch. Compliance with multiple international safety and quality standards including VDE, CSA, UL, TUV, and RoHS guarantees certified reliability.
The D2D series door micro switch includes failsafe double return springs and direct positive contact opening features which enhance safety and operational certainty in automation systems.
Includes plunger actuator for precise control. SPDT contact configuration rated at 16 A. IP40 protection suitable for indoor use. Operating temperature range from -25°C to 85°C. Mechanical life of 1,000,000 operations ensures durability.
Low operating force of 2.94 N. Compact dimensions fit tight spaces. Compliances with VDE, CSA, UL, TUV, and RoHS certifications. Suitable for electrical, automation, and safety applications. Designed for door interlock switch usage with failsafe mechanisms.
Explore more on Micro Switches and automation controls at EnvMart for technical products matched with industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating for this micro switch is 16 amps.
This model operates reliably within a temperature range of -25°C to 85°C.
It uses a plunger actuator type for precise control.
The micro switch has an IP40 rating, providing protection against solid objects greater than 1 mm.
The dimensions of this micro switch are 30 mm in length, 21.2 mm in width, and 13 mm in depth.
The mechanical life expectancy of this switch is 1,000,000 operations.
It complies with multiple standards including VDE, CSA, UL, TUV, and RoHS.
The required operating force for actuation is 2.94 newtons.
This model features tab terminal connections for easy connectivity.
It supports contact voltages of up to 250V AC and 5V DC.
No, this micro switch is rated IP40, making it suitable for indoor use only.
This micro switch is designed for electrical, automation, and safety applications, particularly as a door interlock switch.
