| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS3 DC/DC Converter, 12V, -12 V/, 36V dc Inp |
| Brand | Recom |
| Efficiency | 81% |
| Length | 21.8mm |
| Model | RS3-2412D |
| Depth | 11.1mm |
| Gross Weight | 4.7g |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 745000h |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS, UR |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 12, -12V |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 500V ac |
| Output Current 2 | 125mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |

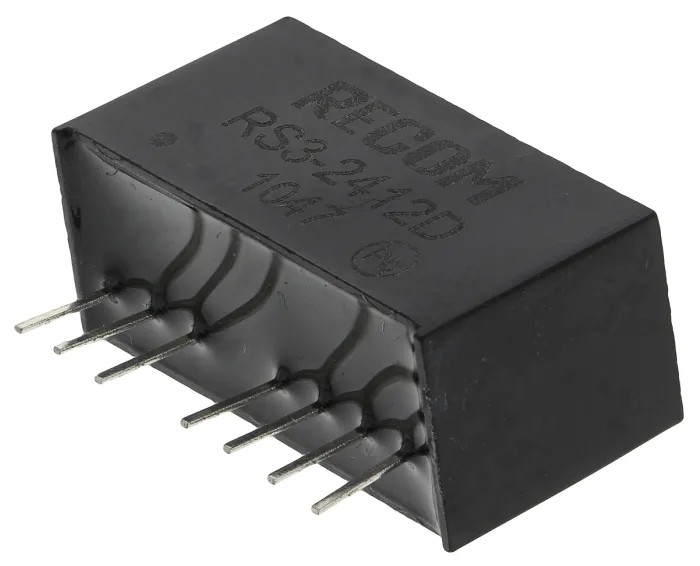

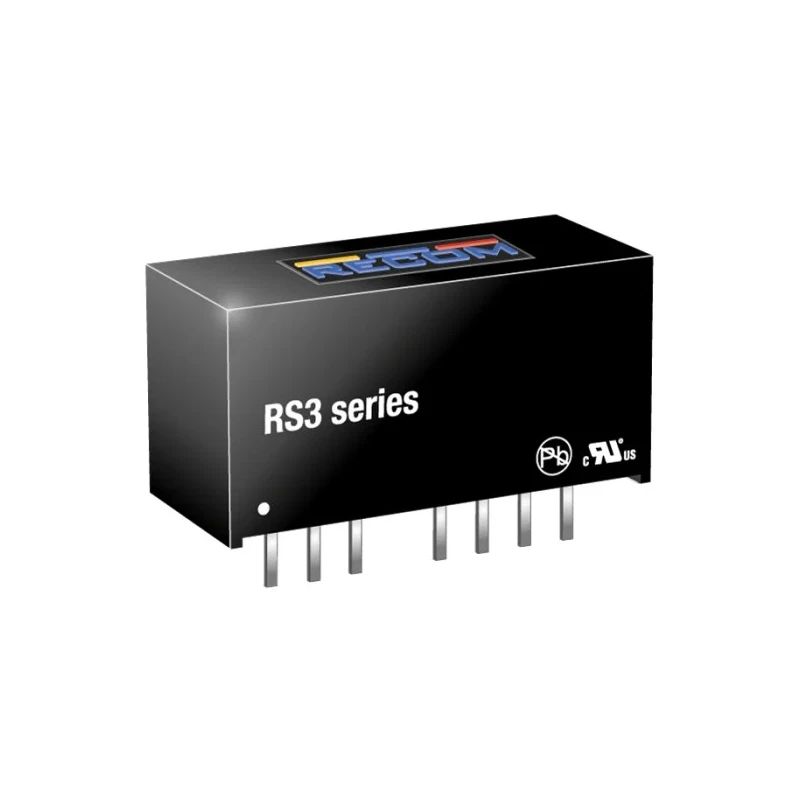

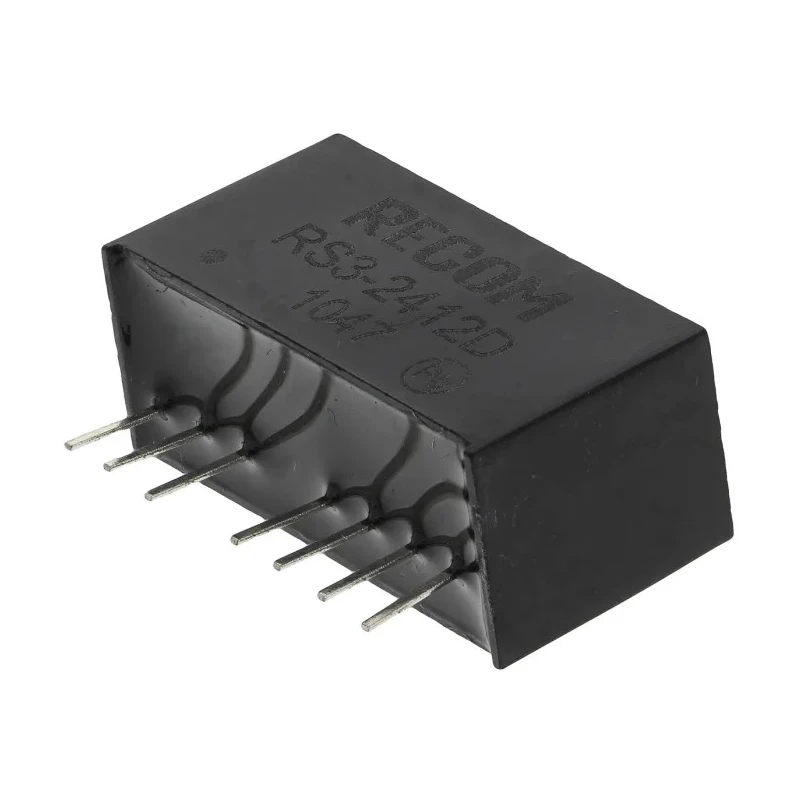

Recom RS3-2412D is a reliable and efficient DC/DC converter designed to deliver regulated ±12V outputs with a maximum power of 3W. This compact module features a SIP-8 through hole package with dimensions 21.8mm (L) x 9.2mm (W) x 11.1mm (D), making it ideal for space-constrained applications in industrial, medical, and renewable energy sectors.
The converter supports unregulated input voltages from 18V to 36V DC and provides dual outputs at ±12V with a 125mA output current. It maintains low ripple and noise levels of 50mV peak to peak, ensuring stable power delivery to sensitive electronics. Operating efficiently at 81% efficiency reduces heat dissipation, enabling operation without additional heatsinks.
Designed for robustness, it provides an isolation voltage of 500V AC to protect connected equipment from electrical surges. Operating temperature ranges from -40°C to 85°C, allowing functionality in demanding environments. Additionally, continuous short-circuit protection safeguards both the converter and connected devices.
This converter is suitable for various applications including smart lighting systems, small-scale electronics, renewable energy integration, and medical devices, owing to its reliable voltage regulation and compact size.
Unregulated 18-36V DC input voltage range. ±12V dual regulated output at 125mA current. Low 50mV ripple and noise ensures clean output voltage. Compact SIP-8 through hole package for easy PCB mounting. High efficiency of 81% minimizes energy loss.
Isolation voltage of 500V AC adds surge protection. Operating temperature range from -40°C to 85°C for versatility. Continuous short-circuit protection increases reliability. Complies with RoHS and UR certifications for quality assurance.
Recom RS3-2412D is an excellent choice for engineers and designers seeking a compact and efficient DC/DC converter module for varied industrial, laboratory, and commercial electronics power supply needs. Its robust performance and protective features make it suitable for demanding environments.
