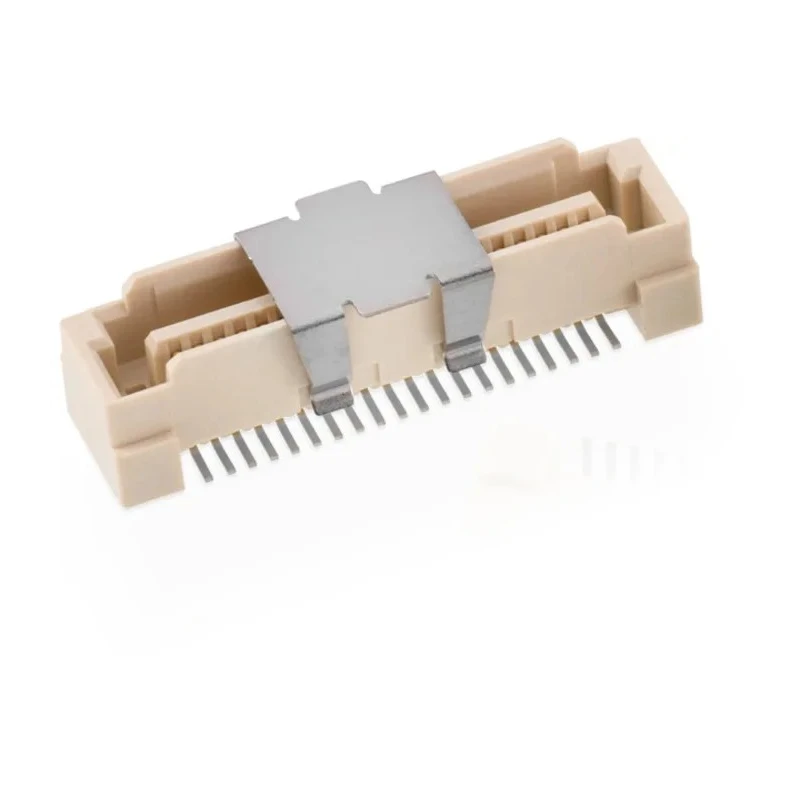

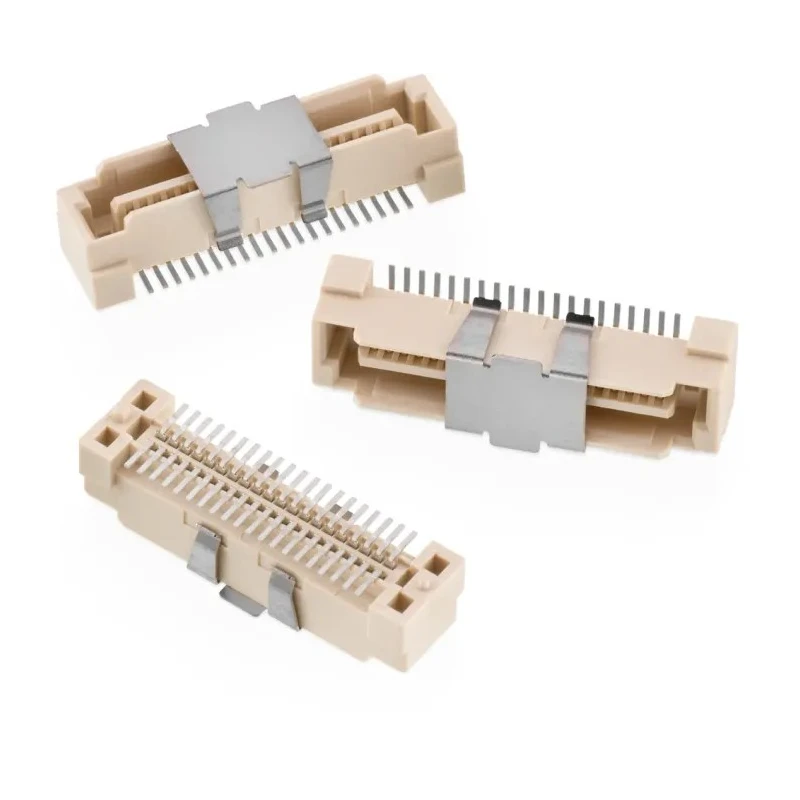

Wurth Elektronik WR-BTB Series Vertical Surface PCB Header 40 Contacts 0.8 mm Pitch 1 Row Shrouded 658855603040

Wurth Elektronik 658855603040 is a high-quality WR-BTB Series vertical surface PCB header designed for board-to-board connections. It features 40 male contacts arranged in a single row with a pitch of 0.8 mm, ensuring compact and efficient connections in electronic assemblies. The connector is shrouded, providing protection and reliable mating to prevent misalignment during installation.

The housing material is Liquid Crystal Polymer (LCP), known for its robustness and high mechanical strength, suitable for demanding industrial environments. Gold-plated copper alloy contacts ensure excellent electrical conductivity and corrosion resistance, ideal for long-term performance.

This component is rated for a continuous current of 500 mA and a voltage of 50 V, withstanding voltages up to 500 V (AC). It operates reliably within a temperature range of -55°C to 85°C, making it suitable for diverse temperature conditions encountered in industrial, manufacturing, and electronic equipment applications.

Designed for vertical orientation and surface-mount technology (SMT) mounting, this PCB header simplifies installation on printed circuit boards while maintaining optimal electrical connections. The shrouded construction enhances safety by shielding the contacts and reducing the risk of accidental contact or damage.

Constructed with Liquid Crystal Polymer housing for durability. Features gold-plated copper alloy contacts ensuring excellent conductivity. Operates in a temperature range from -55°C to 85°C. Supports a current of up to 500mA at 50V voltage.

Vertical orientation with surface mount technology for PCB applications. Shrouded design offers protection and secure mating. Suitable for use in industrial automation, electronic manufacturing, and power distribution equipment.

Compact 0.8 mm pitch suitable for space-constrained designs.

This Wurth Elektronik WR-BTB Series PCB header is ideal for industrial, electronic component assembly, and laboratory usage where reliable PCB connections are critical. Its robust design and trusted manufacturing origin from China reflect quality and performance assured for demanding environments.
