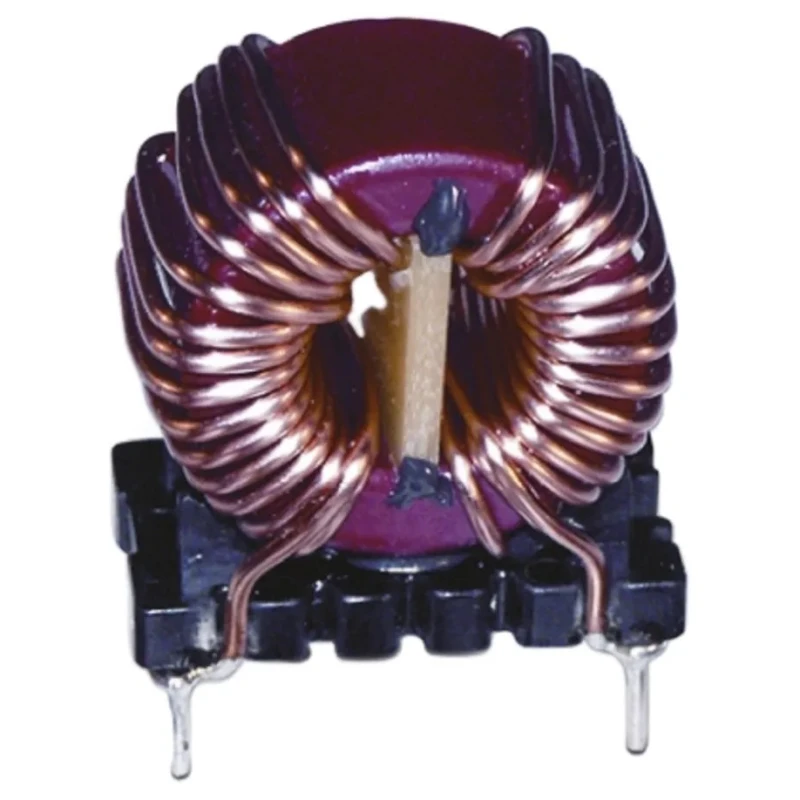

Wurth Elektronik 10 mH 1 A Common Mode Choke 360 mΩ 230V 744822110
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 22mm |
| Length | 17.5mm |
| Depth | 13mm |
| Mount Type | Radial |
| Series | WE-CMB HC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Inductance | 10mH |
| Standards/Approvals | VDE, ENEC, REACH, RoHS |
| Maximum DC Current | 1A |
| Pin Count | 4 |
| Maximum DC Resistance | 360mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder Pad |
| Choke Voltage | 230V |
Key Features
- Compact radial mount design for easy PCB integration.
- Rated 230 V choke voltage suitable for power electronics.
- Inductance tolerance of ±30% ensuring stable performance.
- Wide operating temperature range from -40°C to 125°C.
- Low DC resistance of 360 milliohms to minimize power loss.
- Compliant with VDE, ENEC, REACH, and RoHS standards.
- Features solder pad termination style with 4 pins.
- Ideal for suppression of common mode noise and radio interference in motors and power lines.
Product Description
Wurth Elektronik 744822110 is a Common Mode Choke with an inductance of 10 mH and a maximum DC current rating of 1 A. This choke is engineered to provide high suppression of asymmetrical interferences and common mode noise in electronic circuits, particularly effective in motors and power electronics applications.
The WE-CMB series offers a compact radial mount package, featuring a low DC resistance of 360 milliohms and a choke voltage rating of 230 V. The inductance tolerance is ±30%, ensuring reliable and consistent performance within the specified limits.
Operating across a broad temperature range of -40°C to 125°C and complying with international standards such as VDE, ENEC, REACH, and RoHS, this choke guarantees robust performance in harsh conditions. Its solder pad termination and 4-pin configuration facilitate straightforward mounting and connection on printed circuit boards.
Its dimensions include a height of 22 mm, length of 17.5 mm, and depth of 13 mm, allowing integration into compact designs without compromising efficiency.
This component is ideal for industrial, manufacturing, HVAC, and power treatment systems where EMI noise reduction is critical. It effectively suppresses common mode noise and radio frequency interference, making it suitable for use in power line input/output filters and electronic devices lacking ground connections.
Compact radial mount design for easy PCB integration. Rated 230 V choke voltage suitable for power electronics. Inductance tolerance of ±30% ensuring stable performance. Wide operating temperature range from -40°C to 125°C.
Low DC resistance of 360 milliohms to minimize power loss. Compliant with VDE, ENEC, REACH, and RoHS standards. Features solder pad termination style with 4 pins. Height of 22 mm, length of 17.5 mm, and depth of 13 mm. Ideal for suppression of common mode noise and radio interference in motors and power lines.
Designed for power line input/output filters and devices without ground connection. Explore more electronic components and EMI filters at EnvMart to meet diverse industrial needs.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 10 mH.
This model has a maximum DC current rating of 1 A.
The choke voltage rating is 230 V, making it suitable for power electronics applications.
The dimensions are a height of 22 mm, length of 17.5 mm, and depth of 13 mm.
The DC resistance is 360 milliohms, which helps minimize power loss.
It operates within a wide temperature range from -40°C to 125°C.
This choke features a solder pad termination style with 4 pins.
It complies with VDE, ENEC, REACH, and RoHS standards.
This choke is ideal for suppression of common mode noise and radio interference in motors and power lines.
It belongs to the WE-CMB HC series.
The inductance tolerance is ±30%, ensuring stable performance.
This choke utilizes a radial mount design for easy PCB integration.
