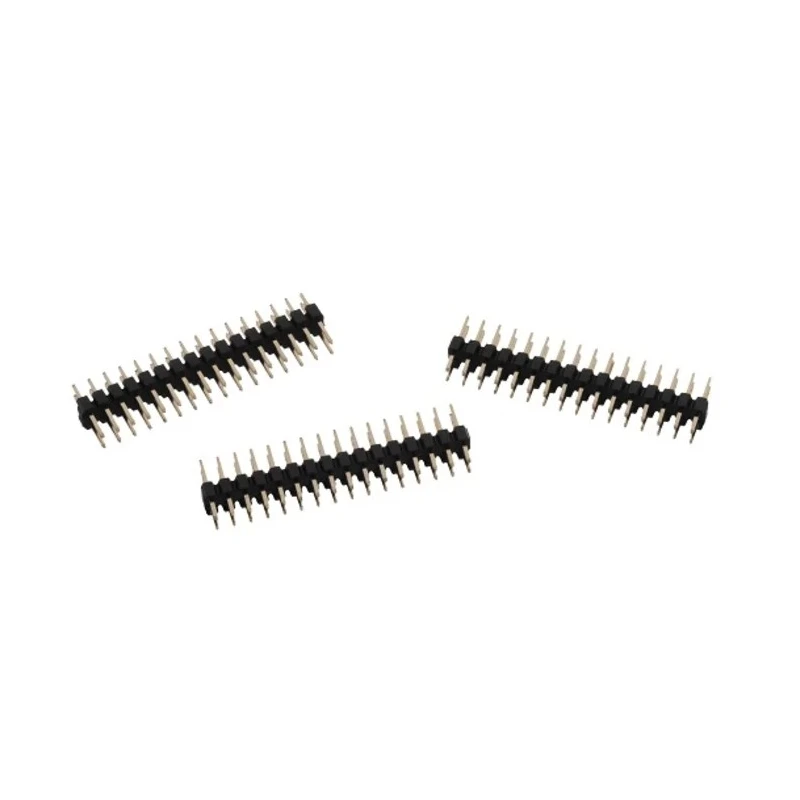

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Header, 40 Contact, 2 mm Pitch, 2 Row, Unshrouded 62004021121
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polyamide 9T |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | REACh Approval Conform or declared, RoHS Approval, UL Approval E323964 |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with polyamide 9T housing material ensuring high durability.
- Features gold-plated copper alloy contacts for reliable conductivity.
- Supports a continuous current rating of 2 amperes.
- Designed for through hole mount type with solder termination.
- Operates reliably between -40°C and +105°C temperature range.
- Unshrouded straight orientation with board-to-board connector system.
- Provides up to 500 mating cycles for extended durability.
- Complies with REACh and UL Approval E323964 standards.
Product Description
Wurth Elektronik 62004021121 WR-PHD Series Straight Through Hole PCB Header features 40 male contacts with a 2.00 mm pitch arranged in two rows. This unshrouded dual row header is designed for robust board-to-board connections in electronic assemblies. Constructed with a polyamide 9T housing and copper alloy contact material plated with gold, it ensures excellent electrical performance and mechanical durability.
The connector supports a current rating of 2A and a voltage of 200V, suitable for a wide range of electronic components and power requirements. Its operating temperature range of -40°C to +105°C makes it ideal for industrial and commercial electronic applications where thermal tolerance is critical.
The WR-PHD series PCB header is a through hole mount type with solder termination, providing easy integration with printed circuit boards. The unshrouded and straight orientation design facilitates versatile connector usage in space-constrained environments.
This PCB header is certified with REACh, RoHS compliance, and UL Approval E323964, ensuring adherence to international safety and environmental standards. It is manufactured in China, reflecting reliable quality control and production standards.
With up to 500 mating cycles, this connector is suitable for repeated insertions and removals without degradation of performance, making it excellent for prototyping and maintenance scenarios in electronics manufacturing.
Polyamide 9T housing offers excellent durability and insulation. Gold-plated copper alloy contacts provide superior conductivity and corrosion resistance. 2 row, 40 contact configuration supports dense electronic assemblies.
Through hole mount type enables secure soldered installation. Wide operating temperature range from -40°C to +105°C. Compliant with REACh, RoHS, and UL standards for safety and environmental protection. Rated for 2A current and 200V voltage applications.
Manufactured in China, ensuring high production standards. Explore more Wurth Elektronik PCB Headers and connectors in EnvMart’s Electronics Components category for your industrial and commercial electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header supports a continuous current rating of 2 amperes.
It has a voltage rating of 200 volts, suitable for various electronic applications.
This model operates reliably between -40°C and +105°C, making it suitable for diverse environments.
It features 40 male contacts arranged in two rows.
This unit is designed for through hole mounting with solder termination.
It is constructed with a polyamide 9T housing and gold-plated copper alloy contacts for reliable conductivity.
It provides up to 500 mating cycles, allowing for repeated insertions and removals without performance degradation.
Yes, it complies with REACh, RoHS, and has UL Approval E323964, ensuring adherence to safety and environmental standards.
The contacts are arranged with a pitch of 2 mm.
This model utilizes a board-to-board connector system, suitable for various electronic assemblies.
The header has a straight orientation, which facilitates versatile connector usage in tight spaces.
