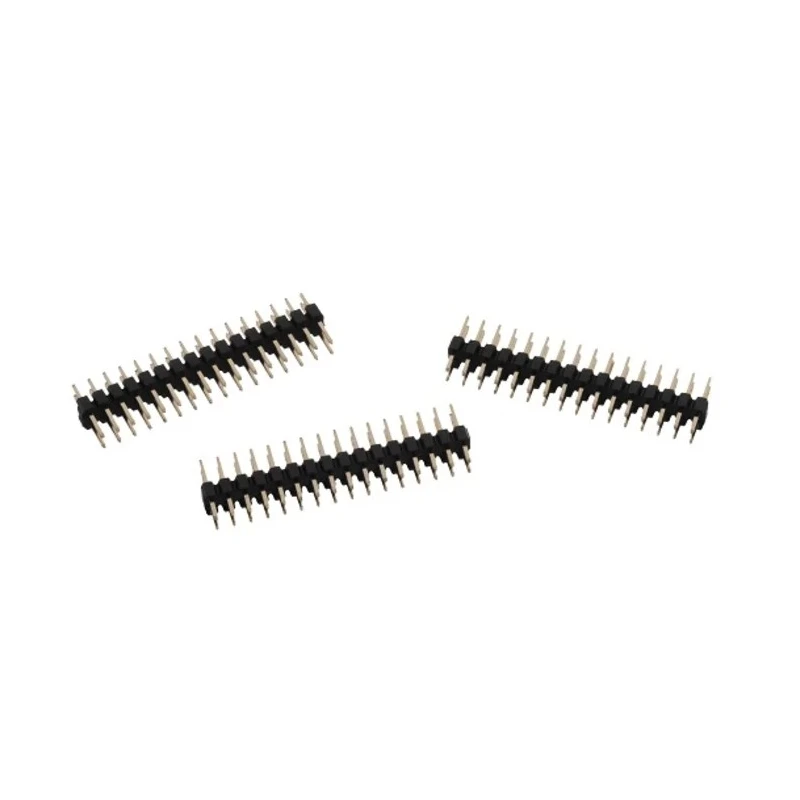

Wurth Elektronik WR-PHD Series Straight Through Hole PCB Header 32 Contacts 2 mm Pitch 2 Row Unshrouded 62003221121

Wurth Elektronik 62003221121 WR-PHD Series Straight Through Hole PCB Header features a dual-row design with 32 contacts, spaced at a 2 mm pitch, suitable for board-to-board connectors in electronic assemblies. It uses a polyamide 9T insulator material known for its high mechanical strength and UL94 V-0 flame retardant rating, enhancing safety in electrical applications. The contacts are made from copper alloy and plated with gold to ensure excellent conductivity and corrosion resistance, suitable for precision electronic connections.

This connector is unshrouded and has a straight orientation for easy insertion and secure mounting through PCB holes, using soldering as the termination method. It supports a safe operating voltage up to 200 V and can handle a current up to 2 A, making it ideal for typical low power electronic applications.

The product has been durability tested for 25 mating cycles to ensure reliability over repetitive connect and disconnect operations. It functions efficiently across a broad temperature range from -40°C to 105°C, making it adaptable to a variety of industrial and commercial environments.

Certifications include RoHS compliance, UL Approval (E323964) for electrical safety, and REACh approval, assuring adherence to environmental and safety standards. The component's compact size and high-quality materials make it suitable for applications in industrial electronics, communications, aerospace, and consumer electronic devices.

Offers a pitch of 2 mm suitable for compact PCB designs. Features 32 copper alloy contacts with gold plating for reliable conductivity. Unshrouded, straight orientation for easy PCB board-to-board connection. Durable polyamide 9T housing ensures high insulation and UL94 V-0 flammability rating.

Operates within a temperature range from -40°C to 105°C for robust environmental tolerance. Certified with RoHS compliance and UL Approval E323964 for quality assurance. Designed for through hole mounting with solder termination type for secure connections.

Supports 2 Amp rated current and 200 Volt operation voltage for standard PCB applications. Durability tested to withstand 25 mating cycles ensuring long service life. Manufactured in China with high-quality materials and precision engineering.
