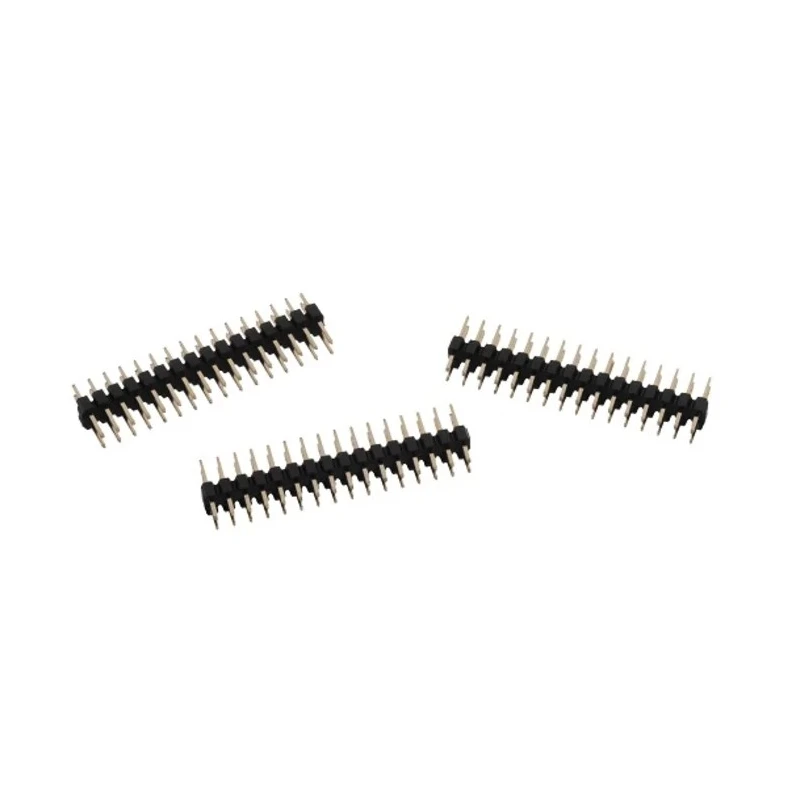

Wurth Elektronik WR-PHD Series Straight PCB Header 10 Contacts 2 mm Pitch 2 Row 62001021121

Wurth Elektronik 62001021121 WR-PHD Series Straight PCB Header is a high-performance, dual row, through-hole technology (THT) pin header designed for printed circuit board applications. This component features 10 male contacts arranged in two rows with 2 mm pitch, optimized for secure and efficient electrical connections in compact electronic assemblies.

The header housing is made from Polyamide 9T (PA9T), a thermoplastic engineered for excellent thermal stability and mechanical strength, ensuring reliability under demanding conditions. The copper alloy contacts are precision plated with gold, significantly enhancing the contact conductivity and corrosion resistance, which is critical in electronic manufacturing.

Its operational temperature range from -40°C up to 105°C allows this connector to perform effectively in diverse industrial, automotive, and consumer electronics environments. The device supports a current rating of 2 amperes and a voltage withstand of up to 500 volts, making it suitable for use in various low to medium power applications.

This PCB header complies with international standards including RoHS for hazardous substances, REACh for chemical safety, and holds UL approval (E323964), reinforcing its compliance with global safety and environmental regulations.

Designed for durability, the connector endures 25 mating cycles, which ensures longevity for devices requiring maintenance or replacement of connectors over time. Dual row 10-contact PCB Header with 2 mm pitch and straight orientation.

Polyamide 9T housing provides heat resistance and mechanical toughness. Copper alloy contacts with gold plating for excellent conductivity and durability. Rated for 2A current and 500V voltage for versatile electrical applications.

Wide operating temperature range from -40°C to 105°C supports varied environments. UL approved component and RoHS compliant for quality and safety assurance. Designed for 25 mating cycles to guarantee long-term mechanical reliability.

This product is ideal for use in electronics manufacturing, industrial equipment, consumer devices, and automotive applications where reliable PCB connections are mandatory. For further design and integration assistance, engineers and manufacturers can refer to the detailed datasheets and 3D models available via supporting documentation.
