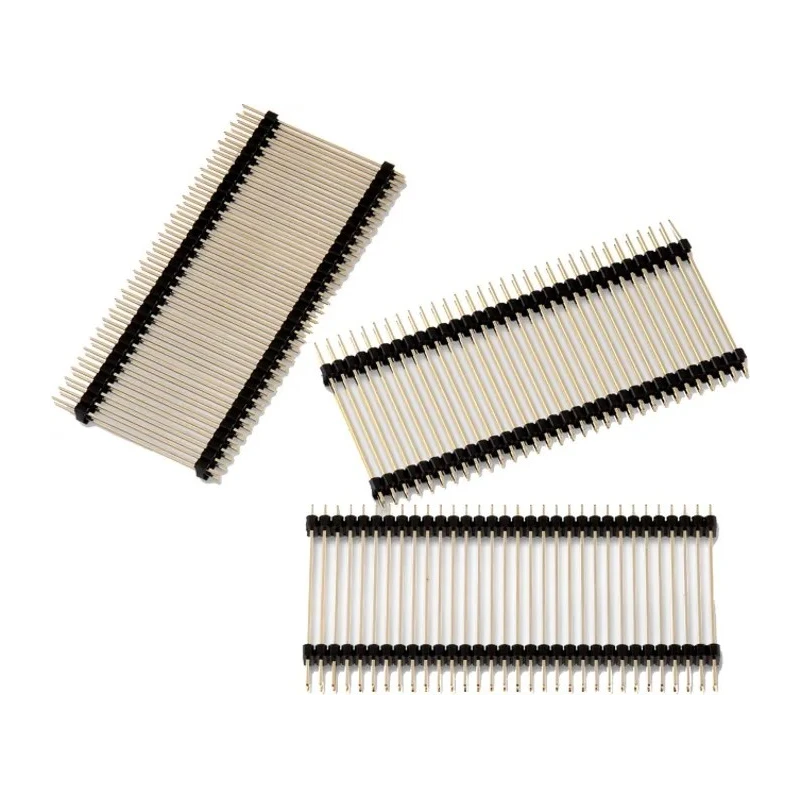

Wurth Elektronik WR-PHD Series Straight PCB Header 64 Contacts 2.54 mm Pitch 2 Row 61306421321

Wurth Elektronik model 61306421321 is a high-quality PCB Header designed for reliable electronic component connections in industrial and commercial applications. It features a straight dual row configuration with 64 contacts spaced at a 2.54 mm pitch, ideally suited for through-hole technology (THT) mountings.

The connector housing is made from polyamide 6T (PA6T), a thermoplastic material known for its excellent mechanical strength and chemical resistance, ensuring dependable insulation under demanding conditions. The contacts are composed of copper alloy and plated with gold to maintain low contact resistance and corrosion resistance, enhancing signal integrity.

This PCB header operates efficiently within a broad temperature range from -40°C to +105°C, allowing deployment in various industrial environments. The component supports a rated current of 3 amperes and withstands voltages up to 250 volts, making it versatile for many electronic circuit requirements.

Notably, the insulator’s UL94 V-0 flammability rating affirms high safety standards, and the product carries UL Approval (E323964), along with RoHS compliance and adherence to DIN EN 61760-2 and DIN ISO 2768 standards. The durability of 25 mating cycles assures long-lasting service life.

This connector is widely applicable in electronics manufacturing, telecommunications, instrumentation, and HVAC control panels, providing robust, reliable electrical interconnections on printed circuit boards.

Durable polyamide 6T housing material ensures robust insulation. Dual row straight orientation provides reliable board stacking interface. Copper alloy contacts plated with gold enhance electrical conductivity. Rated current of 3A and voltage of 250V supports several electronic circuits.

Operating temperature range from -40°C to 105°C suits harsh environments. UL94 V-0 flame retardant insulator guarantees safety standards compliance. UL Approval E323964 and RoHS compliance for quality assurance. Durability rated at 25 mating cycles for extended reliability.
