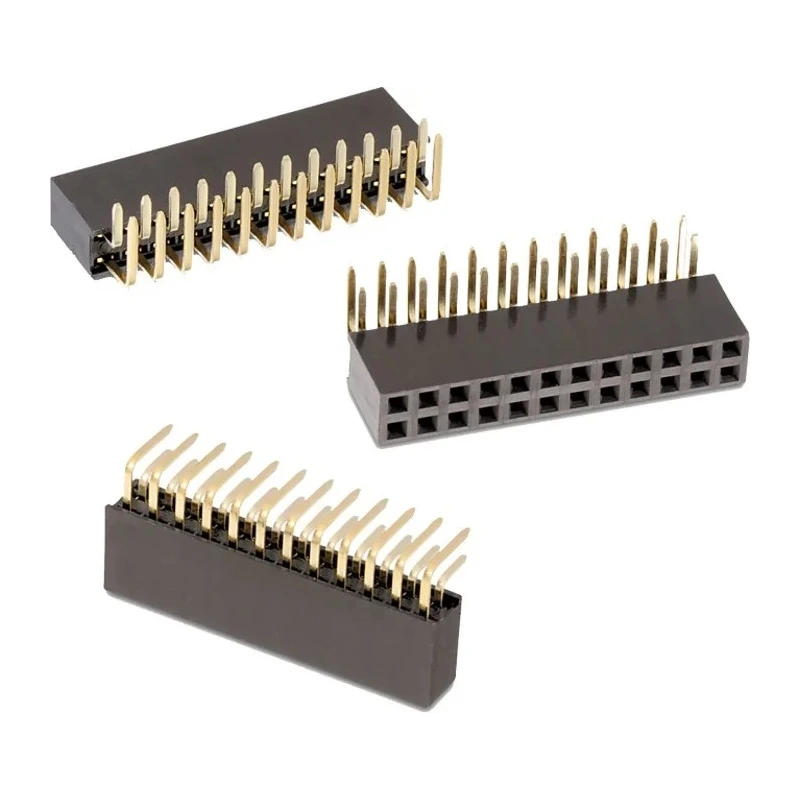

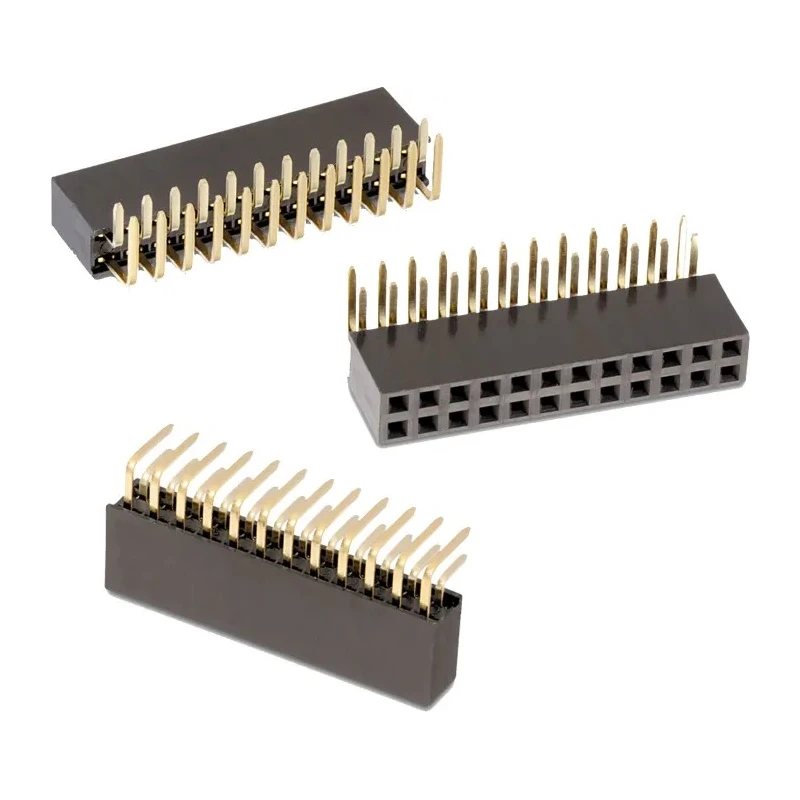

Wurth Elektronik WR-PHD Series Angled Through Hole PCB Socket 26-Contact 2 Row 2.54 mm Pitch 500V 3A 613026243121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Angled |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Connector System | Board-to-Board |
Key Features
- This PCB socket uses a copper alloy contact material with gold plating for reliable conductivity.
- The insulator is made of PBT material with UL94 V-0 flammability rating.
- Designed as a board-to-board connector with solder termination type and angled orientation for PCB mounting.
- Operational temperature range spans from -40°C to 105°C, suitable for demanding environments.
- Provides durability rated up to 25 mating cycles ensuring stable connections.
- Mount type is through hole, facilitating secure mechanical and electrical connection.
- RoHS compliant and UL recognized (E323964), made in Taiwan, Province Of China.
Product Description
Wurth Elektronik 613026243121 WR-PHD Series angled through hole PCB socket is a 26-contact, 2-row connector designed for printed circuit board applications. Operating at a pitch of 2.54 mm, this socket supports currents up to 3A and voltages up to 500V, making it suitable for various electronic component connections requiring durable and reliable performance.
The socket features a copper alloy contact material with high-quality gold plating, enhancing corrosion resistance and electrical conductivity. The insulator body is composed of resilient PBT material, meeting the UL94 V-0 flammability standard, ensuring safety in industrial and commercial electronic assemblies.
Its angled orientation and through-hole mount type provide stable mechanical retention and ease of soldering to PCB boards, facilitating board-to-board interconnections in complex electronic systems. The device is rated to operate in temperature conditions ranging between -40°C and 105°C, supporting applications in varied environmental conditions including industrial, automotive, and communications equipment.
The WR-PHD series socket is RoHS compliant and UL recognized under E323964, confirming adherence to international safety and environmental standards. With a durability rating of 25 mating cycles, it ensures consistent electrical continuity and mechanical integrity during usage and maintenance.
This PCB socket uses copper alloy contacts with gold plating for enhanced conductivity and corrosion resistance. The PBT insulator exhibits UL94 V-0 flammability rating for improved safety. The angled through-hole mount design suits secure board-to-board connection applications.
Rated for 3A current and 500V voltage to support typical PCB electrical requirements. Operating temperature range from -40°C up to 105°C ensures reliability in harsh environments. Durability of 25 mating cycles maintains connection stability over repeated use.
Compliant with RoHS and carries UL recognition for quality assurance.
This component is essential for industrial, laboratory, manufacturing, and electronic assembly applications. It is suited for use in power connectors, communication devices, and other PCB-based electronics requiring angled through-hole sockets.
Explore a broad selection of PCB Sockets and connectors on EnvMart to find matching components for your electronic design needs.
