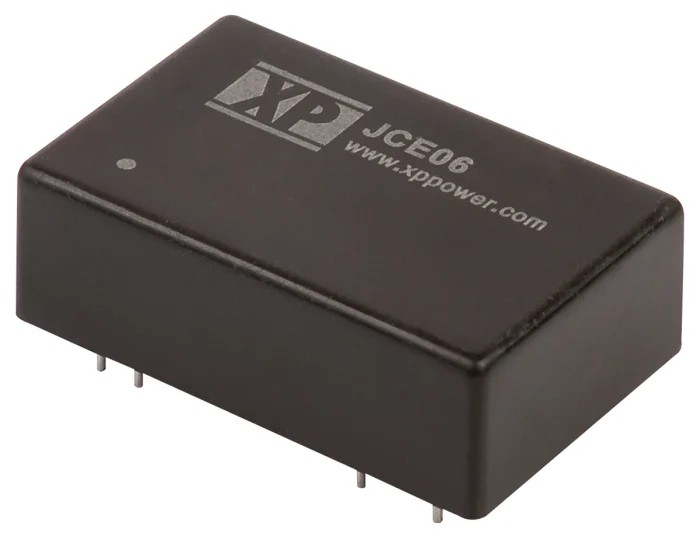

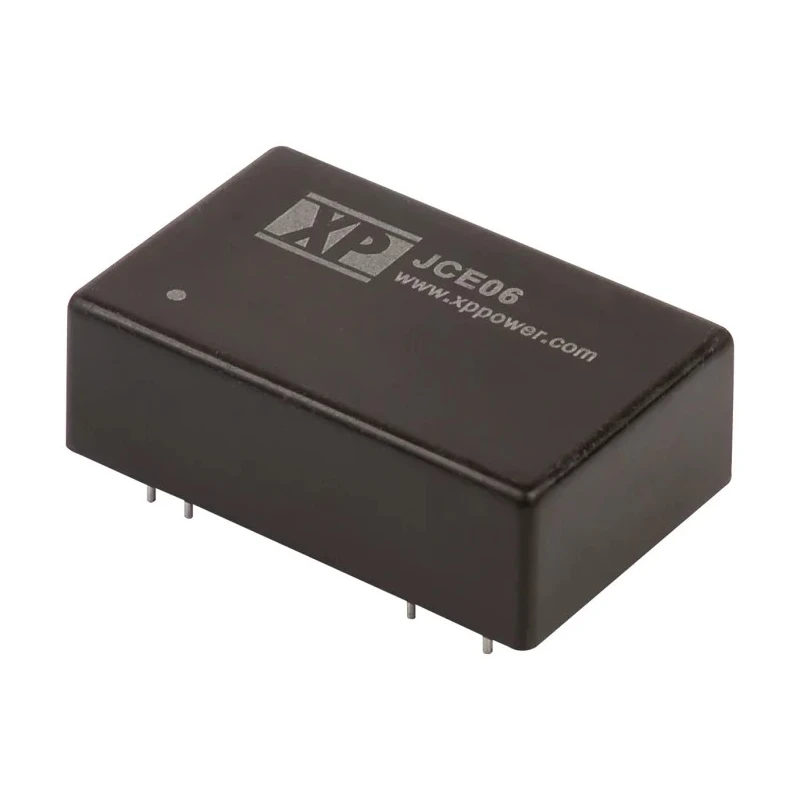

XP Power 6W Isolated Dual Output DC-DC Converter 15V DC 200mA Input 18-36V DIP-24 Through Hole JCE0624D15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCE DC/DC Converter, 15V dc/ 200 mA, 36V |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 31.75mm |
| Model | JCE0624D15 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCE |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 2 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | ±14.7 V dc, ±15.3 V dc |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers high isolation of 1500 VDC for increased safety.
- High efficiency of up to 84% to reduce heat dissipation.
- Convection cooled with operating temperature range from -40°C to 100°C.
- Compact DIP-24 through-hole mounting package ideal for PCB integration.
- Output current 200mA with ±14.7 V DC to ±15.3 V DC adjustable output voltage range.
- Suitable for industrial, laboratory, power management, and embedded applications.
- Two isolated outputs for flexibility in power conversion needs.
- Mean time between failure (MTBF) of 800,000 hours ensures high reliability.
Product Description
XP Power JCE0624D15 is a high-reliability 6W isolated DC-DC converter designed for industrial and electronic applications requiring dual isolated power outputs. This model provides dual output voltages around 15V DC at 200mA load current, with input voltage range from 18V to 36V DC, suitable for various DC power supply systems.
The converter features a standard DIP-24 plastic through-hole package with dimensions 31.75mm length, 20.32mm width, and 10.4mm depth, allowing easy PCB mounting and integration into electronic circuits requiring voltage step-down or isolation.
Designed for robustness, it offers strong isolation voltage of 1500 VDC and optional 3000 VDC variants, meeting RoHS standards with efficiency up to 84%. It operates reliably from -40°C up to 100°C, making it suitable for harsh operating environments.
This DC-DC converter includes an output voltage adjustment range between ±14.7 V DC and ±15.3 V DC, enabling fine tuning of supply output within the specified range. The unit is convection cooled and designed for long operational life with an MTBF of 800,000 hours.
Offers high isolation of 1500 VDC for increased safety. High efficiency of up to 84% to reduce heat dissipation. Convection cooled with operating temperature range from -40°C to 100°C. Compact DIP-24 through-hole mounting package ideal for PCB integration.
Output current 200mA with ±14.7 V DC to ±15.3 V DC adjustable output voltage range. Suitable for industrial, laboratory, power management, and embedded applications. Two isolated outputs for flexibility in power conversion needs.
Mean time between failure (MTBF) of 800,000 hours ensures high reliability.
This product is essential in industrial electronics, laboratory test equipment, power supply modules, embedded systems, and any application requiring compact, reliable dual-output DC power conversion with galvanic isolation.
Explore the XP Power series for advanced power solutions and browse EnvMart for more industrial-grade DC-DC converters and electronic components.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This converter has a maximum output power of 6W.
The dimensions of this model are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
The output current rating for this converter is 200mA.
The output voltage adjustment range is between ±14.7 V DC and ±15.3 V DC.
This model provides an isolation voltage of 1500 VDC.
The efficiency rating of this converter is up to 84%.
The operating temperature range is from -40°C to 100°C.
This DC-DC converter has two isolated outputs.
This model uses a DIP-24 through-hole mounting type.
The mean time between failure (MTBF) for this converter is 800,000 hours.
Yes, this converter meets RoHS standards.
