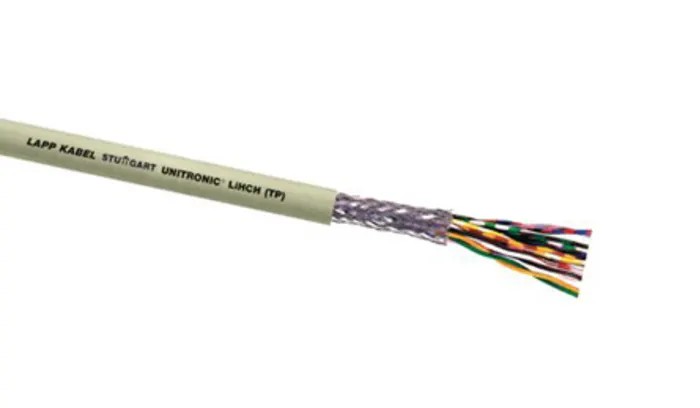

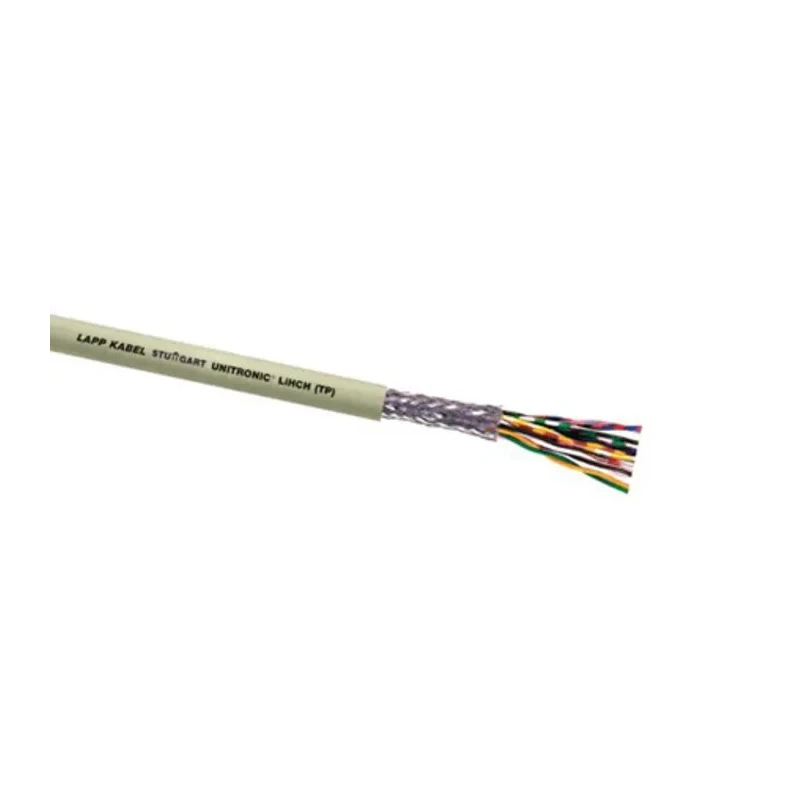

Lapp Unitronic LiHCH Series Data Cable, 2 Pairs, 0.25 mm² Cross Section, 50 m Length, Pebble Grey Sheath Low Smoke 0038402
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.25 mm² |
| Model | 0038402 |
| Cable Length | 50m |
| Series | Unitronic LiHCH |
| Outside diameter | 6.5mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | EU-Directive 2014/35/EU (Low Voltage Directive) and to EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous substances) |
| Jacket Colour | Pebble Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Pairs | 2 |
| • Operating temperature range of with occasional flexing | -5°C to +70°C |
| • Operating temperature range in fixed installations | -30°C to +80°C |
Key Features
- The cable has a 0.25 mm² cross sectional area for fine-wire copper strands.
- It features a pebble grey halogen-free outer sheath providing safety in public environments.
- The cable length is 50 meters, making it suitable for various installations.
- Operating temperature range is -40°C minimum up to 80°C maximum for fixed installations.
- The flame-retardant sheath complies with IEC 60332-1-2 and EU low voltage and RoHS directives.
- Screened braided construction minimizes electrical interference for reliable data transmission.
- Conductor type is stranded bare copper for optimal conductivity and flexibility.
- Ideal for public buildings, transportation systems, and safety-critical electrical setups.
Product Description
Lapp 0038402 Unitronic LiHCH Series Data Cable is a high-quality 2-pair screened cable designed for low frequency data transmission applications. It features a 0.25 mm² stranded bare copper conductor cross section housed within a pebble grey low smoke zero halogen (LSZH) sheath. The cable is flame-retardant compliant with IEC 60332-1-2 standard, ensuring enhanced fire safety.
The cable operates efficiently within a temperature range of -5°C to +70°C with occasional flexing and -30°C to +80°C in fixed installations, making it suitable for demanding industrial and commercial environments. Its braided shielding greatly reduces electrical interference for reliable signal integrity.
This Unitronic LiHCH cable is halogen-free and designed to produce low smoke density, making it especially suitable for use in public buildings, transportation systems, and locations where human safety and sensitive equipment protection are critical. The pebble grey outer sheath provides durability and aesthetic integration in installations.
Applications include data processing, measurement and control engineering, safety-related systems, computer and instrumentation systems, and office equipment. This cable supports compliance with EU Directives 2014/35/EU for low voltage and 2011/65/EU for RoHS regulations.
Low capacitance due to polyolefin-based insulation. Overall braided shielding minimizes electrical interference. Flame-retardant according to IEC 60332-1-2 standard. Low smoke zero halogen (LSZH) compliant sheath for enhanced safety.
Suitable operating temperature ranges for flexible and fixed installations. Stranded bare copper conductor for excellent conductivity and flexibility. Ideal for use in public, industrial, and safety-focused environments.
Compliant with EU low voltage and RoHS directives.
Choose this Lapp Unitronic LiHCH Series Data Cable 0038402 for reliable, safe, and standardized data transmission needs in industrial, laboratory, transportation, and commercial applications. Browse more Data Cable products by Lapp and within Wires & Cables category on EnvMart for related solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this data cable is 0.25 mm².
The maximum operating temperature for fixed installations is 80°C.
It features stranded bare copper conductors for optimal conductivity and flexibility.
The cable length is 50 meters, making it suitable for various installations.
The minimum operating temperature is -40°C.
It complies with EU Directive 2014/35/EU for low voltage and 2011/65/EU for RoHS regulations.
The jacket material is Low Smoke Zero Halogen (LSZH), providing enhanced safety in public environments.
The outside diameter of the cable is 6.5 mm.
The braided shielding minimizes electrical interference, ensuring reliable data transmission.
It is suitable for data processing, measurement and control engineering, safety-related systems, and office equipment.
The voltage rating of this cable is 250V.
The outer sheath of this cable is pebble grey.
