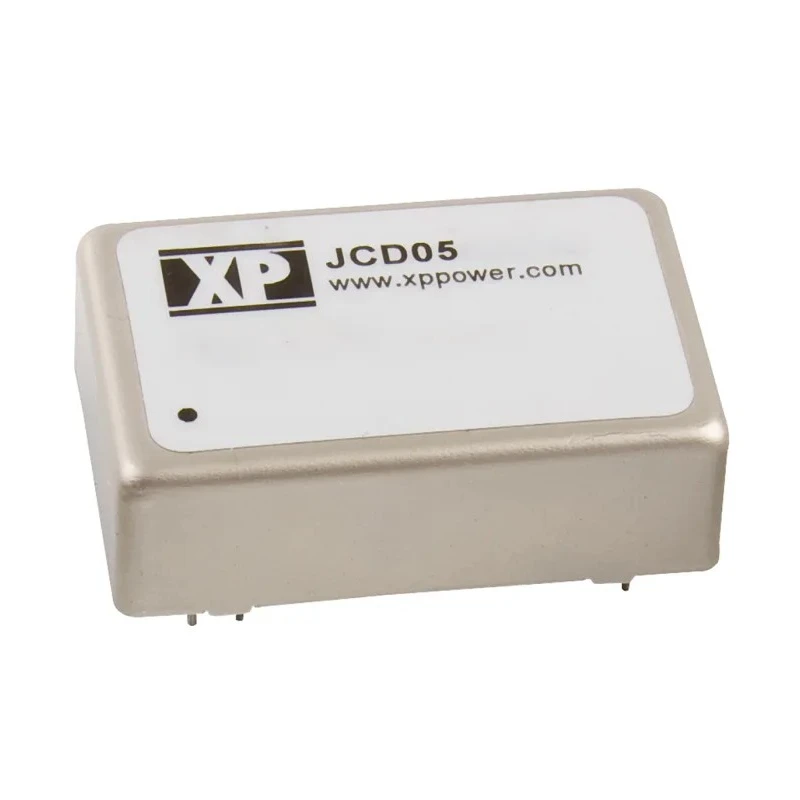

XP Power JCD Series Isolated DC-DC Converter 9V DC Output, 555mA, 18-36V Input, 5W, Through Hole DIP Package JCD0524S09
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 9V dc/ 555 mA, 36V d |
| Brand | XP Power |
| Efficiency | 82% |
| Length | 31.75mm |
| Model | JCD0524S09 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 555mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Supports wide input voltage range from 18V to 36V for versatile applications.
- Provides 5W maximum output power in a compact through hole DIP package.
- Features excellent efficiency of 82% ensuring low energy losses during operation.
- Operates reliably within temperature range of -40°C to 100°C.
- Built-in isolation voltage of 1.6kV DC ensures safe electrical separation.
- Compact dimensions of 31.75mm length, 20.32mm width, and 10.4mm depth suit space-constrained designs.
- Designed for single output with ±1% voltage adjustment range for precise control.
- High MTBF of 1,100,000 hours confirms long-term reliability in industrial environments.
Product Description
XP Power JCD0524S09 is a high-reliability isolated DC-DC converter designed for industrial and electronics power supply applications. It outputs a stable 9V DC voltage at 555mA current, delivering up to 5W of power with a wide input voltage range between 18V and 36V DC. The converter features a through hole DIP package optimizing board mounting and space utilization.
Featuring an efficiency of 82%, the JCD series converters minimize power loss, enhancing energy savings. They provide 1600V DC isolation voltage for safety and protection against electrical noise, making them suitable for sensitive and demanding applications in industrial automation, telecommunications, and instrumentation.
The device supports operation in broad temperature ranges from -40°C to 100°C, enabling it to withstand harsh working conditions. The ±1% output voltage adjustment ensures precise voltage regulation to meet various power supply requirements. Additionally, the converter carries a high MTBF rating of 1,100,000 hours, reinforcing its dependability and durability.
Compact dimensions (31.75mm length, 20.32mm width, and 10.4mm depth) facilitate integration into tightly packed circuits. The 24-pin DIP package enhances installation flexibility and secure connection on PCB assemblies.
This product conforms to RoHS standards, confirming adherence to environmental and safety regulations. Manufactured in Taiwan, Province Of China, the XP Power JCD0524S09 DC-DC converter finds application in electronics manufacturing, industrial power systems, laboratory equipment, and other commercial hardware necessitating reliable power conversion and voltage isolation.
Supports wide input voltage range from 18V to 36V for versatile applications. 5W output power capacity in a compact through hole DIP package with 24 pins. High efficiency of 82% helps reduce energy loss and heat generation.
Operating temperature from -40°C to 100°C suitable for demanding environments. Provides 1.6kV DC electrical isolation for safety and noise reduction. High MTBF of 1,100,000 hours assures long operational life. Single output with ±1% voltage adjustment range for precise control.
Compact physical dimensions support integration into space-constrained assemblies. RoHS compliant and manufactured in Taiwan, Province Of China. Explore more DC/DC Converters and power supply solutions at EnvMart to find the perfect match for your industrial or laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 5W.
It supports a wide input voltage range from 18V to 36V DC.
The efficiency of this unit is rated at 82%, which helps reduce energy loss during operation.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.4mm in depth.
It provides an isolation voltage of 1.6kV DC for safe electrical separation.
This converter operates reliably within a temperature range of -40°C to 100°C.
This model has a single output.
It features a ±1% voltage adjustment range for precise control of the output voltage.
The MTBF for this unit is rated at 1,100,000 hours, indicating long-term reliability.
It uses a through hole mounting type, optimized for board mounting and space utilization.
Yes, this converter conforms to RoHS standards, ensuring adherence to environmental regulations.
It is manufactured in Taiwan, Province Of China.
