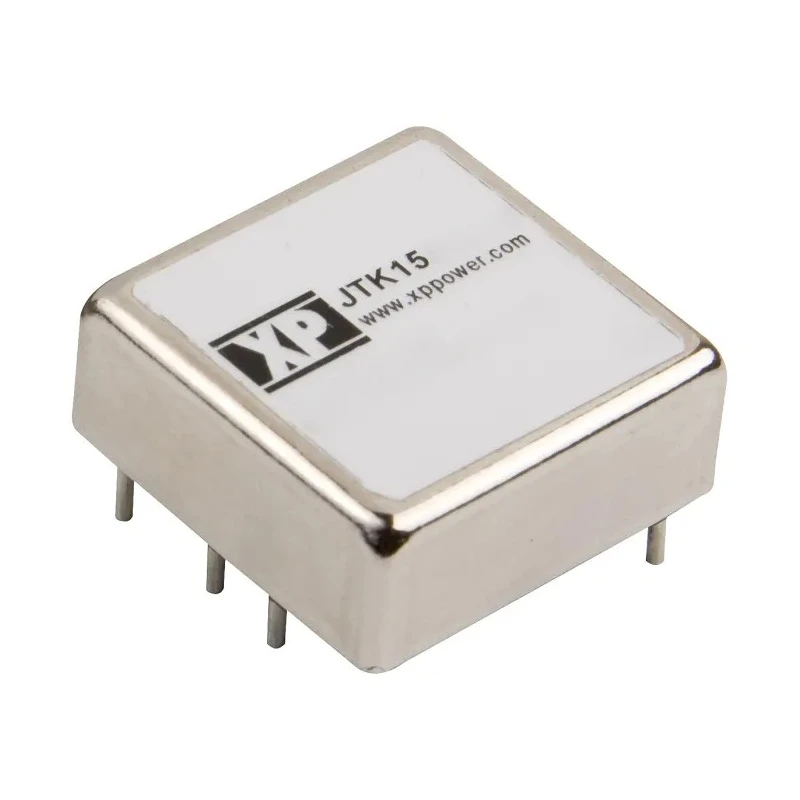

XP Power Isolated DC-DC Converter 12V dc 600 mA 15 W Through Hole +100°C Max Temp -40°C Min JTK1524S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTK DC/DC Converter, 12V dc/ 600 mA, 36V |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 25.4mm |
| Model | JTK1524S12 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTK |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 4 | 1 input range |
Key Features
- Outputs a stable 12V DC voltage at 600mA current.
- Supports a wide input voltage range from 18V to 36V DC.
- High efficiency of 85% ensures optimal power usage.
- Designed with 1.6kV DC isolation for enhanced safety.
- SIP package type with 7 pins supports through hole mounting.
- Compact dimensions of 25.4mm length, 25.4mm width, and 9.9mm depth.
- Wide operating temperature range from -40°C to +100°C.
- High reliability with mean time between failure (MTBF) of 1,100,000 hours.
Product Description
XP Power JTK1524S12 is a highly reliable isolated DC-DC converter delivering 12V DC output at 600mA with a maximum output power of 15W. This device is designed for industrial, electronic, and power supply applications that require compact and efficient voltage conversion.
Featuring a wide input voltage range of 18V to 36V DC and a 2:1 input ratio, the JTK1524S12 provides consistent performance across varying input conditions. The through hole mount design, SIP package, and 7-pin configuration enable easy integration on printed circuit boards for a stable mounting solution.
With an isolation voltage of 1.6kV DC, this converter ensures safety and noise reduction in sensitive electronic circuits. It operates efficiently at 85%, reducing heat generation and power loss. The wide operating temperature range of -40°C to +100°C allows the converter to perform reliably in harsh environments and demanding industrial conditions.
The compact dimensions of 25.4mm (length) by 25.4mm (width) by 9.9mm (depth) provide a small footprint, suitable for space-constrained applications. With a high MTBF rating of 1,100,000 hours, it offers long-term durability and dependable operation.
This model belongs to XP Power's JTK15 series, known for power density and design flexibility in power management solutions. Typical use cases include electronics, laboratory instruments, industrial automation, and control equipment requiring precise and isolated DC power conversion.
Outputs a stable 12V DC voltage at 600mA current. Wide input voltage support from 18V to 36V DC. Isolation voltage rated at 1.6kV DC for enhanced safety. High efficiency of 85% to minimize power loss. Compact SIP package with through hole mounting and 7 pins.
Compact size: 25.4mm × 25.4mm × 9.9mm. Wide operating temperature range (-40°C to +100°C). High reliability with MTBF of 1,100,000 hours. Suitable for industrial, electronic, and power supply applications. Manufactured in Taiwan, Province Of China.
Explore more DC/DC Converters and power supply solutions on EnvMart for your specific project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model outputs a stable 12V DC voltage at a current of 600mA.
It supports a wide input voltage range from 18V to 36V DC.
The maximum output power of this unit is 15W.
It operates with an efficiency of 85%, minimizing power loss.
This model has an isolation voltage rated at 1.6kV DC, enhancing safety in sensitive applications.
The compact dimensions are 25.4mm in length, 25.4mm in width, and 9.9mm in depth.
It operates effectively within a wide temperature range from -40°C to +100°C.
This unit features a through hole mounting design in a SIP package with 7 pins.
It is suitable for industrial, electronic, and power supply applications requiring precise and isolated DC power conversion.
The MTBF for the JTK1524S12 is rated at 1,100,000 hours, indicating high reliability.
The input ratio for this converter is 2:1, allowing for consistent performance across varying input conditions.
This model is manufactured in Taiwan, Province Of China.
