XP Power Isolated DC-DC Converter 3.3V DC 700mA 75V DC Input 18V Input 3W Through Hole IP4803SA

Free Delivery in India | Lowest Global Shipping Charges

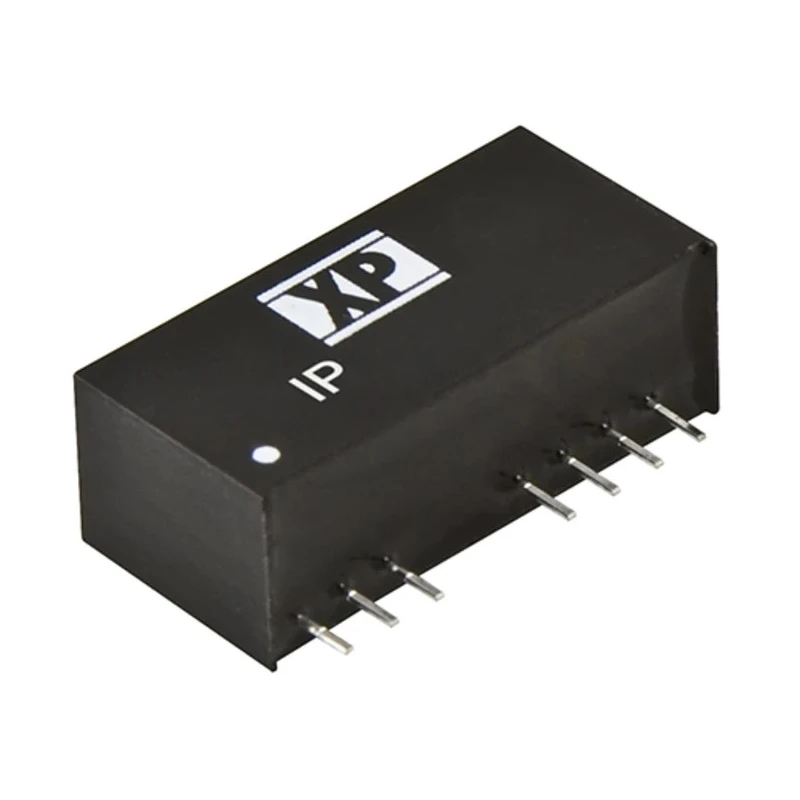

XP Power Isolated DC-DC Converter 3.3V DC 700mA 75V DC Input 18V Input 3W Through Hole IP4803SA

Name: XP Power Isolated DC-DC Converter 3.3V DC 700mA 75V DC Input 18V Input 3W Through Hole IP4803SA
Brand: XP Power
SKU: 189657
Price: 25.14 USD
Availability: InStock



Category DC-DC Converter Brand XP Power Condition New

Specifications

Country of Origin	Taiwan
Brand	XP Power
Efficiency	74%
Length	21.85mm
Model	IP4803SA
Depth	11.1mm
Width	9.2mm
Mount Type	Through Hole
Series	IP
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	1700000h
Number of outputs	1
Maximum Output Power	3W
Maximum Input Voltage	75V dc
Minimum Input Voltage	18V
Number of Pins	8
Output Voltage 1	3.3V dc
Output Current 1	700mA
Isolation Voltage	1.6kV dc
Input Ratio	4:1
Input Ratio4	1

Key Features

High isolation voltage of 1.6kV DC ensures device safety.
Compact SIP package measuring 21.85mm length, 9.2mm width, and 11.1mm depth.
Operating temperature range from -40°C to 85°C for harsh environments.
Efficiency of 74% optimizes energy consumption and thermal performance.
Designed with continuous short circuit protection to enhance reliability.
Single output channel suitable for precise voltage conversion needs.
Mean time between failures (MTBF) rating of 1,700,000 hours assures long lifespan.
Ideal for industrial, electronic component, power supply, and telecommunications applications.

Product Description

XP Power IP4803SA is an isolated DC-DC converter designed for dependable voltage conversion in demanding applications. Operating over a wide input voltage range of 18V to 75V DC, it delivers a regulated 3.3V DC output current of 700mA, providing a maximum output power of 3W.

This device features a through-hole mount type in a single in-line package (SIP) format, making it suitable for easy integration into various circuit board designs. The compact dimensions of 21.85mm length, 9.2mm width, and 11.1mm depth contribute to versatile system design.

The converter offers excellent isolation of 1.6kV DC, ensuring electrical safety and preventing current leakage between input and output circuits. Its efficiency rating of 74% supports reduced energy waste and heat generation, enhancing system performance.

With an operating temperature range from -40°C to 85°C, the IP4803SA is well suited for use in industrial, telecommunications, power supply, and other electronic component applications demanding reliability under extreme environmental conditions. It also includes continuous short circuit protection to prevent damage under fault conditions.

The product is backed by a long MTBF of 1,700,000 hours, indicative of its design for extended operational life. Its compliance with industry standard packaging and robust electrical characteristics make it a valuable solution for isolated power conversion tasks.

Wide input voltage range with 4:1 ratio for diverse power inputs. High isolation voltage protects sensitive electronics. Compact SIP through-hole package ensures easy PCB assembly. Excellent operating temperature range for harsh environments.

Energy efficient with 74% typical efficiency. Reliable design with continuous short circuit protection. Single output suitable for precision voltage regulation. Extended MTBF ensures durability and reliability. Manufactured in Taiwan with consistent quality standards.

Explore a wide range of DC-DC Converters with XP Power at EnvMart for your industrial and electronic applications.
