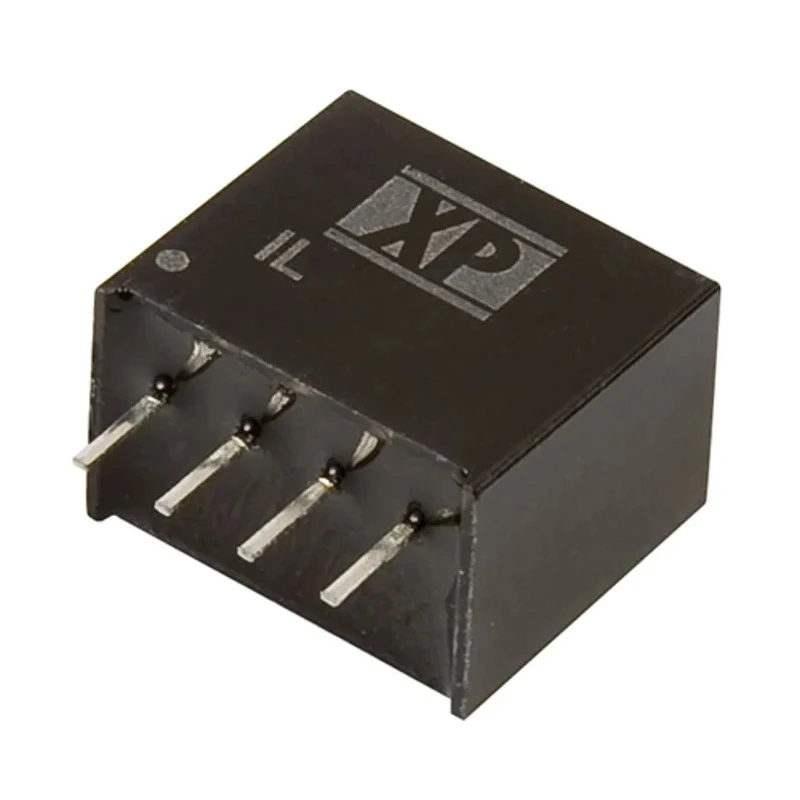

XP Power Isolated 2W SIP Package DC/DC Converter 9V DC Output 220mA 4.5-5.5V Input Through Hole IL0509S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IL DC/DC Converter, 9V dc/ 220 mA, 5 |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 11.68mm |
| Model | IL0509S |
| Depth | 10.16mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -20°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 220mA |
| Isolation Voltage | 1kV dc |
Key Features
- The converter delivers a maximum output power of 2 watts for efficient power supply needs.
- It features a single output with 1kV DC isolation voltage for safety and noise reduction.
- Designed to operate at temperatures ranging from -20°C to 100°C for broad industrial applications.
- The package dimensions are compact, measuring 11.68mm in length, 7.5mm in width, and 10.16mm in depth.
- Its SIP form factor ensures easy PCB integration with four pins in a through-hole mount style.
- Achieves an efficiency of approximately 80%, optimizing power conversion performance.
- Mean time between failures (MTBF) is rated at 1,210,000 hours, ensuring long-term reliability.
- Ideal for use in electronic components, power supplies, instrumentation, and industrial control systems.
Product Description
XP Power IL0509S isolated DC/DC converter is a compact 2 watt single output power module designed in a standard SIP package with through-hole mounting. This converter efficiently converts input DC voltage from 4.5 to 5.5 volts into a stable 9V DC output rated at 220mA. It features a high isolation voltage rating of 1kV DC, enhancing electrical safety and reducing noise interference in sensitive circuits.
The device supports a wide operating temperature range from -20°C to 100°C, making it suitable for harsh industrial environments and electronics applications requiring stable power supply under temperature stress.
With package dimensions of 11.68mm length, 7.5mm width, and 10.16mm depth, it allows compact board layout and straightforward assembly through its 4-pin SIP through-hole configuration. The converter achieves approximately 80% efficiency, ensuring minimal power losses and enhanced system performance.
The IL series from XP Power is known for reliability with an MTBF of 1,210,000 hours, making this module suited for use in power & connectors, instrumentation, industrial automation, communication devices, and laboratory equipment. The converter supports isolated power conversion requirements where electrical isolation between input and output circuits is critical.
The converter delivers 2W of isolated DC power with a single 9V output. It operates reliably over a broad -20°C to 100°C temperature range. Standard SIP through-hole package simplifies PCB mounting. Isolation voltage rating of 1kV DC ensures safety and noise immunity.
High reliability supported by a 1,210,000-hour MTBF rating. Suitable for industrial, laboratory, and commercial electronic applications. Efficient power conversion at 80% efficiency minimizes heat generation.
This DC/DC converter is compliant with industry standards and designed for reliable operation in power supply and distribution systems where compact isolated power conversion is required.
Explore more DC/DC Converters and power supply components on EnvMart to find reliable solutions suitable for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2 watts.
It accepts an input voltage range from 4.5V to 5.5V DC.
The converter provides a stable output voltage of 9V DC with a maximum output current of 220mA.
It features an isolation voltage rating of 1kV DC.
The package dimensions are 11.68mm in length, 7.5mm in width, and 10.16mm in depth.
It achieves an efficiency of approximately 80%.
This unit operates reliably within a temperature range of -20°C to 100°C.
This model has a single output.
The MTBF is rated at 1,210,000 hours.
It features a through-hole mount style with four pins for easy PCB integration.
This model is part of the IL series from XP Power.
It is suitable for use in power supplies, instrumentation, industrial control systems, and various electronic components.
