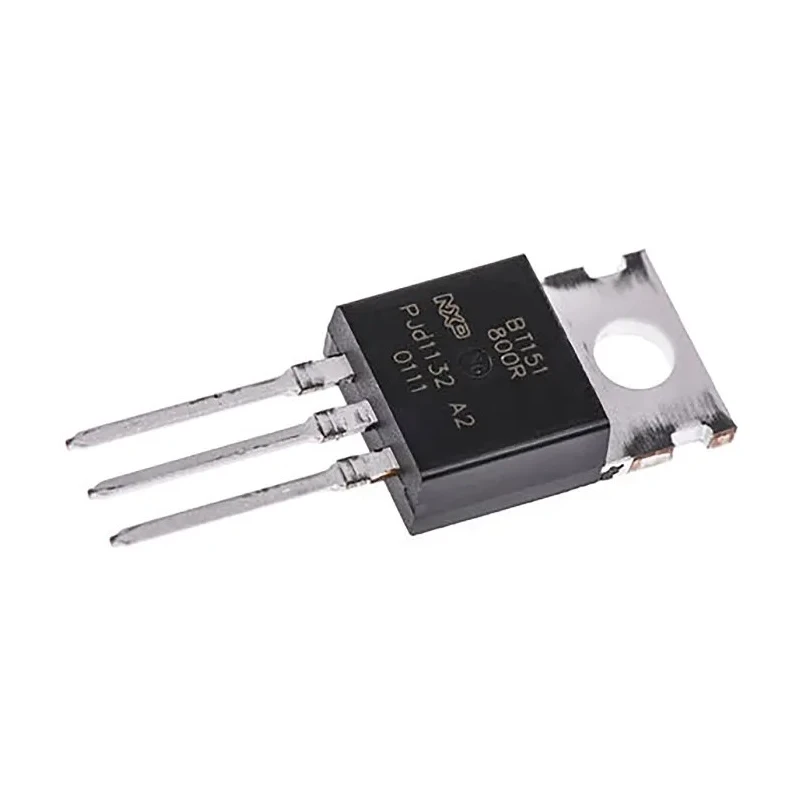

WeEn Semiconductors Co., Ltd Thyristor SCR TO-220 Package 800 V 7.5 A 15 mA 1.5 V BT151-800R,127
Specifications
| Country of Origin | China |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Model | BT151-800R,127 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 7.5A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 132A |
| Maximum Gate Trigger Current Igt | 15mA |
| Maximum Holding Current Ih | 20mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- This SCR features a high repetitive peak reverse voltage rating of 800 volts.
- Rated average on-state current is 7.5 amperes suitable for various power control applications.
- Surge current rating of 132 amperes supports transient conditions effectively.
- The device uses a through-hole mounting style with a TO-220 package type for easy integration.
- Maximum operating temperature is 125°C enabling operation in harsh environments.
- The maximum gate trigger voltage is 1.5 volts with a maximum gate trigger current of 15 mA.
- Peak on-state voltage is low at 1.75 volts, enhancing efficiency.
- Designed with 3 pins for standard electrical connections in circuits.
Product Description
WeEn Semiconductors Co., Ltd BT151-800R,127 is a high-performance silicon-controlled rectifier (SCR) Thyristor designed for use in power applications requiring robust switching and high voltage tolerance. Packaged in a TO-220 plastic package, this device is ideal for through-hole mounting in various electronic circuits.
The thyristor features a repetitive peak reverse voltage of 800 V and a rated average on-state current of 7.5 A, making it suitable for industrial, laboratory, manufacturing, and power control applications. Its high surge current rating of 132 A ensures it can withstand transient overloads.
The SCR has a maximum operating temperature of 125°C, supporting reliable operation even in demanding thermal environments. The maximum gate trigger current of 15 mA and low gate trigger voltage of 1.5 V allow efficient triggering in control circuits.
Additional performance parameters include a peak on-state voltage of 1.75 V and minimal repetitive peak off-state current of 0.5 mA, enhancing energy efficiency and reducing electrical losses. The device supports operation over a wide temperature range from -40°C to 125°C.
Applications of this thyristor include phase control in power electronics, motor speed controllers, lamp dimmers, and other switching applications where controlled rectification is necessary. Its standardized 3-pin TO-220 package simplifies installation and maintenance.
High bidirectional blocking voltage capability at 800 V. Robust surge current handling of 132 A. Compact TO-220 package with through-hole mounting. Wide operating temperature range from -40°C to 125°C. Low gate trigger current of 15 mA for efficient control.
Minimal leakage current ensuring low standby power loss. Rated for industrial and laboratory power control applications. Long-term reliability due to high thermal cycling performance. Simple integration in power switching circuits with 3-pin configuration.
Explore a wide range of Thyristors and semiconductor components for electronics and industrial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thyristor has a maximum repetitive peak reverse voltage rating of 800 volts.
It has a rated average on-state current of 7.5 amperes, suitable for various power control applications.
The surge current rating is 132 amperes, allowing it to handle transient conditions effectively.
The maximum gate trigger voltage is 1.5 volts, facilitating efficient triggering in control circuits.
The maximum operating temperature is 125°C, enabling operation in harsh environments.
This thyristor uses a through-hole mounting style with a TO-220 package type for easy integration.
The peak on-state voltage is low at 1.75 volts, which enhances efficiency in applications.
The minimum operating temperature is -40°C, allowing for a wide operational range.
It has a 3-pin configuration for standard electrical connections in circuits.
The maximum gate trigger current is 15 mA, which supports efficient control in circuits.
This model is suitable for applications such as phase control in power electronics, motor speed controllers, and lamp dimmers.
The minimal repetitive peak off-state current is 0.5 mA, which helps in reducing electrical losses.
