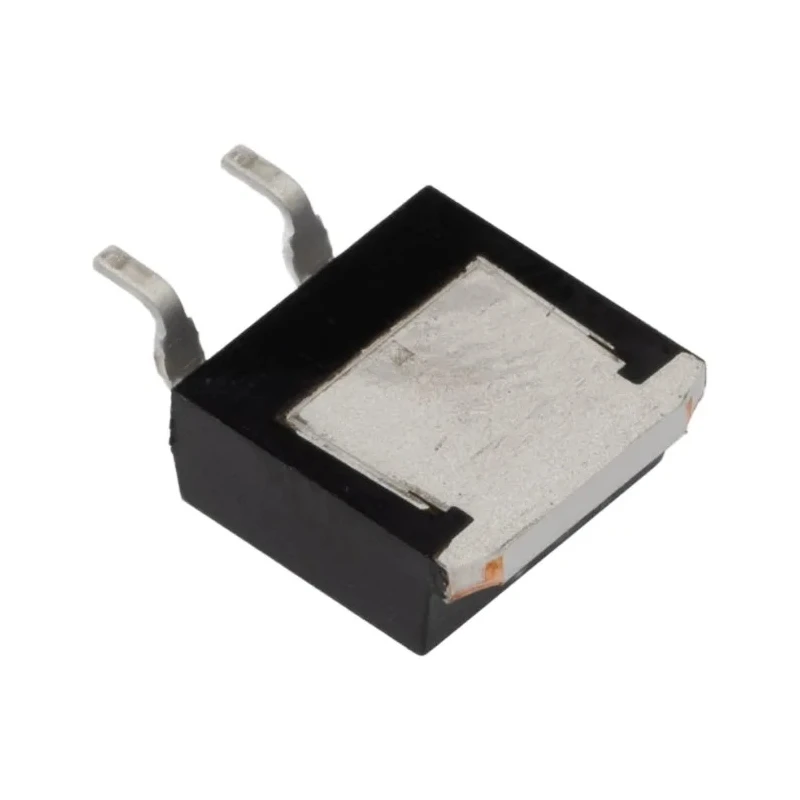

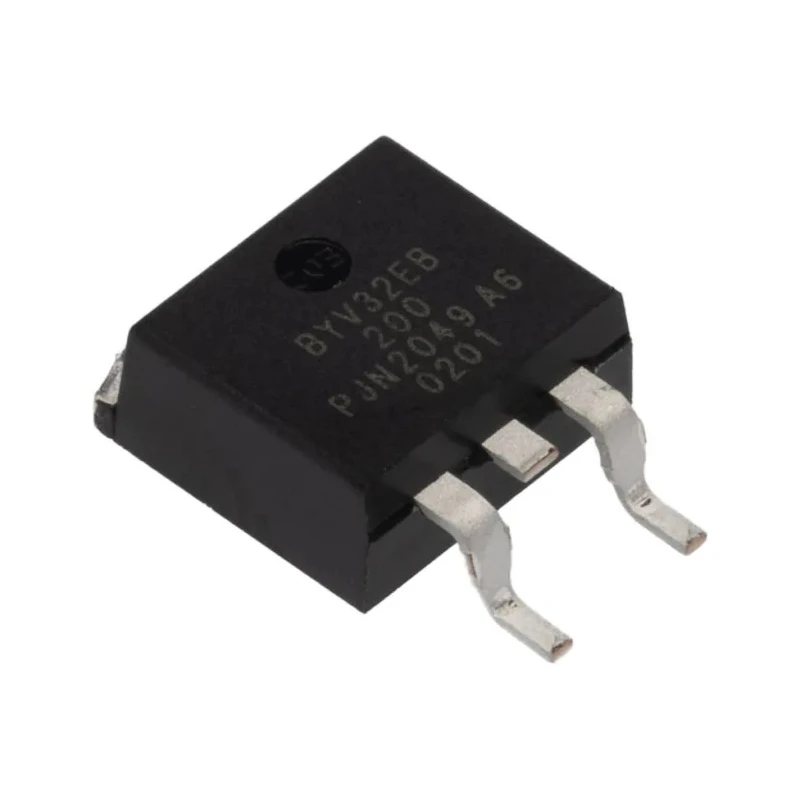

WeEn Semiconductors Co., Ltd General Purpose 3-Pin Surface Mount Diode TO-263 200 V 20 A BYV32EB-200,118
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Height | 4.5mm |
| Length | 10.3mm |
| Model | BYV32EB-200,118 |
| Width | 9.4mm |
| Mount Type | Surface |
| Series | BYV32EB-200 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Common Cathode |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 137A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 25ns |
| Diode, Schottky, SMT, BYV32EB-200Brand | NXP |
Key Features
- This diode has a maximum continuous forward current of 20 A.
- The peak reverse repetitive voltage is 200 V ensuring robust voltage handling.
- Features a common cathode diode configuration with a 3-pin setup for easy PCB installation.
- Maximum forward voltage drop is 1.15 V to optimize efficiency.
- Equipped with a fast peak reverse recovery time of 25 ns for high frequency switching.
- Operates reliably between -40°C to 150°C for a wide temperature range.
- Its compact TO-263 surface mount package measures 10.3 mm length, 9.4 mm width, and 4.5 mm height.
- The diode supports a peak non-repetitive forward surge current of 137 A for transient conditions.
Product Description
WeEn Semiconductors Co., Ltd BYV32EB-200,118 is a high-performance general-purpose diode designed for surface mount applications. Featuring a TO-263 package and 3-pin common cathode configuration, this diode supports a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 200 V. It provides a maximum forward voltage of 1.15 V, allowing for efficient power rectification in various electronic circuits.
The diode is suitable for demanding industrial and commercial applications due to its fast peak reverse recovery time of 25 ns and operation within a wide temperature range of -40°C to 150°C. Its robust peak non-repetitive forward surge current rating of 137 A ensures it can handle transient overloads without damage.
This component is ideal for use in power supplies, inverters, and other semiconductor switching applications where reliable rectification is essential. Measuring compact dimensions of 10.3 mm in length, 9.4 mm in width, and 4.5 mm in height, the surface mount TO-263 package facilitates easy integration onto printed circuit boards, enhancing assembly efficiency.
Manufactured in the Philippines, the BYV32EB-200,118 diode from WeEn Semiconductors combines excellent electrical characteristics and reliability suitable for industrial, commercial, and power electronics sectors.
Maximum continuous forward current: 20 A. Peak reverse repetitive voltage: 200 V. Common cathode diode configuration with 3 pins. Maximum forward voltage drop of 1.15 V. Fast peak reverse recovery time of 25 ns. Operating temperature range from -40°C to 150°C.
Peak non-repetitive forward surge current of 137 A. Compact TO-263 surface mount package for efficient PCB assembly. General purpose rectifier diode suited for power electronics. Manufactured in Philippines ensuring quality control.
Explore the full range of high-quality semiconductor components by WeEn Semiconductors Co., Ltd on EnvMart for your next industrial project or electronic design.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 20 A.
This model has a peak reverse repetitive voltage rating of 200 V.
The maximum forward voltage drop is 1.15 V.
It operates reliably between -40°C and 150°C.
The peak non-repetitive forward surge current rating is 137 A.
The diode comes in a TO-263 surface mount package.
This diode features a common cathode configuration with 3 pins.
The peak reverse recovery time is 25 ns.
The dimensions of the TO-263 package are 10.3 mm in length, 9.4 mm in width, and 4.5 mm in height.
It is suitable for power supplies, inverters, and other semiconductor switching applications.
This diode is manufactured in the Philippines.
It is classified as a general-purpose rectifier diode.
