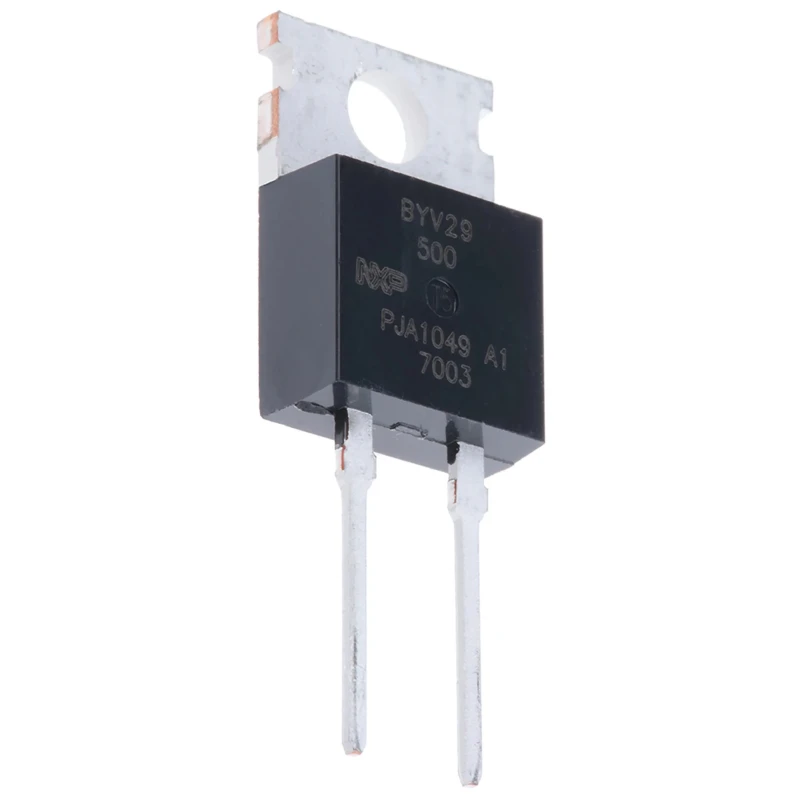

WeEn Semiconductors Co., Ltd 500 V 9 A General Purpose 2-Pin Diode TO-220AC BYV29-500,127
Specifications
| Country of Origin | India |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Height | 9.4mm |
| Length | 10.3mm |
| Model | BYV29-500,127 |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | BYV29-500 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 9A |
| Peak Reverse Repetitive Voltage Vrrm | 500V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 1.4V |
| Peak Reverse Recovery Time trr | 60ns |
Key Features
- Mount type is through hole for easy PCB installation.
- Maximum continuous forward current is rated at 9 amperes.
- Peak reverse repetitive voltage is capable up to 500 volts.
- Diode features peak non-repetitive surge current of 110 amperes.
- Maximum forward voltage drop is 1.4 volts.
- Peak reverse current is low at 50 microamperes, ensuring performance.
- Maximum operating temperature reaches 150 degrees Celsius.
- Peak reverse recovery time is fast at 60 nanoseconds.
Product Description
WeEn Semiconductors Co., Ltd BYV29-500,127 is a 500 V 9 A general purpose diode housed in a TO-220AC through-hole package. Suited for electronic industrial use, this discrete semiconductor device features robust performance suitable for power rectification and switching operations in electrical and electronics circuits.
The diode configuration is single with a general purpose rectifier type. It withstands continuous forward currents of up to 9 amperes and peak reverse repetitive voltages of 500 volts, making it ideal for medium-power applications. Its peak non-repetitive forward surge current of 110 amperes offers durability against transient conditions.
Characterized by a maximum forward voltage drop of 1.4 V and a low peak reverse current of 50 μA, the device ensures efficient conduction with minimal leakage losses. The maximum operating temperature is 150°C, allowing for reliable operation in varied environmental conditions.
This diode exhibits a fast peak reverse recovery time of 60 nanoseconds, enhancing switching efficiency and reducing power dissipation in high-speed circuits. Dimensionally compact, it measures 10.3 mm in length, 4.7 mm in width, and 9.4 mm in height, facilitating versatile mounting options.
Typical applications include power supplies, rectifiers, and general power electronic assemblies in industrial, manufacturing, and automotive systems, although it is not certified for automotive standard use.
Mount type is through hole for secure installation in PCBs. Maximum continuous forward current rating at 9 A. Peak reverse repetitive voltage at 500 V. Peak non-repetitive forward surge current at 110 A. Forward voltage drop maximum 1.4 V for efficient conduction.
Low peak reverse current at 50 μA reduces leakage losses. Operates reliably at temperatures up to 150°C. Fast recovery time of 60 ns suitable for switching applications. Compact dimensions suitable for space-conscious designs.
The product is brand new and made in India, intended for various electronic component uses where reliable diode performance is essential. Explore more from WeEn Semiconductors Co., Ltd and the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 9 amperes.
The peak reverse repetitive voltage for this model is 500 volts.
The maximum forward voltage drop is 1.4 volts.
It can handle a peak non-repetitive forward surge current of 110 amperes.
The dimensions of the TO-220AC package are 10.3 mm in length, 4.7 mm in width, and 9.4 mm in height.
The peak reverse recovery time is 60 nanoseconds.
The minimum operating temperature is -40 degrees Celsius.
The maximum operating temperature reaches 150 degrees Celsius.
This diode uses a through-hole mounting type for easy PCB installation.
The peak reverse current is low at 50 microamperes.
The diode configuration is single, designed as a general purpose rectifier.
This diode is suitable for applications such as power supplies, rectifiers, and general power electronic assemblies.
