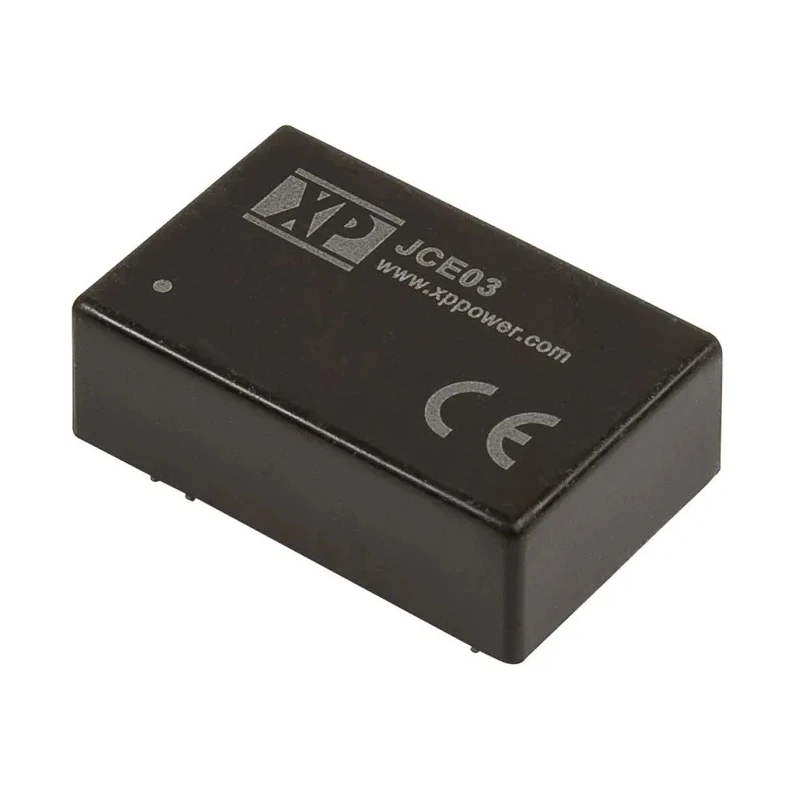

XP Power Isolated 3W DC/DC Converter 3.3V DC Output 900 mA 9V-18V DC Input Through Hole DIP24 Package JCE03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 74% |
| Length | 31.75mm |
| Model | JCE03 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCE03 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 900mA |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Provides isolated, fully regulated single output DC-DC conversion.
- Operates with a wide input voltage range of 9 V to 18 V DC.
- Supports output current up to 900 mA at 3.3 V output voltage.
- Features industry standard 24-pin DIP through-hole mounting package.
- Offers 1500 VDC isolation voltage with optional 3000 VDC.
- Maintains efficiency of approximately 74% during operation.
- Designed for operating temperature range from -40 °C up to 100 °C.
- Suitable for industrial, commercial, and electronic power supply applications.
Product Description
XP Power JCE03 series isolated DC/DC converter provides high reliability fully regulated 3 W power supply with 3.3 V DC output at 900 mA and operates over a wide input voltage range of 9 to 18 V DC. It features an industry standard 24-pin DIP through-hole package suitable for various mounting options.
Designed with 1500 VDC isolation for safety and noise reduction, the JCE03 converter offers optional 3000 VDC isolation for enhanced applications. Its 2:1 input voltage ratio enables flexibility across 9 to 18 V inputs with no minimum load requirement.
The converter maintains approximately 74% efficiency and operates reliably in harsh environments with an extended temperature range from -40 °C to 100 °C. Its compact size makes it ideal for space-constrained power management in industrial control systems, instrumentation, telecom, and other electronic equipment.
Isolated and fully regulated 3 W DC/DC power conversion. 9 V to 18 V DC input voltage range with 2:1 input ratio. Single 3.3 V DC output delivering 900 mA current. Industry standard 24-pin DIP through-hole mounting type.
1500 VDC isolation voltage, with optional 3000 VDC. High operating efficiency at 74%. Wide operating temperature from -40 °C to 100 °C for robust use. Compact dimensions: 31.75 × 20.32 × 10.16 mm (L × W × D). It is suited for demanding RC, industrial, laboratory, telecom, and commercial electronic power supply tasks.
Explore additional XP Power DC/DC Converters and power supplies on EnvMart for reliable industrial and commercial power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter operates over a wide input voltage range of 9 V to 18 V DC.
This model provides a maximum output power of 3 W.
It delivers a single output voltage of 3.3 V at a maximum output current of 900 mA.
The converter features an industry standard 24-pin DIP through-hole mounting package.
It has an isolation voltage of 1500 VDC, with an optional 3000 VDC for enhanced applications.
The converter maintains an efficiency of approximately 74% during operation.
The dimensions are 31.75 mm in length, 20.32 mm in width, and 10.16 mm in depth.
It is designed to operate in a temperature range from -40 °C to 100 °C.
This model is suitable for industrial, commercial, and electronic power supply applications.
The converter operates with no minimum load requirement, providing flexibility in various applications.
It features a 2:1 input voltage ratio, allowing for flexibility across the input range.
The country of origin for this model is Taiwan.
