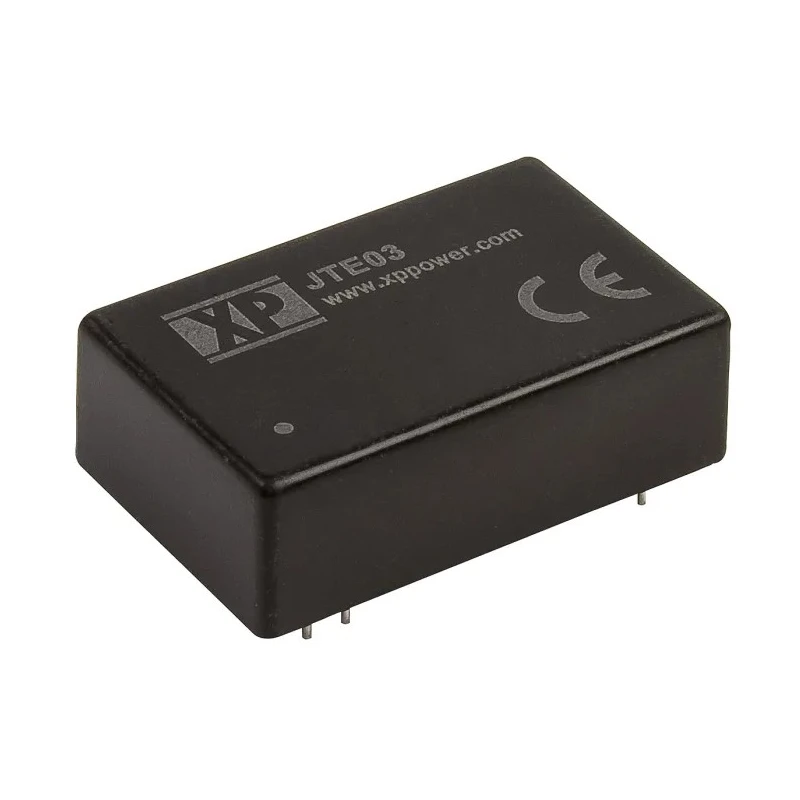

XP Power DC/DC Converter -3.3V, 3.3 V Output, 450 mA, 36 V DC Input, 9 V Input, 3 W, Through Hole, DIP-24 Package JTE03

The XP Power JTE03 DC/DC Converter model JTE03 is a versatile power supply module providing fully regulated dual outputs at -3.3 V and 3.3 V with a continuous maximum output current of 450 mA. Designed for applications within industrial, laboratory, instrumentation, and control systems, it ensures reliable voltage conversion with an input voltage range spanning 9 V to 36 V DC and an input voltage ratio of 4:1. Packaged in a DIP-24 plastic casing for robust through-hole mounting, the converter exhibits exceptional thermal tolerance with an operating temperature range from -40 °C to 100 °C, enabling operation in diverse environments.

This 3 watt power module reaches a typical efficiency of 75%, contributing to energy-efficient operation. It provides an isolation voltage of 1500 V DC which protects against ground loops and electrical interference, critical for sensitive electronic circuits. The unit requires no minimum load, ensuring stable output even under light load conditions, enhancing versatility for varying system demands.

Dimensions are compact with the converter measuring 31.75 mm in length, 20.32 mm in width, and 10.16 mm in depth. Its 24-pin DIP packaging allows for easy integration onto PCBs while offering long-term operational stability, reflected by its impressive mean time between failures (MTBF) of 800 million hours.

The JTE03 series does not specify certifications but is manufactured in Taiwan, Province Of China, underscoring quality production standards. This converter is an ideal component for electronic design projects, industrial controls, telecommunications, and other power management uses requiring regulated dual output voltages with high reliability.

Dual regulated output voltages at -3.3 V and 3.3 V. Wide DC input voltage range from 9 V to 36 V. High isolation voltage of 1500 V DC for noise immunity. Robust DIP-24 through-hole package for easy PCB mounting. Operating temperature from -40 °C to 100 °C for demanding environments.

Power rating of 3 W with 75% efficiency. No minimum load required for flexible applications. Long MTBF of 800,000,000 hours ensuring reliability.

This product fits within the XP Power DC/DC Converter range, providing efficient voltage conversion solutions suitable for multiple industry sectors including industrial automation, instrumentation, aerospace, and communications. For extended capabilities and design support, consider other models in XP Power’s extensive power product portfolio available at EnvMart.
