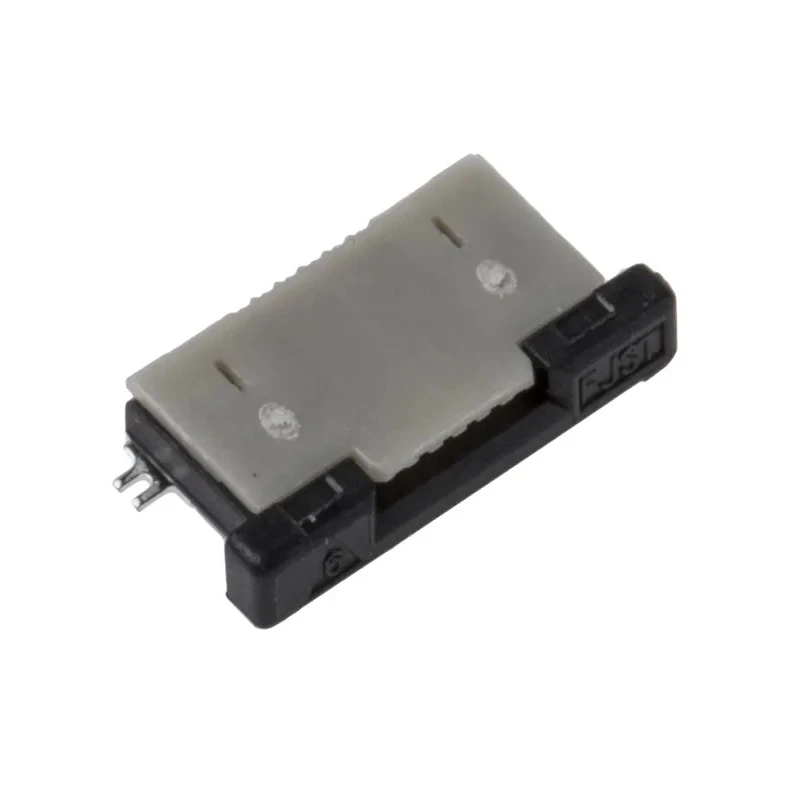

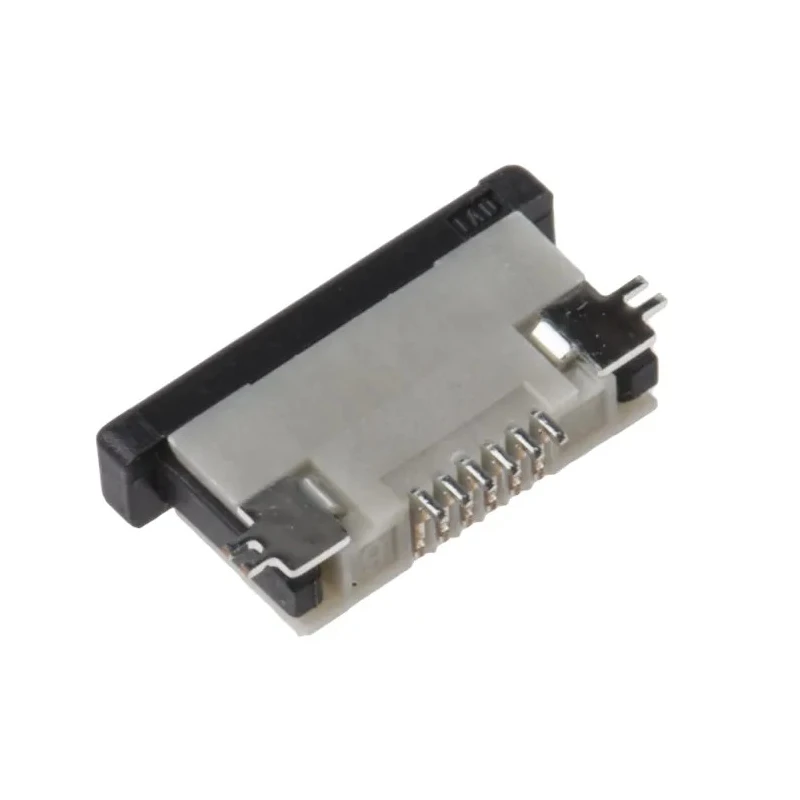

JST FLZ 0.5 mm Pitch 6 Way Right Angle Female FPC Connector, Solder 06FLZ-SM2-TB(LF)(SN)(P)

Free Delivery in India | Lowest Global Shipping Charges

JST FLZ 0.5 mm Pitch 6 Way Right Angle Female FPC Connector, Solder 06FLZ-SM2-TB(LF)(SN)(P)



Category FPC Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	50, 50V ac
Brand	JST
Orientation	Right Angle
Current	500mA
Model	06FLZ-SM2-TB(LF)(SN)(P)
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Phosphor Bronze
Series	FLZ
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

Features a 0.5 mm pitch and six contact positions for precise connections.
Equipped with a zero insertion force (ZIF) mechanism to reduce wear during repeated use.
Constructed with phosphor bronze contacts plated with tin for excellent conductivity and durability.
Made from polyamide 6T housing material, providing heat resistance and compatibility with SMT reflow soldering.
Supports a voltage rating of 50V ac and current capacity of 500mA suitable for various low power electronic circuits.
Designed for right angle orientation with female connector gender and solder termination type.
Operates reliably within a temperature range of -25°C to 85°C ensuring robust performance.
Includes a locking mechanism and top contact positions to secure connections firmly.

Product Description

JST 06FLZ-SM2-TB(LF)(SN)(P) is a 6 Way Right Angle Female FPC Connector from the FLZ series featuring a 0.5 mm pitch. It is designed for surface mount technology (SMT) applications that demand compact and reliable electronic connections.

The connector employs a zero insertion force (ZIF) mechanism which minimizes contact wear and extends the lifespan of the connector, making it ideal for frequent connect/disconnect cycles. The housing is constructed from polyamide 6T thermoplastic, offering heat resistance and compatibility with SMT reflow soldering processes.

The contacts are made of phosphor bronze and plated with tin, ensuring excellent conductivity and mechanical durability. This connector supports a voltage rating of 50V ac and a current rating of 500mA, making it suitable for low power electronics such as FPC/FFC cabling in consumer electronics, industrial equipment, HVAC controls, and embedded systems.

Its right angle orientation and top contact positions allow versatile PCB layout and assembly options, especially useful where space is limited due to its low profile height of 2.00 mm above the PCB surface. Additionally, the connector features a locking mechanism to secure the cable firmly during operation.

Operating temperature range from -25°C to 85°C ensures this connector can perform reliably in varied industrial and commercial environments. The product is manufactured in Japan, affirming quality and conformity to high standards.

Compact space-saving design with low profile height of 2.00 mm above PCB. Zero insertion force (ZIF) mechanism enhances durability and wear resistance. Heat resistant polyamide 6T housing allows reflow solder compatibility.

Phosphor bronze contacts provide excellent electrical performance. Tin plating improves contact reliability and corrosion resistance. Right angle female contact suitable for diverse PCB layouts. Supports 50V ac voltage and 500mA current capacity.

Locking mechanism ensures secure cable attachment. Wide operating temperature range from -25°C to 85°C. Made in Japan ensuring premium manufacturing quality standards.

This FLZ series FPC Connector is ideal for use in electronic component assemblies across industries such as industrial automation, consumer electronics, telecommunications, and automotive electronics where reliable, small form factor connectors are necessary. Explore more connectors and related components on EnvMart for your design and manufacturing needs.
