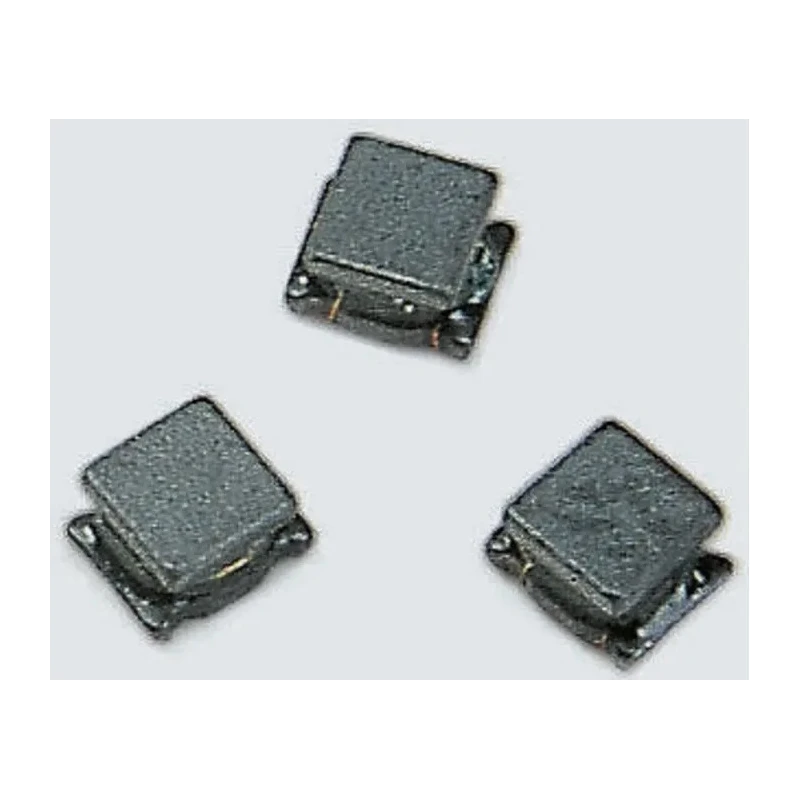

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±10% 170mA LQH32CN470K23L

Free Delivery in India | Lowest Global Shipping Charges

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±10% 170mA LQH32CN470K23L

Name: Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±10% 170mA LQH32CN470K23L
Brand: Murata
SKU: 188349
Price: 0.11 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	2mm
Length	3.2mm
Model	LQH32CN470K23L
Depth	2.5mm
Series	LQH
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	47μH
Standards/Approvals	RoHS
Package/Case	1210
Maximum DC Current	170mA
Maximum DC Resistance	1.3Ω
Inductance Tolerance	±10 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	15MHz
Inductor Construction	Wirewound

Key Features

The inductor has a 1210 package size with surface mount termination style.
Constructed with a ferrite core for high quality and low DC resistance.
Operates within a temperature range of -40°C to 85°C ensuring high temperature stability.
This wirewound inductor includes shielding to reduce electromagnetic interference.
Suitable for filtration applications in switch mode power supplies.
It features a maximum DC resistance of 1.3Ω and a maximum self-resonant frequency of 15MHz.
The dimensions are 3.2mm length, 2mm height, and 2.5mm depth.
Manufactured with RoHS compliance and moulded construction.

Product Description

Murata LQH32CN470K23L is a high-quality 1210-size shielded wirewound Surface Mount Inductor designed with a ferrite core. This inductor provides an inductance of 47μH with a ±10% tolerance and supports a maximum DC current of 170mA, making it suitable for precision electronic filtering applications.

The product features a surface mount termination style and is constructed to ensure low DC resistance (1.3Ω), which contributes to low power loss and minimal heat generation. It operates reliably within a temperature range from -40°C to 85°C, offering excellent temperature stability, which is crucial for industrial, commercial, and consumer electronic devices.

Shielding is incorporated to mitigate electromagnetic interference, improving signal integrity in sensitive circuit designs, especially in switch mode power supplies where noise filtering is essential. The maximum self-resonant frequency is 15MHz, allowing for effective performance in high-frequency applications.

Physical dimensions are compact with a length of 3.2mm, height of 2mm, and depth of 2.5mm, fitting standard PCB footprints. The product is RoHS compliant, indicating adherence to environmental and safety standards, and features moulded construction for durability and consistent performance.

Manufactured in Japan, the LQH series inductors by Murata are renowned for their reliability and precision in electronic component applications such as power supplies, communications equipment, and industrial electronics.

The inductor offers ferrite core construction for efficient magnetic performance. Surface mount style simplifies automated PCB assembly. Low DC resistance ensures energy efficiency. High temperature operation supports industrial use cases.

Shielding reduces electromagnetic interference in sensitive circuits. Compact 1210 case size fits common design footprints. RoHS compliant to meet regulatory environmental standards. Japan origin assures quality manufacturing standards.
