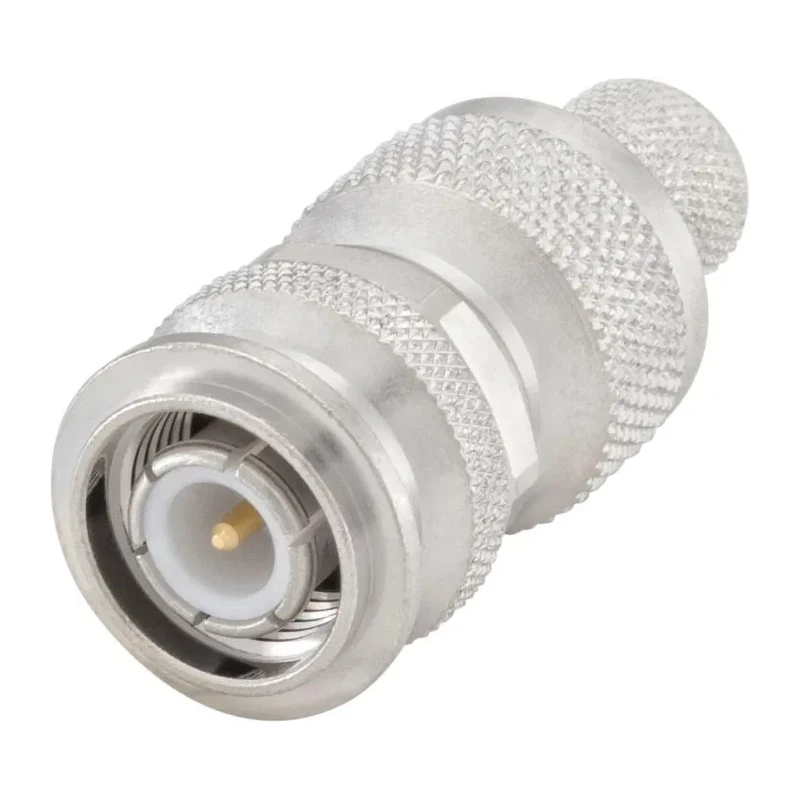

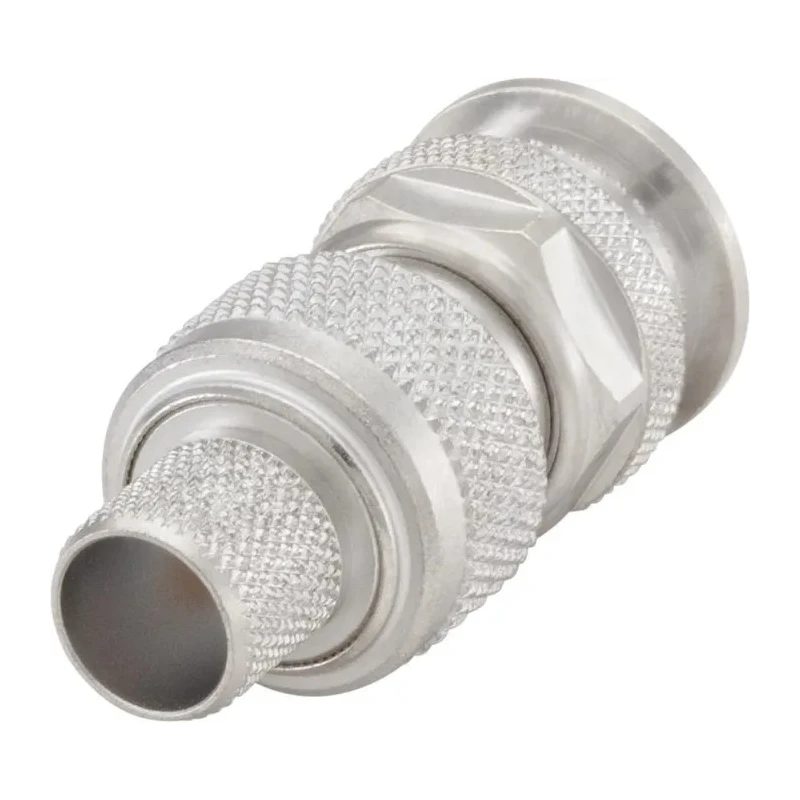

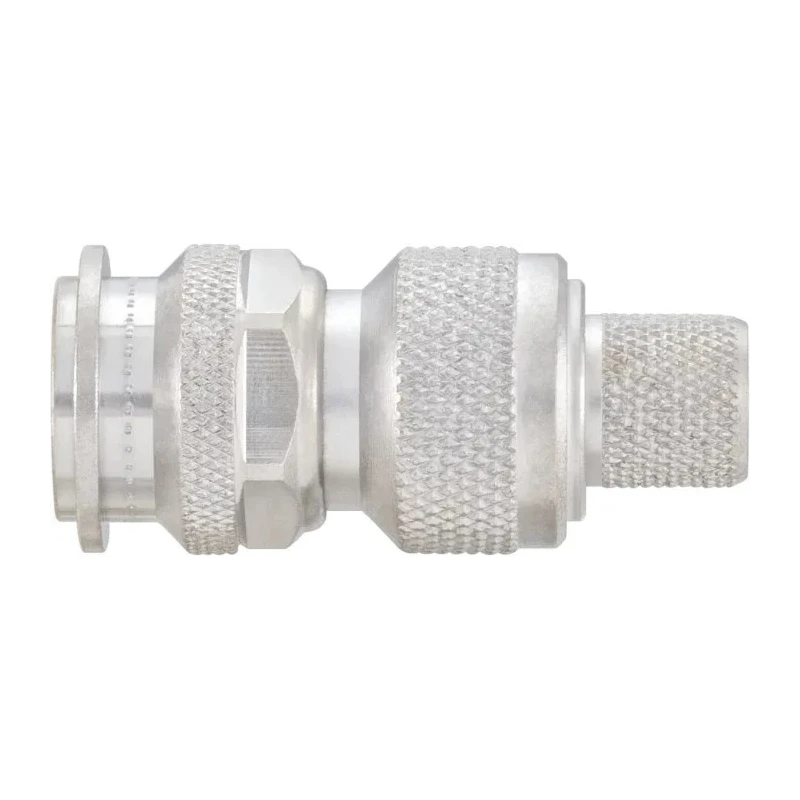

Rosenberger TNC Series Coaxial Connector Cable Male TNC, 50 Ω, Straight Body Crimp 56S101-115N5
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Rosenberger |
| Orientation | Straight |
| Model | 56S101-115N5 |
| Mount Type | Cable |
| Operating Frequency | 10GHz |
| Contact Material | Brass |
| Series | TNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG213 |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | TNC |
| Body Plating | White Bronze |
Key Features
- The connector features a 50 ohm impedance, supporting signals up to 10 GHz frequency.
- It has a male TNC type connector with straight orientation for cable mounting.
- The cable type is RG213 with a standard size and bulkhead suitability for secure installation.
- The body is plated with white bronze for durability and corrosion resistance.
- Contact material is brass with gold plating to ensure excellent conductivity and longevity.
- The connector uses a crimp termination type for reliable electrical contact.
- Operating temperature range spans from -40°C to 85°C, suitable for diverse environments.
- The threaded screw coupling enables strong retention in high vibration conditions.
Product Description
Rosenberger 56S101-115N5 TNC Series Coaxial Connector Cable is a high-performance male TNC connector designed for cable mounting applications with 50 Ω impedance. It is engineered to support operating frequencies up to 10 GHz, making it ideal for RF circuits requiring stable and low-loss connections.
This connector features a straight body orientation and uses RG213 cable, recognized for its standard size and robustness in signal transmission. The body plating is finished in white bronze, enhancing corrosion resistance and durability in industrial and commercial use.
The contact system comprises brass material with gold plating, ensuring excellent electrical conductivity and resistance to oxidation. The crimp termination type establishes a secure and stable connection suitable for frequent use and demanding environments.
Its operational temperature range from -40°C to 85°C allows for deployment in various harsh conditions including industrial, military, broadband, and wireless communication systems. The threaded screw coupling provides reliable locking and high mechanical stability, especially in high vibration areas.
Applications include antennas, industrial electronics, wireless communication, military equipment, and broadband networking. Rosenberger connectors are recognized worldwide for superior quality and performance.
The connector features a 50 ohm impedance, supporting signals up to 10 GHz frequency. It has a male TNC type connector with straight orientation for cable mounting. The cable type is RG213 with a standard size and bulkhead suitability for secure installation.
The body is plated with white bronze for durability and corrosion resistance. Contact material is brass with gold plating to ensure excellent conductivity and longevity. The connector uses a crimp termination type for reliable electrical contact.
Operating temperature range spans from -40°C to 85°C, suitable for diverse environments. The threaded screw coupling enables strong retention in high vibration conditions. Explore more connectors and coaxial cable solutions in the Electronics Components range at EnvMart for your industrial, laboratory, and communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 50 Ω impedance, suitable for RF applications.
It supports signals up to 10 GHz frequency, making it ideal for high-frequency applications.
The connector is designed for use with RG213 cable, which is recognized for its standard size and robustness.
The operating temperature range spans from -40°C to 85°C, allowing for use in diverse environments.
The body is plated with white bronze for corrosion resistance, and the contact material is brass with gold plating for excellent conductivity.
It uses a crimp termination type, which provides a reliable electrical contact.
This model has a straight body orientation, suitable for cable mounting applications.
It features a threaded screw coupling, which ensures strong retention in high vibration conditions.
The connector is a male TNC type, designed for secure connections with compatible female connectors.
The country of origin for this connector is Germany.
It is suitable for antennas, industrial electronics, wireless communication, military equipment, and broadband networking.
The contact is plated with gold to ensure excellent conductivity and resistance to oxidation.
