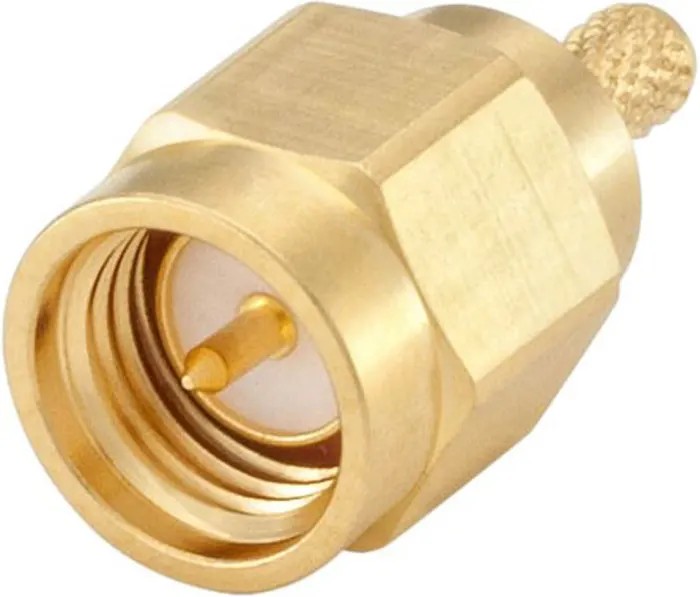

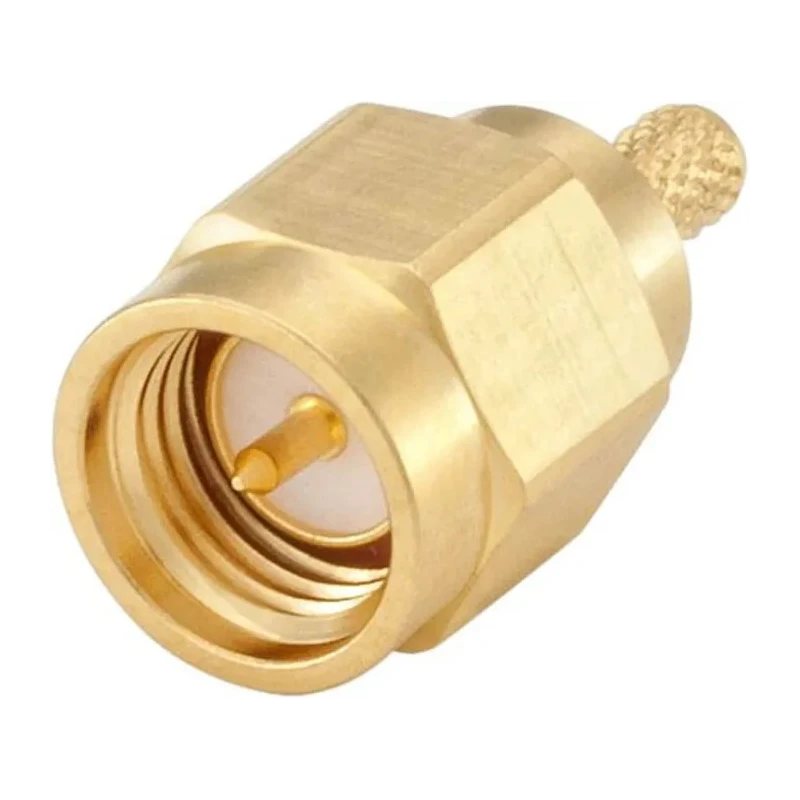

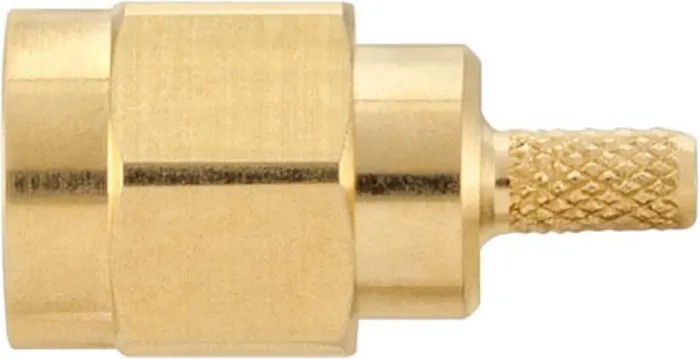

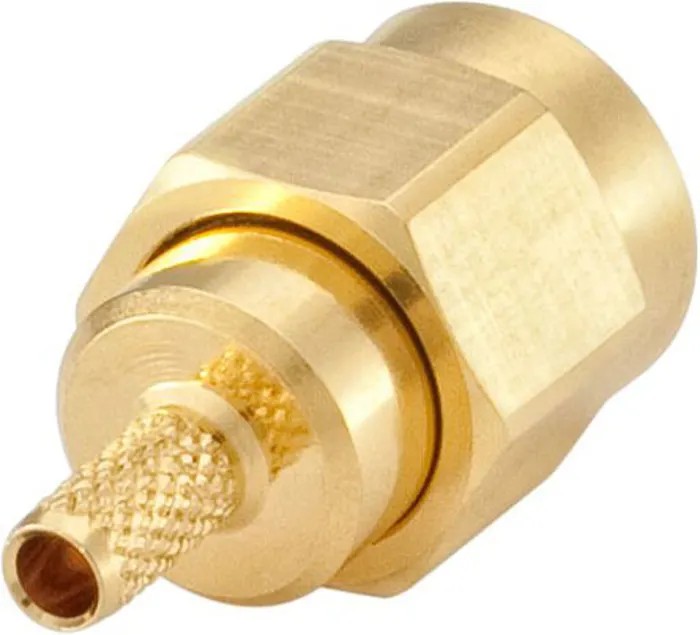

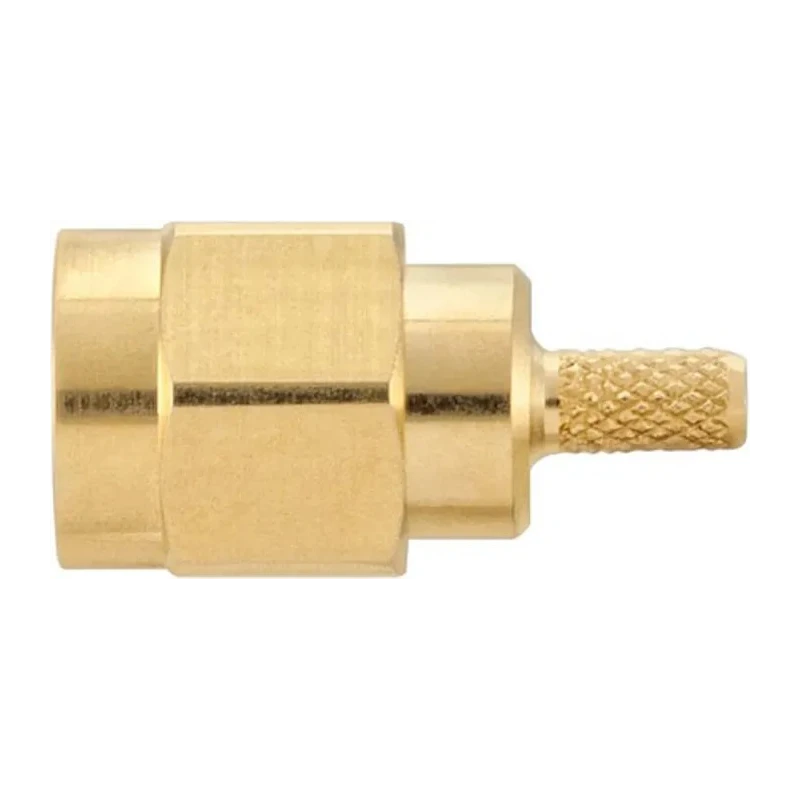

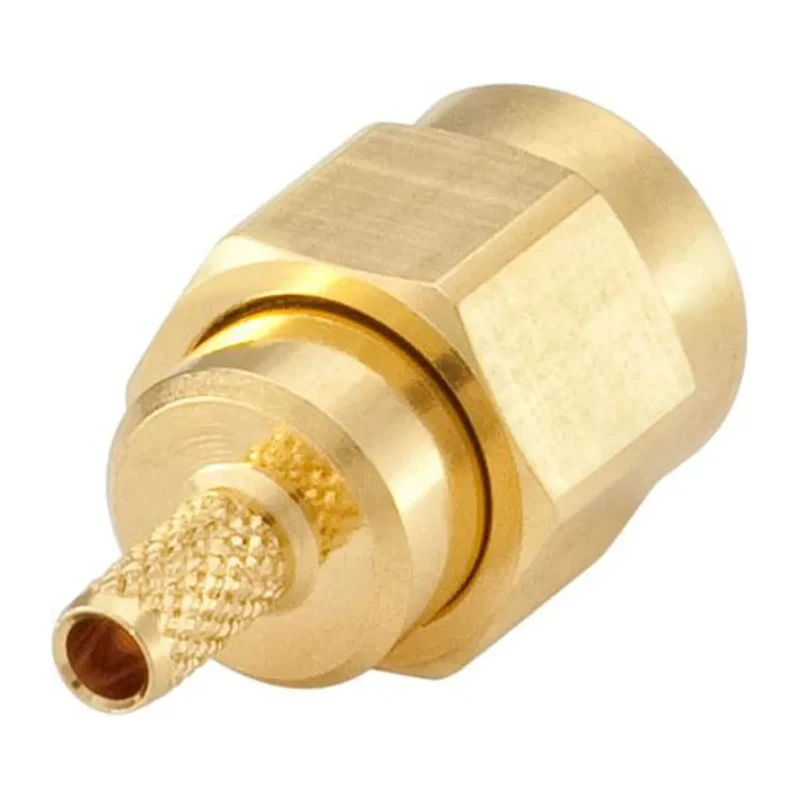

Rosenberger 32 Series Coaxial Connector Cable Male SMA, 50 Ω, Straight Body Crimp 32S107-303L5

Rosenberger 32S107-303L5 is a high-quality 32 Series Coaxial Connector designed for cable-mounted RF applications. It features a male SMA connector with 50 Ω impedance, ensuring excellent signal integrity for high-frequency transmissions up to 18 GHz. The connector includes a gold-plated body and brass centre contacts plated in gold for superior conductivity and corrosion resistance.

This coaxial connector employs a screw coupling mechanism that enhances connection stability and prevents accidental decoupling. Its straight body design with crimp termination supports flexible cables and normal polarity configurations, making it suitable for various technical installations.

The Rosenberger 32S107-303L5 connector is engineered to withstand harsh environmental conditions with a broad operating temperature range from -65°C up to 165°C. This makes it ideal for industrial, communications, laboratory instrumentation, base station, PC/LAN, and other electronic equipment requiring reliable RF interfacing.

The subminiature size of this SMA connector supports tight spaces without compromising performance, providing compact and robust connectivity. This connector complies with applicable interface standards IEC 60169-15, EN122110, and MIL-STD-348AF.

Body and centre contacts are plated with gold to ensure minimal signal loss and resistance. The crimp termination type enhances the durability and mechanical stability of cable connections. Designed for applications in industrial, telecommunications, and laboratory environments.

Its male gender and straight orientation are compatible with a wide range of mating connectors.

Choose Rosenberger 32 Series Coaxial Connectors for reliable, high-frequency cable connections with exceptional mechanical and electrical performance. Explore the extensive range of Rosenberger coaxial products on EnvMart for all your specialized connector needs.
