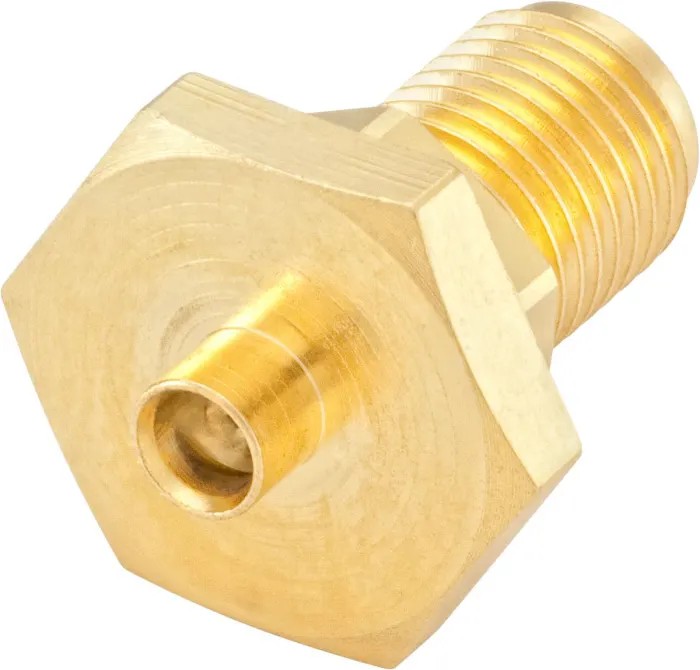

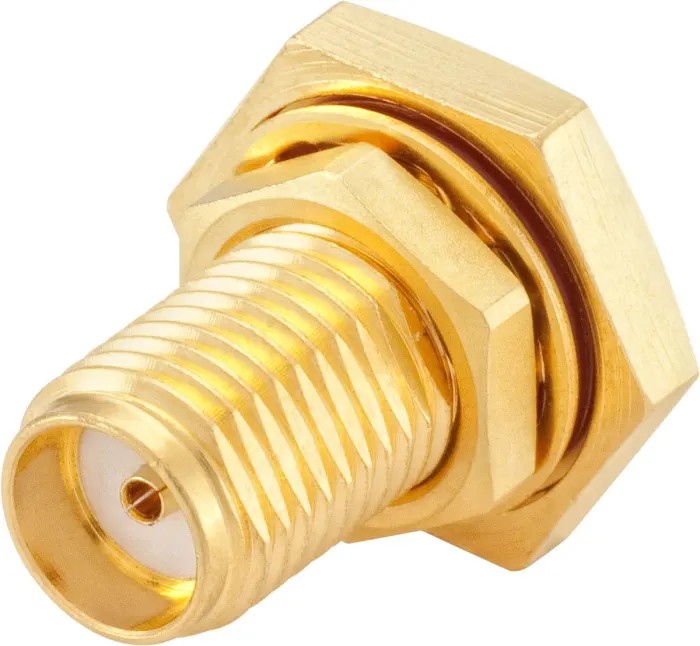

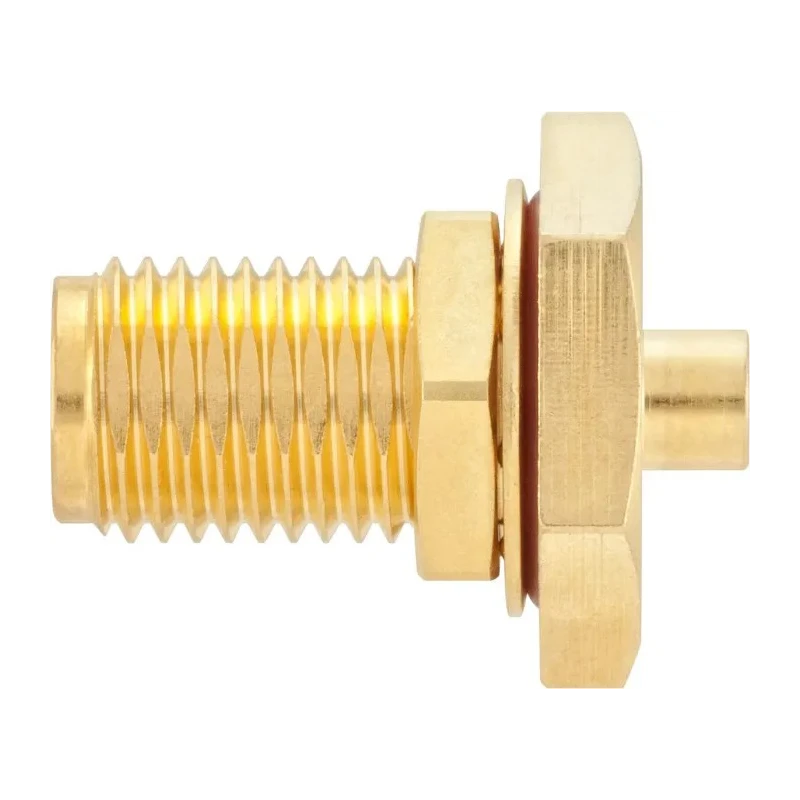

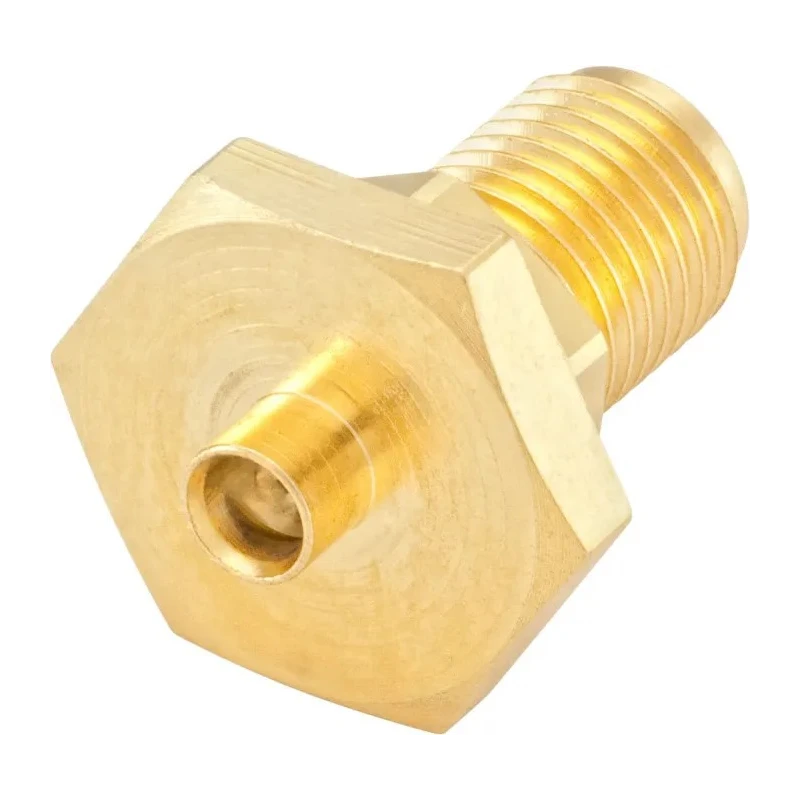

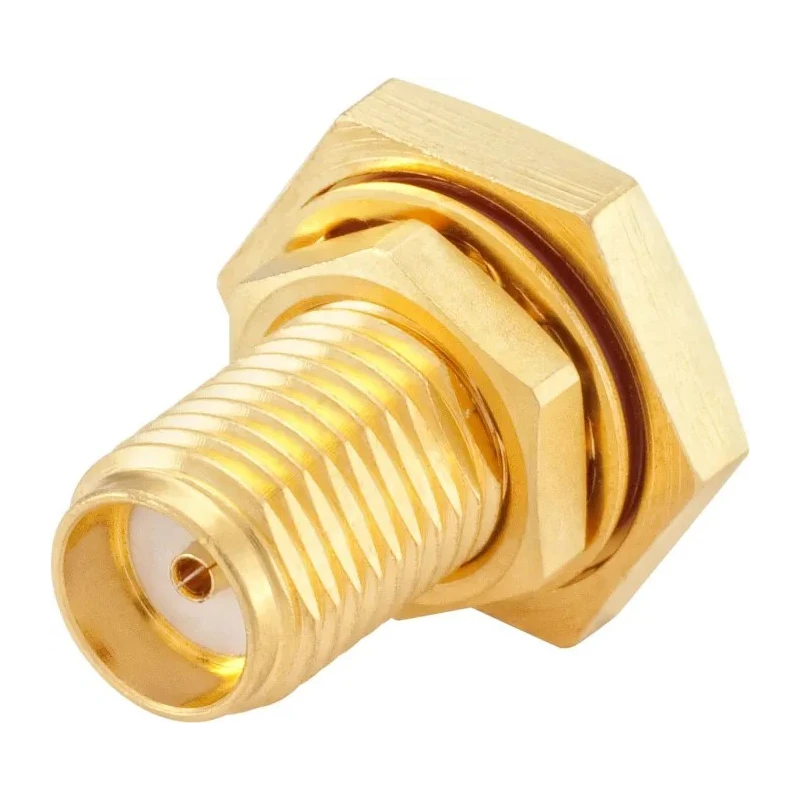

Rosenberger 32 Series Coaxial Connector Panel Mount Female SMA 50 Ω Straight Body Solder 32K601-271L5

Rosenberger 32K601-271L5 32 Series coaxial connector is a high-quality panel mount female SMA type designed for RF applications requiring 50 Ω impedance and straight body solder termination. Manufactured in Germany, this connector complies with IEC 60169-15 and MIL-STD-348A interface standards.

Featuring a gold plated body and gold plated brass center contacts, it offers low signal loss, excellent conductivity, and high corrosion resistance. Its compact subminiature size and secure screw coupling mechanism make it ideal for instrumentation, base stations, and PC/LAN equipment where reliable signal integrity is crucial.

The connector supports a wide operating frequency range up to 18 GHz and operates reliably in extreme temperature environments ranging from -65°C up to 165°C. The semi-rigid cable compatibility and panel mount bulkhead design allow straightforward assembly and robust mechanical stability.

The 32 series connector provides normal polarity with female connector and contact genders, ensuring standardized connectivity requirements for diverse industrial and laboratory RF applications.

Operates up to 18 GHz frequency ensuring high-performance RF transmission. Gold plated body and gold plated brass centre contacts for durability and excellent conductivity. Compatible with semi-rigid cables and features screw coupling for secure connections.

Compact subminiature size suitable for space-constrained installations. Wide operating temperature range from -65°C to 165°C for harsh environments. Panel mount bulkhead design facilitates easy integration into equipment.

Contact and connector gender both female, polarity normal for standard applications. Robust brass contact material with gold plating ensures corrosion resistance. Ideal for instrumentation, base stations, and PC/LAN RF connector applications.

This Rosenberger coaxial connector is engineered for industrial, laboratory, telecommunications, and manufacturing sectors that demand precision connectivity components. Browse EnvMart’s range of Coaxial Connectors for compatible assembly parts and accessories.
