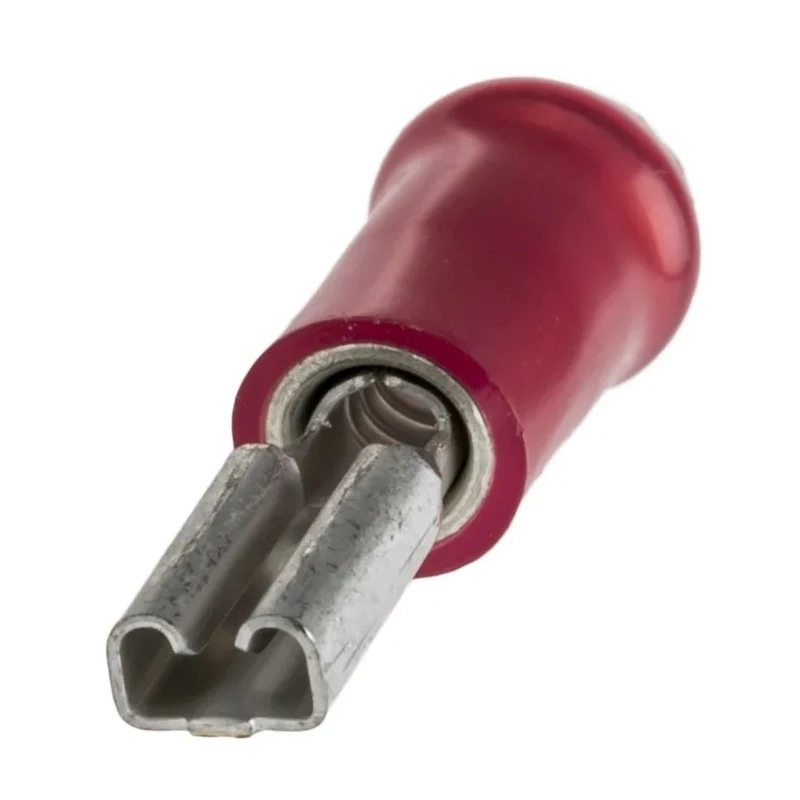

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.79 mm Tab Size 22 AWG to 16 AWG 165566-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Model | 165566-1 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19.8mm |
| Contact Material | Brass |
| Series | PIDG FASTON .110 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 2.79mm |
| Tab Thickness | 0.79mm |
| Tab Size | 2.79 x 0.79 mm |
| 110IN RECEP.REDX0.8Brand | TE Connectivity |
Key Features
- Constructed with brass contact material plated with tin for reliable conductivity.
- Nylon insulation in red color provides electrical isolation and durability.
- Straight orientation ensures easy connection in wiring applications.
- Overall length measures 19.8 mm suitable for compact installations.
- Compatible with a range of wire sizes from 0.3 mm² to 1.5 mm² ensuring flexibility.
- Designed as a female spade connector for quick disconnect applications.
- Part of the PIDG FASTON .110 series, ensuring industry-standard compatibility.
Product Description
TE Connectivity 165566-1 PIDG FASTON .110 Red Insulated Female Spade Connector is engineered for reliable and fast wire termination in electronic and electrical applications. Featuring a 2.79 x 0.79 mm tab size, this crimp-type connector accommodates wire sizes from 22 AWG to 16 AWG (0.3 mm² to 1.5 mm²), ensuring compatibility with a wide range of wiring needs.
The connector contact is made of brass and plated with tin, delivering excellent conductivity and corrosion resistance for durable performance. The red nylon insulation sleeve provides robust electrical insulation and mechanical protection to the terminal and wire connection.
This female spade terminal is straight in orientation and measures an overall length of 19.8 mm, making it suitable for use in tight and standard wiring assemblies. The precision-formed metal wire barrel incorporates serrations to maximize tensile strength and contact security after crimping.
TE Connectivity's PIDG FASTON .110 connectors are widely used in various industrial electronics, automotive wiring harnesses, and manufacturing environments requiring secure and fast electrical connections.
Constructed with brass contact material plated with tin for reliable conductivity. Nylon insulation in red color provides electrical isolation and durability. Straight orientation ensures easy connection in wiring applications.
Overall length measures 19.8 mm suitable for compact installations. Compatible with a range of wire sizes from 0.3 mm² to 1.5 mm² ensuring flexibility. Designed as a female Spade Connector for quick disconnect applications.
Part of the PIDG FASTON .110 series, ensuring industry-standard compatibility. This product is new and manufactured to meet demanding applications in electronics, electrical power distribution, industrial automation, and automotive sectors.
Explore more TE Connectivity wire terminals and connectors in the Electronics & Electricals category on EnvMart for comprehensive connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG to 16 AWG, which corresponds to a range of 0.3 mm² to 1.5 mm².
The tab size measures 2.79 mm in width and 0.79 mm in thickness.
The overall length of this connector is 19.8 mm, making it suitable for compact installations.
The contact material is brass plated with tin, while the insulation is made of red nylon.
It utilizes a crimp termination type for secure wire connections.
Yes, this model is designed with a straight orientation for easy connection in wiring applications.
This connector is part of the PIDG FASTON .110 series, ensuring compatibility with industry standards.
This model is a female spade connector, designed for quick disconnect applications.
The country of origin for this connector is India.
The insulation is made from nylon, providing electrical isolation and durability.
It is widely used in industrial electronics, automotive wiring harnesses, and manufacturing environments requiring secure electrical connections.
The precision-formed metal wire barrel incorporates serrations to maximize tensile strength and contact security after crimping.
