TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Red 130008

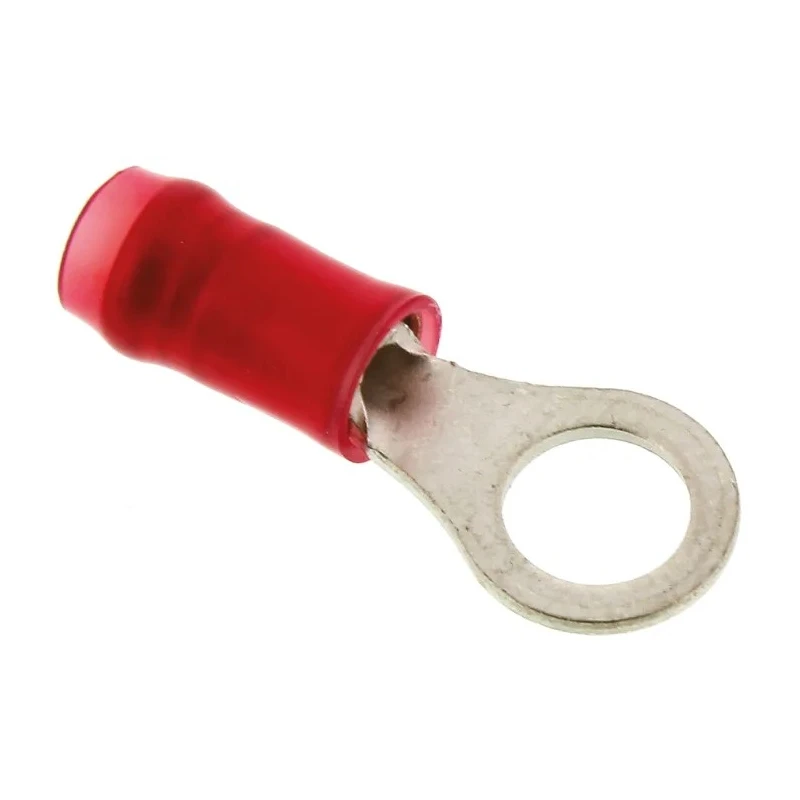

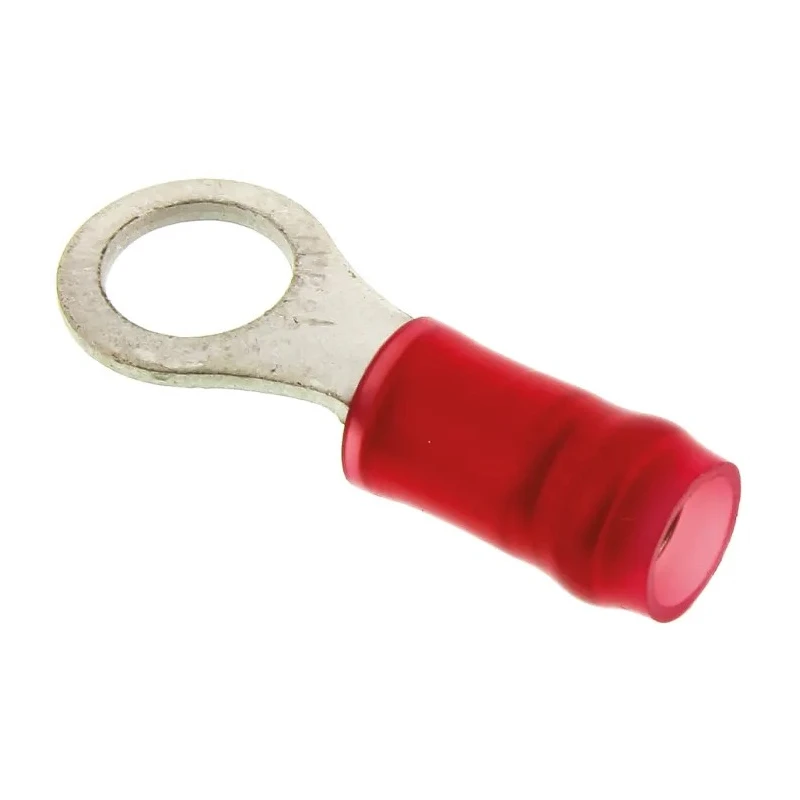

TE Connectivity 130008 PIDG insulated ring terminal is engineered to provide reliable and uniform crimps for electrical connections. This Ring Terminal is designed with an M5 stud size and supports wire sizes ranging from 22 AWG to 16 AWG, identified by the red insulation sleeve. Made of high conductivity copper with tin plating, it ensures excellent conductivity and corrosion resistance.

The PIDG (Pre-Insulated Diamond Grip) design incorporates serrations inside the wire barrel to enhance contact and tensile strength after crimping. The copper sleeve around the barrel offers improved wire insulation support and prevents fraying of wire strands.

The funnelled wire entry facilitates fast and damage-free wire insertion, making the terminal suitable for mass production environments. Featuring a maximum operating temperature of 105°C, this terminal is reliable for use in demanding electrical systems.

It is widely used in applications including industrial instruments, control panels, lighting systems, power supplies, transportation equipment, lifting machines, motors, aerospace, and various electrical appliances. The design meets or exceeds the requirements of MIL-T-7928 Type II Class 1 and 2 standards, ensuring durability and high performance.

Constructed with high conductivity copper for excellent electrical performance. Colour-coded red nylon insulation sleeve for quick wire size identification. Pre-insulated diamond grip (PIDG) barrel provides reliable and uniform crimps.

Wire barrel serrations ensure maximum contact and tensile strength. Funnelled entry prevents wire strand damage during insertion. Suitable for a wide range of industrial and automotive electrical wiring applications. Maximum operating temperature up to 105°C for durable performance.

Complies with many MIL-T-7928, Type II Class 1 and 2 standards. Manufactured with tin-plated copper contact material for corrosion resistance.

This product is made in the United States and supports diverse electrical connection needs across industries. Browse EnvMart's TE Connectivity range for more high-quality electrical components.
