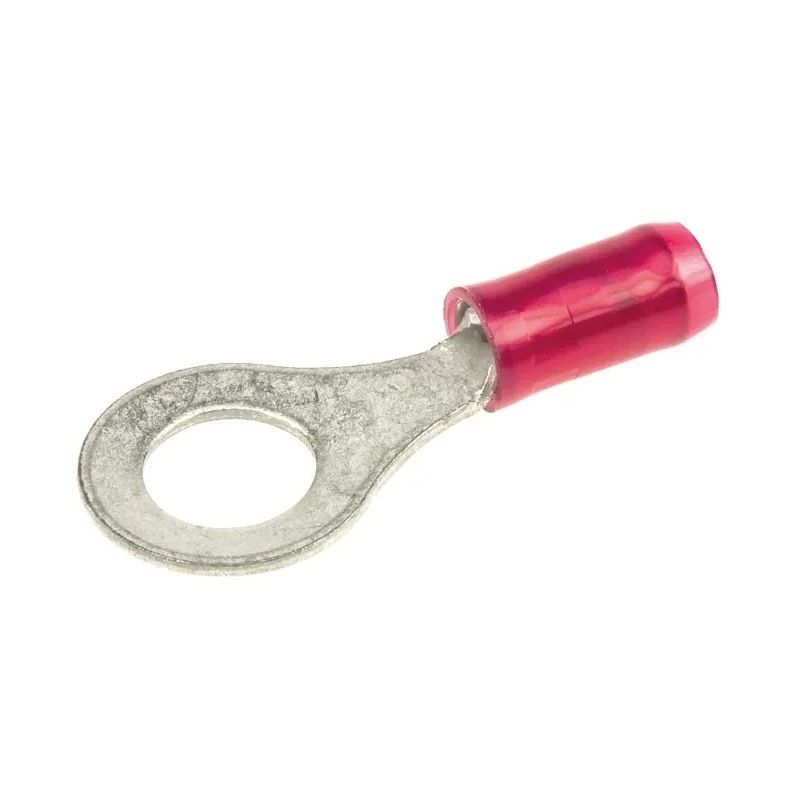

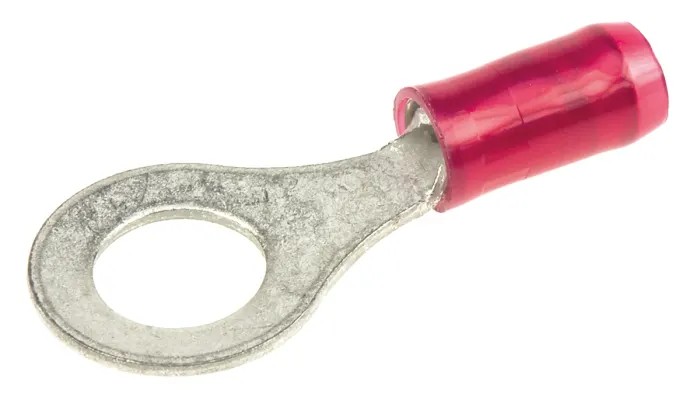

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 22 AWG 16 AWG Wire Size Red 320571

TE Connectivity 320571 PIDG Insulated Ring Terminal is a reliable wire crimp terminal designed with a high conductivity copper body and a red nylon insulation sleeve. This product supports wire sizes from 22 AWG to 16 AWG, with an M6 stud size, and has an overall length of 27.38 mm, making it suitable for varied wiring requirements in industrial and commercial environments.

The ring terminal features a copper sleeve around the wire barrel that enhances insulation support and prevents wire fraying. Serrations inside the barrel provide maximum tensile strength and electrical contact after crimping, ensuring long-lasting connections. The color-coded nylon insulation sleeve aids in quick wire size identification and ensures compatibility with tooling equipment.

Designed with a funnelled wire entry, this terminal allows swift wire insertion, facilitating efficient high-speed production processes. It withstands environments with temperatures up to 105°C, suitable for demanding industrial applications.

These PIDG terminals meet or exceed the requirements of MIL-T-7928, Type II, Class 1 and 2, making them robust for a wide range of applications including instrumentation, control systems, lighting circuits, power supplies, panel boxes, transportation vehicles, lifting equipment, electric motors, aerospace systems, and household appliances.

Constructed with high conductivity copper for optimal electrical performance. Copper sleeve improves wire insulation support, preventing fraying. Serrated barrel ensures strong contact and tensile strength after crimping.

Color-coded nylon insulation aids wire size identification. Funnelled wire entry allows easy and fast wire insertion. Suitable for applications in instrumentation, control, lighting, and aerospace. Complies with MIL-T-7928 standards for reliability.

Manufactured in the United States assuring quality and precision.

This TE Connectivity PIDG Insulated Ring Terminal is ideal for industrial, electronic, HVAC, manufacturing, and automotive wiring tasks requiring durable, consistent, and efficient wire connections. Explore the extensive range of wire terminals and splices in the Electronics & Electricals category at EnvMart for compatible products and solutions.
