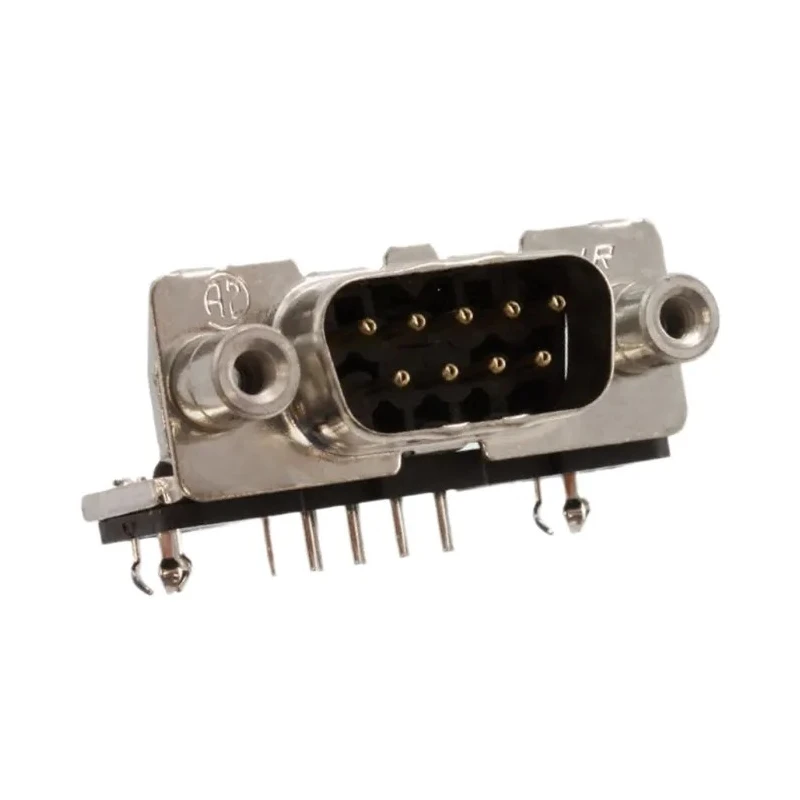

TE Connectivity AMPLIMITE HD-20 D-Sub Connector 9 Way Right Angle 2.74 mm Pitch Through Hole with 4 to 40 UNC 3-338168-2

TE Connectivity model 3-338168-2 is a high-quality AMPLIMITE HD-20 D-Sub Connector designed for industrial and electronic applications requiring durable and reliable connectors. Featuring a 9 way contact configuration with a 2.74 mm pitch, this connector supports a current rating of 6A and is suitable for through hole mounting on printed circuit boards. The right angle orientation facilitates efficient PCB layout and space-saving designs.

The connector housing is fabricated from fibreglass reinforced polybutylene terephthalate, providing high mechanical strength and resistance to thermal and chemical stresses. Contacts are made of copper alloy with gold plating to ensure optimal electrical conductivity and longevity. The solder termination method ensures robust and stable connections to circuit boards.

Operating temperature ranges from -55°C to 125°C, making it suitable for diverse environments including industrial automation, telecommunications, and instrumentation. Mounting hardware includes 4 to 40 UNC threaded inserts, allowing secure fastening to PCBs and mechanical assemblies. This product complies with RoHS regulations, ensuring it meets environmental and safety standards.

The AMPLIMITE HD-20 series connectors are designed with a European standard footprint, allowing interchangeability and straightforward integration in existing designs. They come with a tin-plated steel shell for electromagnetic interference shielding and a black, glass-filled polyester housing for insulation.

The 3-338168-2 model is widely used in industrial, laboratory, manufacturing, and telecommunications applications where reliable connector performance is critical. Its rugged construction and precise manufacturing ensure consistent performance in demanding settings.

Supports 9 contacts for signal transmission. Rated current capacity is 6 amperes. Right angle orientation suitable for PCB mounting. Constructed with fibreglass reinforced polybutylene terephthalate housing. Contact material is gold-plated copper alloy ensuring reliable conductivity.

Termination is solder type for secure connections. Operating temperature range from -55°C to 125°C. Mounting uses 4 to 40 UNC threaded inserts for firm attachment. Compliant with RoHS standards for environmental safety. Part of the AMPLIMITE HD-20 series with European standard footprint.
